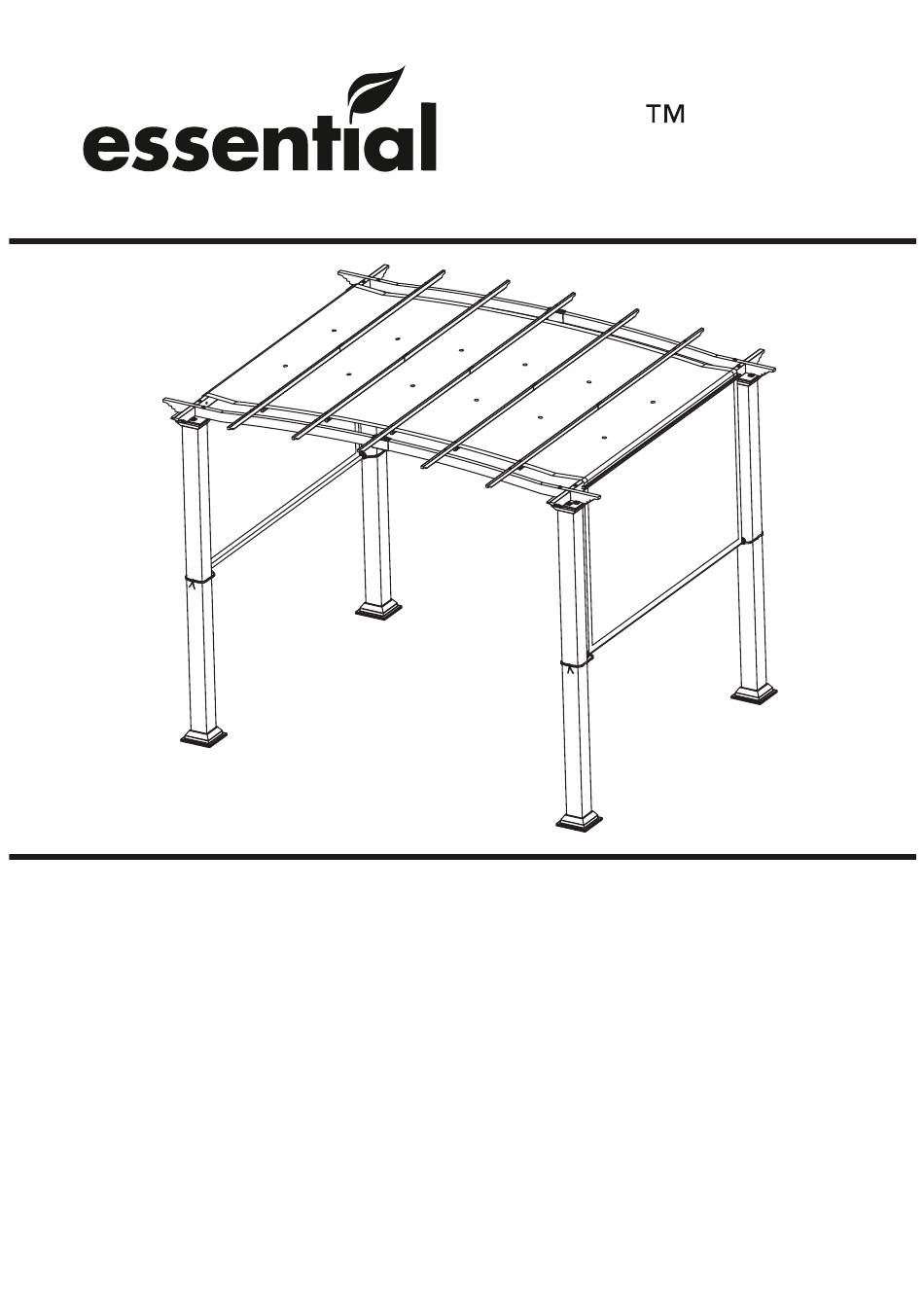

- Page 1 USE AND CARE GUIDE CURVED PERGOLA WITH CANOPY Product code: 0-05605615-3 UPC code: 769455 767028 Vendor Item: S-PG11D1NK Date of purchase: _____/ _____/ _____...
-
Page 2: Table Of Contents
Thank you for your purchase Thank you for your purchase We are pleased that you have chosen Kmart for your outdoor furniture purchase. We hope that you enjoy the unmatched quality, comfort, and style of your new patio set. Every piece is meticulously considered all the way down to the smallest details, exclusively for you, by our world class design team. -
Page 3: Safety Information
Safety Information SET UP YOUR FURNITURE PROPERLY Ensure that all parts are assembled properly and fully tightened as per the instructions. When placing in the desired location, ensure that all legs are resting on the same surface. You may adjust the legs levelers as required to ensure that the item stands in a rigid position. -
Page 4: Care And Maintenance
Care and Maintenance Though its powder-coated finish is rust-resistant, steel is prone to rust over time with exposure to the elements. In case of rust or scratches, lightly sand the affected area and apply touch-up paint. Periodically treat frames with a liquid wax for added protection against UV rays. -
Page 5: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY Read through all the instructions before beginning assembly. Unpack and identify all the parts. Place them on a flat, non-abrasive surface. HARDWARE INCLUDED NOTED: Hardware not shown to actual size. Mi (16) Ma (8 + 1 spare) Lawn Stake Short Countersunk Bolt Mj (2) -
Page 6: Assembly Instructions
Assembly Instructions Package Contents ITEM DESCRIPTION QUANTITY ITEM DESCRIPTION QUANTITY Leg Post Top Crossbar Slim Crossbar Canopy Fabric Slim Crossbar Canopy Side Bar Top Crossbar Canopy Top Bar Top Crossbar Post Base Top Crossbar Base Plate... -
Page 7: Pergola
Assembly Instructions Attaching the top crossbar to the top crossbar Mc x 8 M6 Short Bolt Mg x 8 Small Metal Washer Mm x 2 Connected Plate Repeat procedure for the other pair of crossbars (G&F). Attaching the top crossbar to the top crossbar Mc x 8 M6 Short Bolt Mg x 8... - Page 8 Assembly Instructions Attaching the slim crossbar to the slim crossbar Mc x 10 M6 Short Bolt Mg x 10 Small Metal Washer Repeat procedure for the remaining four pairs of slim crossbars (B&C). Attaching the canopy top bar to the assembled slim crossbars Md x 10 M6 Long Bolt Mg x 10...
- Page 9 Assembly Instructions Attaching the assembled top crossbars to the assembled top crossbars NOTE: The side with the label “inside” should face inside. Repeat procedure for remaining cross bars. Attaching the canopy top bar to the assembled top crossbars Md x 10 M6 Long Bolt Mg x 10 Small Metal Washer...
- Page 10 Assembly Instructions Tightening all bots on the assembled body Mb x 4 Long Countersunk Bolt Repeat procedure for remaining three inside corners. Securely tighten all bolts . Attaching the post base and base plate to the leg post Ma x 8 Short Countersunk Bolt Securely tighten all bolts .
- Page 11 Assembly Instructions Attaching the assembled body to the leg post Me x 16 M8 Short Bolt Mf x 8 M8 Long Bolt Mh x 24 Large Metal Washer Repeat procedure for the remaining three leg posts. Tighten all bolts diagonally. Securing the leg posts to the ground Mi x 16 Lawn Stake...
- Page 12 Assembly Instructions Passing the canopy through slim crossbars Placing the canopy side bar to the canopy and adding the finials into the canopy side bar Mk x 4 Decorative Finial Repeat procedure for remaining side bars and finials.
-
Page 13: Customer Service
Assembly Instructions Fastening all lashings on leg posts Your pergola with canopy is now ready for use! Enjoy! Please refer to part numbers when reordering For questions or comments about product: Call toll-free: 1-800-457-4652 between 9:00 am to 5:00 pm Eastern standard time Monday through Friday or contact us at www.numarkcustomerservice.com Made in / Hecho en CHINA for Kmart Corporation, Hoffman Estates, IL 60179 See our extensive assortment of outdoor living products...
