MAX 250 Hood
Disassembling and Reassembling the hood
MAX 250 Hood

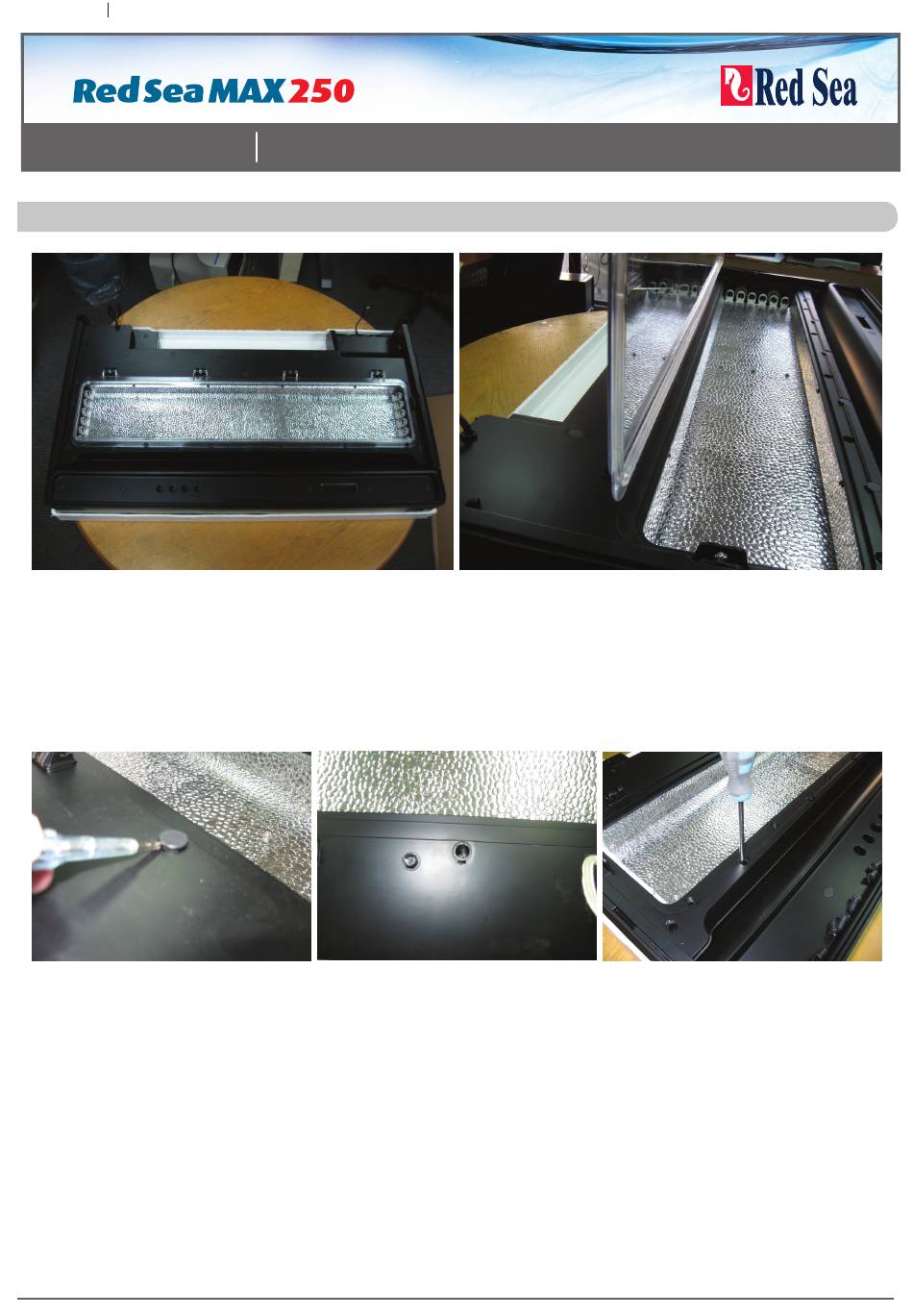

Disassembling the hood
• Place the hood upside down on a flat surface or if available on the original foam packaging.
• Unscrew the 6 lens screws located at the front of the lens.
• Rotate the lens to the upright position and remove from the brackets by pulling the lens towards the front.
• Put the lens in a safe place where it will not get scratched.
• If not already in place, insert all 6 light tubes into the hood.
• Carefully remove the 17 screw covers that hide the screws that hold the top and bottom parts of the Hood together.
• This is best done by using a thin, flat blade screwdriver in the place provided.
• There is no need to remove the screw covers from the Front Cover.
• Unscrew the screws using a Philips screwdriver.
Disassembling and Reassembling the hood
Advertisement
Related Manuals for Red Sea MAX 250
Summary of Contents for Red Sea MAX 250
- Page 1 MAX 250 Hood Disassembling and Reassembling the hood MAX 250 Hood Disassembling and Reassembling the hood Disassembling the hood • Place the hood upside down on a flat surface or if available on the original foam packaging. • Unscrew the 6 lens screws located at the front of the lens.
- Page 2 MAX 250 Hood Disassembling and Reassembling the hood 1. Turn the hood over and place onto a flat smooth surface and collect all of the screws 2. Fold the front cover onto the top of the hood before separating the cover from the chassis 3.
- Page 3 MAX 250 Hood Disassembling and Reassembling the hood AC Circuit Transformer #2 Transformer #1 Ballast #3 Ballast #3 Ballast #2 Transformer #1 Timer Transformer #2 Relays Ballasts Left Front Right Inside the hood DC Circuit...
-
Page 4: Replacing Fans
MAX 250 Hood Replacing fans This guide is intended for use by qualified household electrical appliance technicians only Fan Connectors • Locate the connector for the fan that needs replacing. • Note the direction that the fan is facing. Fans on the left side blow air into the hood, fans on the right suck air out of the hood. - Page 5 MAX 250 Hood Reassembling the hood MAX 250 Hood Disassembling and Reassembling the hood Reassembling the hood Warning: Ensure that the power cord is disconnected from the electrical supply. • Place the hood cover over the chassis. • Align the dove-tail connectors on the left and right sides at the rear of the hood and firmly push the parts together.
