Summary of Contents for SPORTSBEAMS LED 800

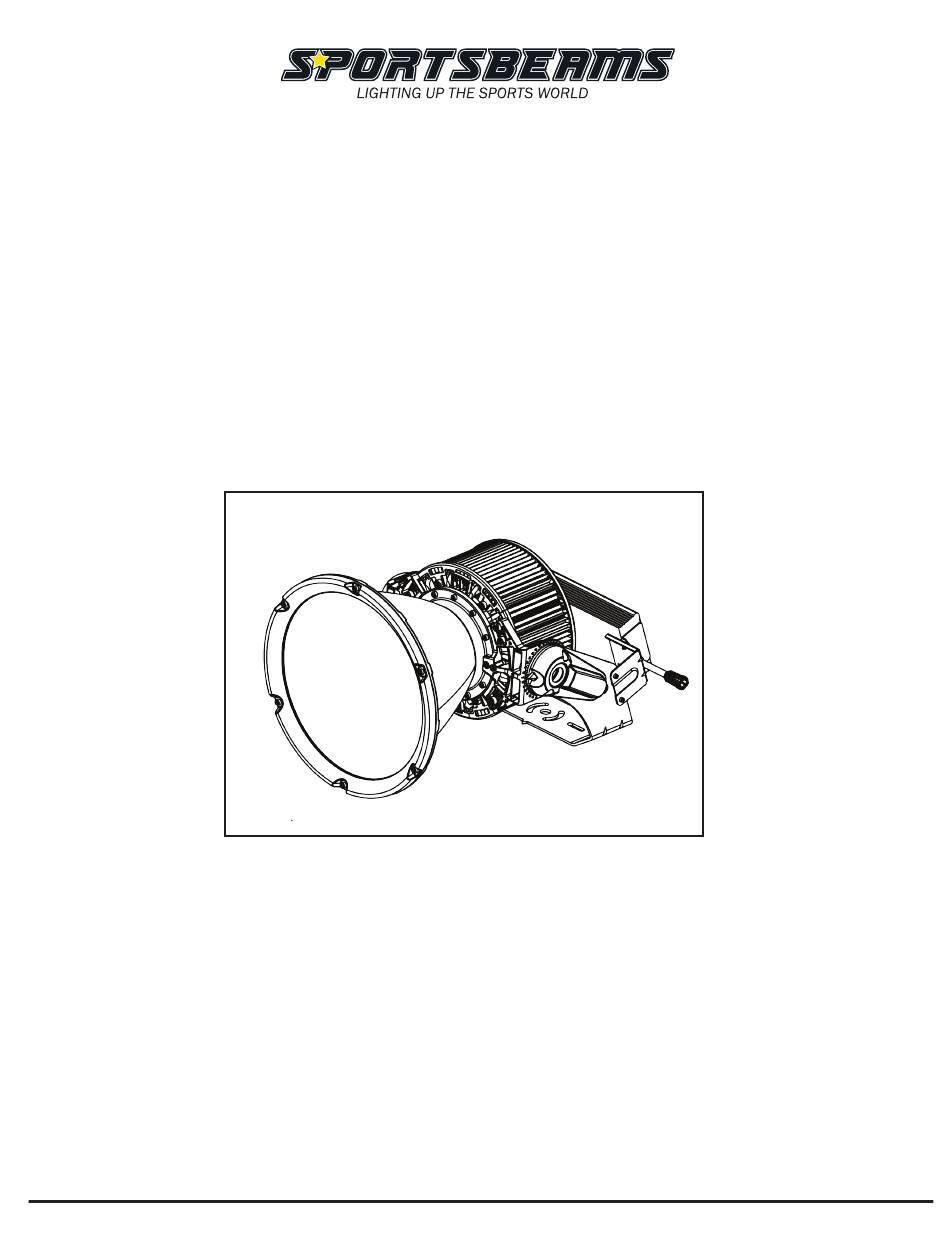

- Page 1 SPORTSBEAMS LED 800 USER MANUAL v.1.1 SPORTSBEAMS LIGHTING, INC. 1.888.905.6680 | WWW.SPORTSBEAMS.COM...
-
Page 2: Table Of Contents
Power DIstribution Control Box ..................11 Incoming/Outgoing Connections ..................12 Indoor Control Topography ....................13 Outdoor Control Topography ....................14 Control System Overview ....................15 EMERGENCY CIRCUIT DIAGRAM ....................16 CARE & MAINTENANCE .......................17 TROUBLESHOOTING ........................18 SUPPORT .............................19 SPECIFICATIONS .........................20 SPORTSBEAMS LIGHTING, INC. 1.888.905.6680 | WWW.SPORTSBEAMS.COM... -
Page 3: Introduction
Thank you for choosing Sportsbeams —The nest sports lighting xture available. Unlike traditional sports lighters, the Sportsbeams LED 800 is a sophisticated and intelligent light that will change the way you view night time activies. With proper installation, care and maintenance, the 800 will provide high quality lighting for years to come. -
Page 4: Safety Warnings
1. All electrical work must conform to the National Electric Code (NEC) and all applicable local codes and ordinances. 2. Sportsbeams lighting should only be installed by quali ed personnel. Please ensure that you have veri ed the safety of any existing power distribution systems before beginning installation. -
Page 5: Power Requirements
ELECTRICAL REQUIREMENTS POWER REQUIREMENTS Sportsbeams xtures always include a driver. While it’s possible that another driver may work with our xture, using any driver besides the one speci cally designed and engineered by Sportsbeams will VOID THE WARRANTY on this xture. -
Page 6: Standard Installation
INSTALLATION & AIMING The Sportsbeams Chromabeams LED 800 Fixture can be mounted on top of a mounting structure or underneath. The mounting structure may be a light pole cross arm, an indoor catwalk bracket, or other structural component that will hold the xture rmly in place and ensure enough clearance to adjust xture for the correct beam angle. -
Page 7: Aiming The Fixture
AIMING DIAGRAM SAMPLE AIMING DIAGRAM DETAIL Sportsbeams will provide a precise aiming diagram for The aiming diagram will give precise aiming numbers for quick aiming of xtures before the pole is lifted. every single xture. -
Page 8: Alternate Yoke Aiming
ALTERNATIVE YOKE STYLE AIMING Because of Sportsbeams’s advanced cooling technology, our xture can be mounted in any direction, at any angle. As long as air is not blocked from reaching the intakes around the top of the light and nothing is blocking the output of air from the back of the light, this xture can be freely mounted at any angle. -
Page 9: Connecting The Fixture
Pole length network cable provided by Sportsbeams Power Distribu�on & Control Box Plug the waterproof RJ-45 connector on the network cable provided by Sportsbeams into the back of the fixture for the data connec�on SPORTSBEAMS LIGHTING, INC. 1.888.905.6680 | WWW.SPORTSBEAMS.COM... -
Page 10: Powering The Fixture
POWERING THE FIXTURE Never connect the Sportsbeams 600 LED Fixture to an electrical system that is not grounded. Installing a xture in an ungrounded electrical system could allow the metal housing to become energized in the event of an electrical short, resulting in the risk of electrical shock for anyone who comes into contact with the xture. -
Page 11: Standard Wiring Diagrams
208V 3-PHASE BLACK DATA ONSITE POWER BOX INTELLIBEAM POWER DISTRIBUTION & CONTROL NODE IP-67 POWER SUPPLY INDIVIDUAL POWER BRANCHES NEUTRAL BLACK GROUND GROUND UP TO 24 INTELLIBEAM LIGHT SERVER INTELLIBEAM CONTROL ROUTER SWITCH BOARD INTERNET/INTRANET SPORTSBEAMS LIGHTING, INC. 1.888.905.6680 | WWW.SPORTSBEAMS.COM... -
Page 12: Site Power Distribution
STANDARD SITE POWER DISTRIBUTION Overview: Sportsbeams can provide a proposed panel summary that calculates the total electrical load for a eld or entire site and provides a recom- mended breaker size per circuit. Power from each circuit should be delivered to the power distribution box mounted on a pole or at a speci c location. Each xture is then wired to individual breakers inside power distribution control box provided by Sportsbeams. -
Page 13: Power Distribution Control Box
DC24V Power Supply Master Control Breaker Neutral Bar Ground Bar Surge Protection Device Connecting Terminal Breakers ETH2DMX Controller Network Switches Fiber Converter Cable Restraint Fiber Splice Tray Distribution Box Components (TYPICAL 44H” X 22W” X 10.25D”) SPORTSBEAMS LIGHTING, INC. 1.888.905.6680 | WWW.SPORTSBEAMS.COM... -
Page 14: Incoming/Outgoing Connections
Incoming Connections Outgoing Connections Fiber 480V to 208V AC Power Outgoing Fiber Power to Fixtures Emergency Switched Ethernet to Fixtures Constant Normal Bypass Contactor Contractor to wire incoming power, ber, ethernet and individual xtures SPORTSBEAMS LIGHTING, INC. 1.888.905.6680 | WWW.SPORTSBEAMS.COM... -
Page 15: Indoor Control Topography
INSTALLATION & AIMING INDOOR CONTROL TOPOLOGY CONTROL BOX SPORTSBEAMS LIGHTING, INC. 1.888.905.6680 | WWW.SPORTSBEAMS.COM... -
Page 16: Outdoor Control Topography
INSTALLATION & AIMING OUTDOOR CONTROL TOPOLOGY POWER DISTRIBUTION BOXES FIBER OR ETHERNET 120V/208V/240V/ 277V/480V SPORTSBEAMS LIGHTING, INC. 1.888.905.6680 | WWW.SPORTSBEAMS.COM... -
Page 17: Control System Overview
AND RESPONDS INSTANTLY breakers and digital switches takes place in the Power box. DETAILS: Each xture has its own MAC address. An ethernet cable is run from each xture to the switch inside the control box. SPORTSBEAMS LIGHTING, INC. 1.888.905.6680 | WWW.SPORTSBEAMS.COM... -
Page 18: Emergency Circuit Diagram
1. In the event that main power is lost control signals stop, but the ALCR will ensure that generator/backup power is fed to the xture. 2. If the xture does not receive control (DMX) signals for 0.5s or longer, the xtures automatically turn on 100% full white. SPORTSBEAMS LIGHTING, INC. 1.888.905.6680 | WWW.SPORTSBEAMS.COM... -
Page 19: Care & Maintenance
Turn off power before performing any electrical or control work. FAILURE TO FOLLOW THIS WARNING MAY LEAD TO DEATH, SEVERE INJURY, OR PROPERTY DAMAGE. DO NOT make or alter any open holes in the luminaire. Do not modify the luminaire. SPORTSBEAMS LIGHTING, INC. 1.888.905.6680 | WWW.SPORTSBEAMS.COM... -
Page 20: Troubleshooting
Crossed wires or a supply wire is grounding out breaker trips Improperly sized fuse or Refer to minimum fuse ratings breaker CUSTOMER SUPPORT Please call Sportsbeams Customer Service at 888.905.6680 for any questions or concerns. SPORTSBEAMS LIGHTING, INC. 1.888.905.6680 | WWW.SPORTSBEAMS.COM... -
Page 21: Specifications
SPECIFICATIONS SPECIFICATIONS General Power Supply NEMA FIELD LED 800 Voltage range INPUT Single Phase 176V-305V Frequency range 45-66 Hz BEAM TYPES NEMA2, NEMA3, NEMA4, NEMA5 >0.95 @ 277V APPLICATION Indoor/Outdoor Sports Lighting <15% IP GRADE IP66 Inrush current <30A AMBIENT TEMPERATURE -40˚F to +155˚F... - Page 22 Warranties and Limitation of Liability Please refer to www.sportsbeams.com/warranty for our terms and conditions. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause unde- sired operation.
