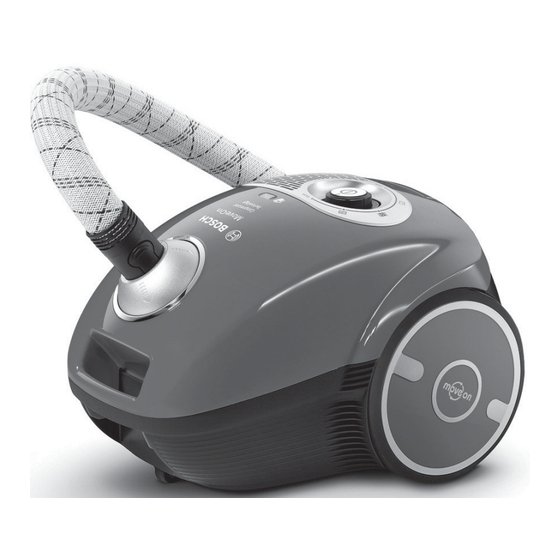

Bosch BGL 35 Series Operating Instructions Manual

Hide thumbs Also See for BGL 35 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Moodpic 1
63,2 x 50,25mm
CMYK & GREY
Register your new Bosch now:
Register your n
Register your new Bosch now:
r new Bosch now:
www.bosch-hom
www.bosch-home.com/welcome
www.bosch-home.com/welcome
home.com/welcome
Moodpic 2
98,6 x 46,7mm
CMYK & GREY
B
G
L 3
5
. .
.
en
Operating instructions

Advertisement

Table of Contents
loading

Related Manuals for Bosch BGL 35 Series

Summary of Contents for Bosch BGL 35 Series

  • Page 1 Moodpic 1 63,2 x 50,25mm CMYK & GREY Register your new Bosch now: Register your new Bosch now: Register your n r new Bosch now: www.bosch-home.com/welcome www.bosch-home.com/welcome www.bosch-hom home.com/welcome Moodpic 2 98,6 x 46,7mm CMYK & GREY L 3 Operating instructions...

  • Page 2: Table Of Contents

    GA_8001 061 296_GL35 17.03.2017 13:49 Seite 2 Table of content Intended use ........4 Safety information .
  • Page 3 GA_8001 061 296_GL35 17.03.2017 13:49 Seite 3 Table of content Dismantling ........23 Removing the flexible hose .

  • Page 4: Intended Use

    GA_8001 061 296_GL35 17.03.2017 13:49 Seite 4 Safety information Congratulations on your purchase of the Bosch GL35 vacuum cleaner. You should only use original Bosch accessories, which have been specially developed for your vacuum cleaner, in order to achieve the best possi- ble vacuuming results.

  • Page 5: Safety Information

    GA_8001 061 296_GL35 17.03.2017 13:49 Seite 5 Safety information Spare parts, accessories, dust bags Our original spare parts, original (special) accessories and original dust bags are designed to work with the features and requirements of our vacuum cleaners. We therefore recommend that you only use our original spare parts, ori- ginal (special) accessories and original dust bags.

  • Page 6: Proper Use

    GA_8001 061 296_GL35 17.03.2017 13:49 Seite 6 Safety information Cleaning and user maintenance must never be carried out by children without supervision. Plastic bags and films must be kept out of the reach of children before disposal. => Risk of suffocation. Proper use Only connect and use the vacuum cleaner in accordan- ce with the specifications on the rating plate.
  • Page 7 GA_8001 061 296_GL35 17.03.2017 13:49 Seite 7 Safety information When the cable is being automatically rewound, ensu- re that the mains plug is not thrown towards persons, body parts, animals or objects. => Use the mains plug to guide the power cord. Pull out the mains plug before carrying out any work on the vacuum cleaner.
  • Page 8 GA_8001 061 296_GL35 17.03.2017 13:49 Seite 8 Safety information ! Please note The mains socket must be protected by at least a 16 amp cir- cuit breaker. If a circuit breaker is tripped when you switch on the vacuum cleaner, this may be because other electrical appliances which have a high current draw are connected to the same power cir- cuit.

  • Page 9: Notes On The Energy Label

    GA_8001 061 296_GL35 17.03.2017 13:49 Seite 9 Notes on the energy label This vacuum cleaner is a general purpose vacuum cleaner with a primary hose. To achieve the declared energy efficiency and cleaning performance class on carpet and hard floor, please use the interchangeable universal nozzle.

  • Page 10: Your Vacuum Cleaner

    GA_8001 061 296_GL35 17.03.2017 13:49 Seite 10 Your vacuum cleaner...
  • Page 11 GA_8001 061 296_GL35 17.03.2017 13:49 Seite 11 Your vacuum cleaner Adjustable floor tool with Carrying handle locking collar Storage aid (on Telescopic tube underside of appliance) Flexible hose Dust bag compartment Hose hand grip Dust bag change Power cord indicator Parking aid On/off button and power controller...

  • Page 12: Special Accessories

    GA_8001 061 296_GL35 17.03.2017 13:49 Seite 12 Special accessories A Hard floor tool BBZ123HD For vacuuming hard floors (parquet, tiles, terracotta, etc.)

  • Page 13: Replacement Parts

    Only by using high- quality dust bags (such as Bosch original dust bags) can you ensure that your vacuum cleaner is working at the energy efficiency class, dust pick-up rate and dust retention capacity listed on its EU energy label.
  • Page 14 GA_8001 061 296_GL35 17.03.2017 13:49 Seite 14 Replacement parts C Motor protecting filter Replacement part no.: 00577117 Protects the motor in your vacuum clea- ner and thus increases its service life. D HEPA-filter Replacement part no.: 00576833 Additional filter for cleaner exhaust air. Recommended allergy sufferers.

  • Page 15: Initial Use

    GA_8001 061 296_GL35 17.03.2017 13:49 Seite 15 Initial use Putting the handle and the flexible hose together Figure ● Push the hand grip onto the flexible hose and lock it in place. Click! Inserting the flexible hose Figure ● Push the flexible hose adapter into the air intake opening in the vacuum cleaner lid until it locks in place.

  • Page 16: Inserting The Telescopic Tube Into The Floor Tool

    GA_8001 061 296_GL35 17.03.2017 13:49 Seite 16 Initial use Inserting the telescopic tube into the floor tool Figure ● Push the telescopic tube into the connecting piece of the floor tool Click! until it locks in place. Adjusting the telescopic tube Figure ●...

  • Page 17: Connecting The Appliance

    GA_8001 061 296_GL35 17.03.2017 13:49 Seite 17 Initial use Connecting the appliance Figure ● Holding the power cord by the plug, pull out to the required length and insert the plug into the mains socket.

  • Page 18: Switching On /Off

    GA_8001 061 296_GL35 17.03.2017 13:50 Seite 18 Initial use Switching on and off Figure ● Press the ON/OFF button in the direction of the arrow to switch your vacuum cleaner on. Controlling the suction level Figure Turn the rotary control to infinite- ly adjust the suction level to the level required.

  • Page 19: Vacuuming

    GA_8001 061 296_GL35 17.03.2017 13:50 Seite 19 Vacuuming ! Please note: Floor tools are subject to a certain amount of wear, depending on the type of hard floor you have (e.g. rough, rustic tiles). Therefore, you must check the underside of the floor tool at regular intervals.

  • Page 20: Vacuuming With Accessories

    GA_8001 061 296_GL35 17.03.2017 13:50 Seite 20 Vacuuming Vacuuming with accessories Figure ● Attach the nozzles to the suction pipe or handle as required: Crevice nozzle (only for BGL35MOV21) a) Crevice nozzle for vacuuming crevices and corners, etc. Upholstery nozzle b) Upholstery nozzle for vacuuming upholstered furniture, curtains, etc.

  • Page 21: Parking Aid

    GA_8001 061 296_GL35 17.03.2017 13:50 Seite 21 Vacuuming Parking aid Figure ● You can use the parking aid on the back of the vacuum cleaner if you wish to stop vacuuming for a short time. ● Once you have switched off the appliance, slide the hook on the floor tool into the recess on the rear of the appliance.

  • Page 22: When The Work Is Done

    GA_8001 061 296_GL35 17.03.2017 13:50 Seite 22 When the work is done Disconnecting the appliance Figure ● Pull out the mains plug. ● Briefly pull the power cord and release (The power cord rewinds automatically). Storing and transporting Figure To store/transport the appliance, you can use the storage aid on the underside of the appliance.

  • Page 23: Dismantling

    GA_8001 061 296_GL35 17.03.2017 13:50 Seite 23 Dismantling Removing the flexible hose Figure • To remove the flexible hose, press the two catches together and pull out the hose. Disconnecting handle and telescopic tube Figure • To release the connection, press the locking collar and pull out the telescopic tube.

  • Page 24: Changing The Filter

    GA_8001 061 296_GL35 17.03.2017 13:50 Seite 24 Changing the filter Please note: Always switch off the appliance before changing the filter. Replacing the bag Figure ● If the dust bag change indicator in the lid is filled completely when the floor tool is lifted from the floor with the highest suction level selected, the dust bag must be changed, even though it may not...

  • Page 25: Changing The Dust Bag

    GA_8001 061 296_GL35 17.03.2017 13:50 Seite 25 Changing the filter Changing the dust bag You can order a new dust bag from our after-sales service using the fol- lowing replacement part number: 00577549. Figure Seal the dust bag by pulling the ●...

  • Page 26: Changing The Motor Protection Filter

    GA_8001 061 296_GL35 17.03.2017 13:50 Seite 26 Changing the filter Changing the motor protection filter Figure Open the dust bag compartment ● lid. Figure Release the motor protection fil- ● ter from the catch by pulling it sideways, and pull it out in the direction of the arrow Dispose the old motor protection ●...

  • Page 27: Replacing The Hepa Filter

    GA_8001 061 296_GL35 17.03.2017 13:50 Seite 27 Changing the filter Your HEPA filter generally washable, but we recommend changing filter more hygienic handling. Replacing the HEPA filter If your vacuum cleaner is equipped with a HEPA filter, this should be replaced once a year.

  • Page 28: Care

    GA_8001 061 296_GL35 17.03.2017 13:50 Seite 28 Care Always switch off the vacuum cleaner and disconnect it from the mains before cleaning the vacuum cleaner. The vacuum cleaner and plastic accessories can be cleaned with a commercially available plastic cleaner. Caution: Do not use a scourer, glass-cleaning agent or all-purpose cleaning product.

  • Page 29: Disposal

    GA_8001 061 296_GL35 17.03.2017 13:50 Seite 29 Disposal This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electro- nic appliances (waste electrical and electronic equipment - WEEE). The gui- deline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

  • Page 30: Malfunctions

    GA_8001 061 296_GL35 17.03.2017 13:50 Seite 30 Malfunctions In the following cases, you must stop the appliance immediately and contact the after-sales service: If the power cord is damaged. If you have accidentally vacuumed up some liquid or liquid has entered the inside of the appliance;...

  • Page 31: Costumer Service

    Milton Keynes MK12 5PT To arrange an engineer visit, to order spare parts and accessories or for product advice please visit: www.bosch-home.co.uk or call Tel.: 0344 892 8979* *Calls are charged at the basic rate, please check with your telephone service...

  • Page 32: Conditions Of Guarantee

    GA_8001 061 296_GL35 17.03.2017 13:50 Seite 32 Conditions of guarantee For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the applian- ce was purchased.
  • Page 33 GA_8001 061 296_GL35 17.03.2017 13:50 Seite 33...
  • Page 34 GA_8001 061 296_GL35 17.03.2017 13:50 Seite 34...
  • Page 35 GA_8001 061 296_GL35 17.03.2017 13:50 Seite 35...
  • Page 36 GA_8001 061 296_GL35 17.03.2017 13:50 Seite 36 Robert Bosch Hausgeräte GmbH Carl-Wery-Str. 34 81739 München Germany www.bosch-home.com 8001061296 970316 9000 897 085 – 06/13...
