Summary of Contents for Dyne Telecom DN464

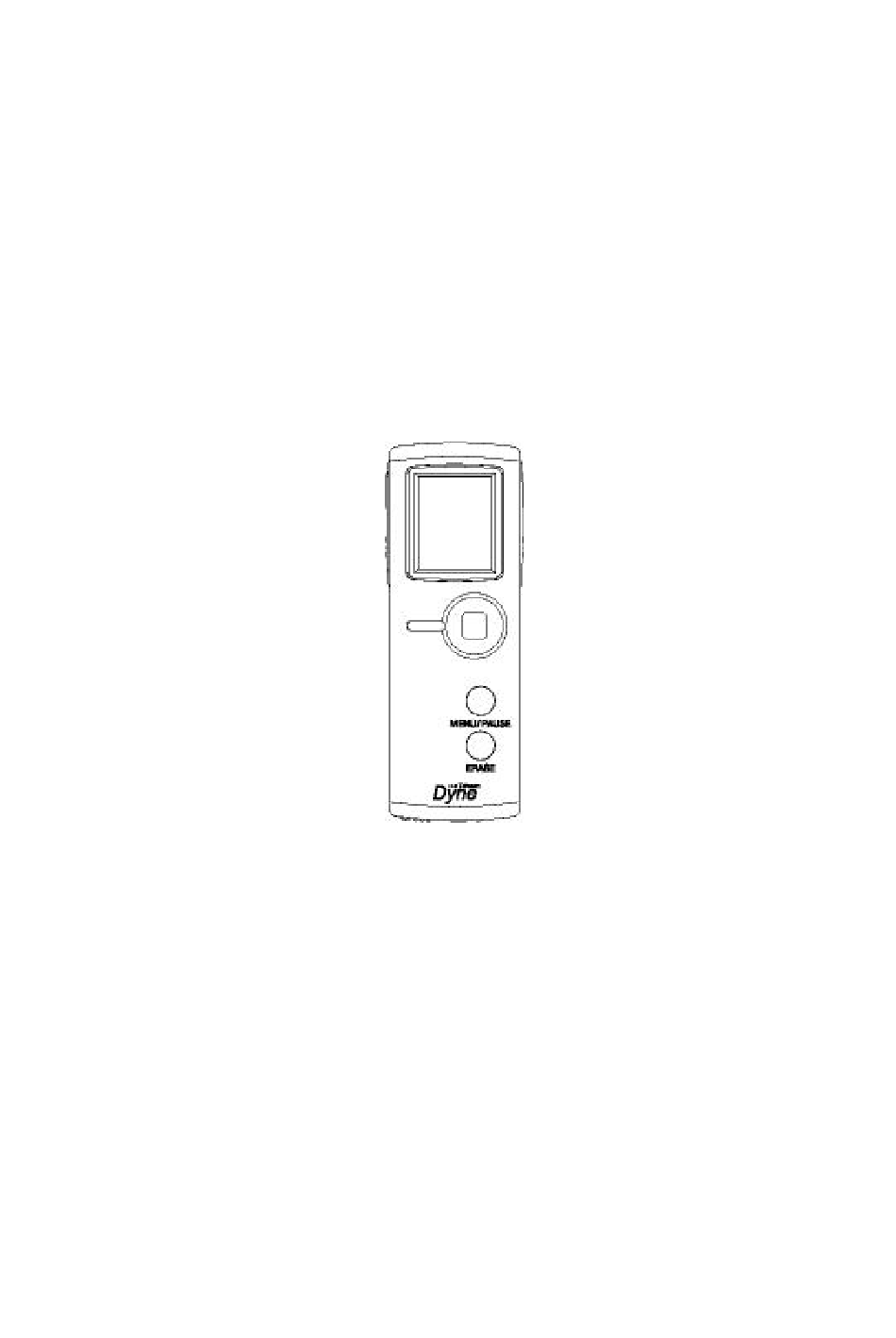

- Page 1 Digital Voice Recorder User Manual DN464 / DN4128 DYNE TELECOM CO., LTD.
- Page 2 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICES MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE, RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUS E UNDERSIRED OPERATION.
- Page 3 Features ● Long Time Recording Maximum 1100 minutes recording. (64MB) ● MP3 Playback Record and playback the digital music. ● Digital Interface Edit, store and E-mail the recorded contents through PC. ● Repeating You can repeatedly listen to the sections as you want. ●...
-
Page 4: Table Of Contents
Contents Preparing Description of the unit Insert battery Connect DC adaptor Basic Functions Selecting Voice Recorder / MP3(Music) mode Adjusting the Volume How to set the Menu 1 . V o ice R eco rde r Recording Playback Erasing the Message 2 . -
Page 5: Preparing
Preparing Description of the U nit F ron t W ind ow Display Folder No. Repea Battery Life Voice Recorder Lock mode mode MP3 mode Window Display Setting Alarm Section Repeat Jog Button ROCK mode (Volume/Repeat/ Playing LED REW/FF) JAZZ mode Recording LED MENU/PAUSE CLASSIC mode... -
Page 6: Insert Battery
Insert Battery 1. Open the battery cover. ● Pushing cover, and slide it off as following arrow direction. 2. Insert the battery noting the correct polarity and close the cover. ● The current time is shown. To set the current time, refer to page __. 3. -
Page 7: Adjusting The Volume
If yo u d o n ot press any bu tto n o ve r a m inu te , th is un it w ill be autom atically o ff and sho w pre sen t tim e. W e ca ll it " stan d- by " m o de . Adjusting the Volu me You can adjust the volume level from 0 to 30. -
Page 8: Playback
Playback 1. Press of jog button, and select recording No. to play. 2. Press PLAY/STOP button. ● Playing time is displayed and playing is started. 3. To stop playing, press PLAY/STOP button again. To pause Recording / Playback To pause recording or playing, press MENU/PAUSE button during recording or playback. -
Page 9: Erasing The Message
Start of the section End of the section Erasing the Message 【E rasing o ne re co rde d m e ssag e 】 1. Select the message to erase by pressing of jog button. 2. Select 'On' by pressing ERASE button at least 3 seconds. ●... -
Page 10: Mp3 Player
※ Cau tio n O nce e rased m essag es ne ve r b e resto re d. Ch eck be fore e rasin g. MP3 Player Playback 1. Select the MP3 file number pressing of jog button. 2. Press PLAY/STOP button. ●... -
Page 11: How To Use The Men U
- A L(ALL) : Erasing all MP3 files. 3. Press ERASE button again. ● “ Ok” is shown and selected file is erased. ● After erasing, the number of MP3 file is arranged automatically. [To erase all M P 3 files] 1. -
Page 12: Voice Recorder
● Each time you press MENU/PAUSE button, the 'Menu' will be changed as bellow. - VOICE mode (stand-by mode) In order of M O d → REP → VOR → MIC → LOCK → FILE → H E A R → A R M → d A T E - VOICE mode (playback) In order of REP - MP3 mode (stand-by mode) - Page 13 continuously Setting the VOR Recording VOR(Voice Operating Record) function is that the unit records only when the sound exists. 1. Select VOR mode in menu. ● 'VOR: oF' is shown. 2. Select ON or OF by pressing ＋ , ━ of jog button. ●...
- Page 14 The locked messages is N O T erased. Setting the FILE 1. Select FILE mode in menu. ● ‘ FILE: A’ is shown. 2. Press ＋ , ━ of jog button to select the FILE to record. ● Each time you press the jog button, A → B → C → D comes on in order. 3.
-
Page 15: Mp3 Player
MP3 Player Selecting the Sou nd Mode 1. Select EQ mode in menu. ● "EQ: oF" or "ROCK, JAZZ, CLASS1" is shown. 2. Select the desired sound mode by controlling ＋ . ━ of jog button. ● Each time you press the jog button, oF → R O C K → JAZZ → CLASS1 comes on in order. 3. -
Page 16: Connecting To The External Device
Connecting to the External Device Connecting to the External Microphone You can easily record the message by using the external microphone. 1. Connect the external microphone to the MIC terminal of the voice recorder. 2. Press REC/STOP button. ● It starts recording. 3. - Page 17 System Requirements: ● Computer: Pentium or higher, IBM compatible, USB port support ● Memory: Above 64M ● Operating System: Windows 98 / Me / 2000 / XP ● Hard Disk: 100M or bigger empty space ● For playing: Sound Card, Speaker ●...
- Page 18 Specifications Model DN-432 DN-464 DN-4128 Built-in Flash Memory 32MB 64MB 128MB Recording Time(SP/HQ/SHQ) 265Min/130Min/65Min 550Min/265Min/135Min 1100Min/530Min/265Min Max. number of recording 396 Messages (4 folders) Dimensions (L x W x D) 78 x 28 x 14mm Weight 33g (excluding battery) Power Requirements DC 1.5V (AAA battery 1EA) Recording: about 5 hours, Battery Life...
