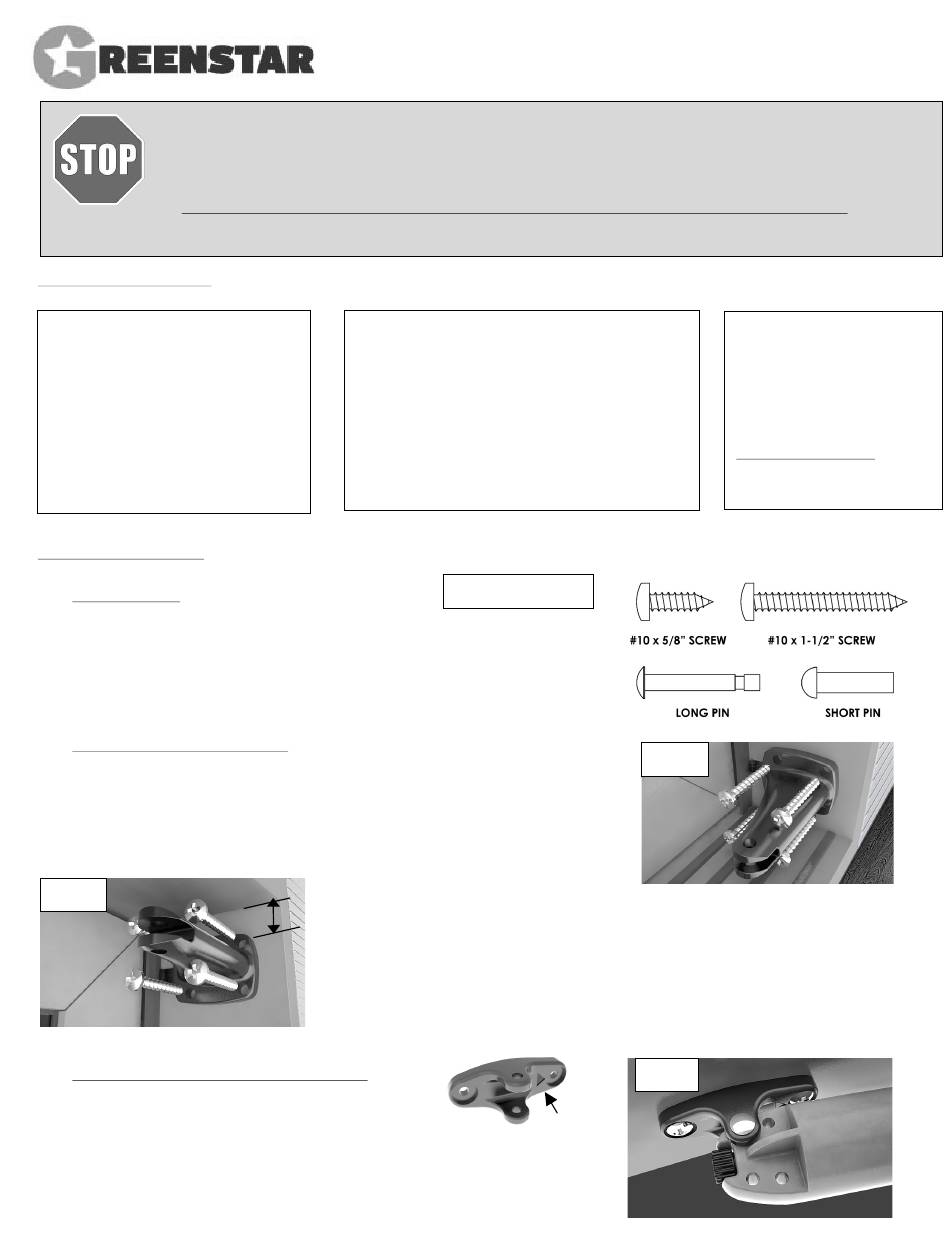

GREENSTAR Touch 'n Hold Smooth Installation Instructions

ATTENTION! HOLD OPEN FEATURE WILL ENGAGE THE FIRST TIME THE ROD IS
Operating the Touch 'n Hold
1. Press Button: Door Stays Open

Hardware Included

Single kits include:
• 4 - #10 x 1x1/2" screws
• 2- #10 x 5/8" screws
• 1- Short pin
• 1- Long pin
• Short Yellow Spacer
• Jamb Bracket
• Door bracket

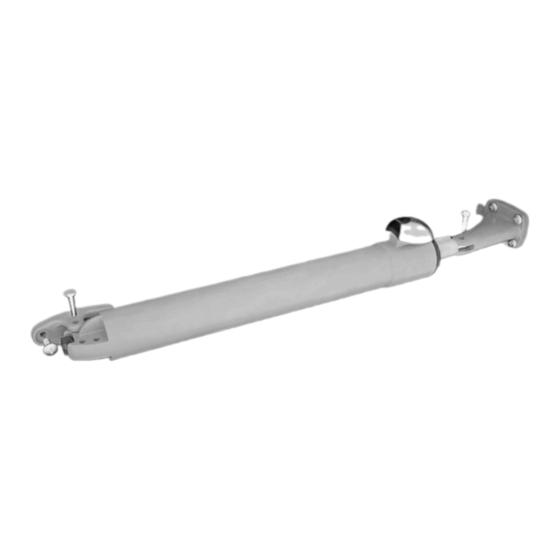

• Touch n Hold TM Smooth closer

INSTALLATION

1) Preparation

The screw pack contains Fig.1:
•
8 - #10 x 1-1/2" screws
• 4 - #10 x 5/8" screws
• 2 - short pins
•
2 - long pins

2) Install the jamb bracket

Locate the positioning tab on the jamb bracket. Place the bracket so this tab butts up against the
door. Using a pencil, mark your door jamb at each of the four jamb bracket screw holes. Drill 1/8"
pilot holes on the marks. Fasten bracket to jamb with four #10 x 1-1/2" screws, per Fig.2.
Fig. 3
Fig
3) Install the door bracket & closer

3.1) Attach the door bracket to the closer

Using the long pin, secure the door bracket to the outer hole of the
closer as shown in Fig. 4. Make sure that the arrow on the bracket is pointing back
towards the closer (to the hinge side of the door).
Pg. 1
Touch 'n Hold Smooth
PULLED OUT DURING INSTALLATION. DO NOT PUSH THE BUTTON TO
RELEASE THE HOLD OPEN FEATURE. SIMPLY PULL ROD FARTHER OUT.
Dual kits include:
•
•
•
•
•
•
•
•
•
To see installation video, visit:
Tools required:
• Power drill with a 1/8" drill bit
• No.2 Phillips screwdriver
• Pencil
~1"
Note:
Closer can be located anywhere on the door. For dual kits, follow
these additional instructions.
Top Closer: Locate jamb bracket about 1" down from the top of the door. (Fig. 3)
Bottom Closer: Locate jamb bracket about 1" above the door expander if possible. Bottom
®
(FOR SINGLE AND DUAL KITS)
Push-Button Hold Open Feature
®
2. Push Door Farther Open: Door Closes
All of the hardware included with single kit &
4- #10 x 1x1/2" screws
2- #10 x 5/8" screws
1- Short pin
1- Long pin
Long Yellow Spacer
Jamb Bracket
Door bracket
Closer (no button)
touchnholddoorclosers.com/how-to-install
Fig. 1 Full Scale
Fig
closer may need to be positioned over the door expander in some cases.
Arrow
Installation Instructions
Any questions – contact:
email: info@touchnhold.com
phone: 1-866-TH-Closer
www.touchnhold.com
Fig. 2
Fig
Fig. 4
Fig
(1-866-842-5673)
INS-GS-SK-E rev A
