- Page 1 Operation and Maintenance Instructions Operation and Maintenance Instructions for EC Aura 230V Document no 210-OMI10013-40 Issue 5 COOL500EC-230 Part No: Manufacturer: ebm-papst UK Ltd Stationary class 1 motor operated appliance with a fixed supply cord...
-
Page 2: Table Of Contents
Take back policy ..................7 Data sheet ....................9 Certificate of Conformity ..............10 Figure 1 - EC Aura ..............4 Figure 2 – As supplied; converter plug fitted ......5 Figure 3 – loosening of screws of converter plug ...... 5 Figure 4 –... -
Page 3: Safety Notice
1. Safety Notice WARNING Danger of Electric Shock The separate, supplied loose, connection converter plug must be assembled correctly to avoid an electric shock. Refer to Section 3 for fitting and use of the converter plug OTHER HAZARDS Do not leave under 14 years old children near the appliance unsupervised when appliance is in operation ... -
Page 4: Specification

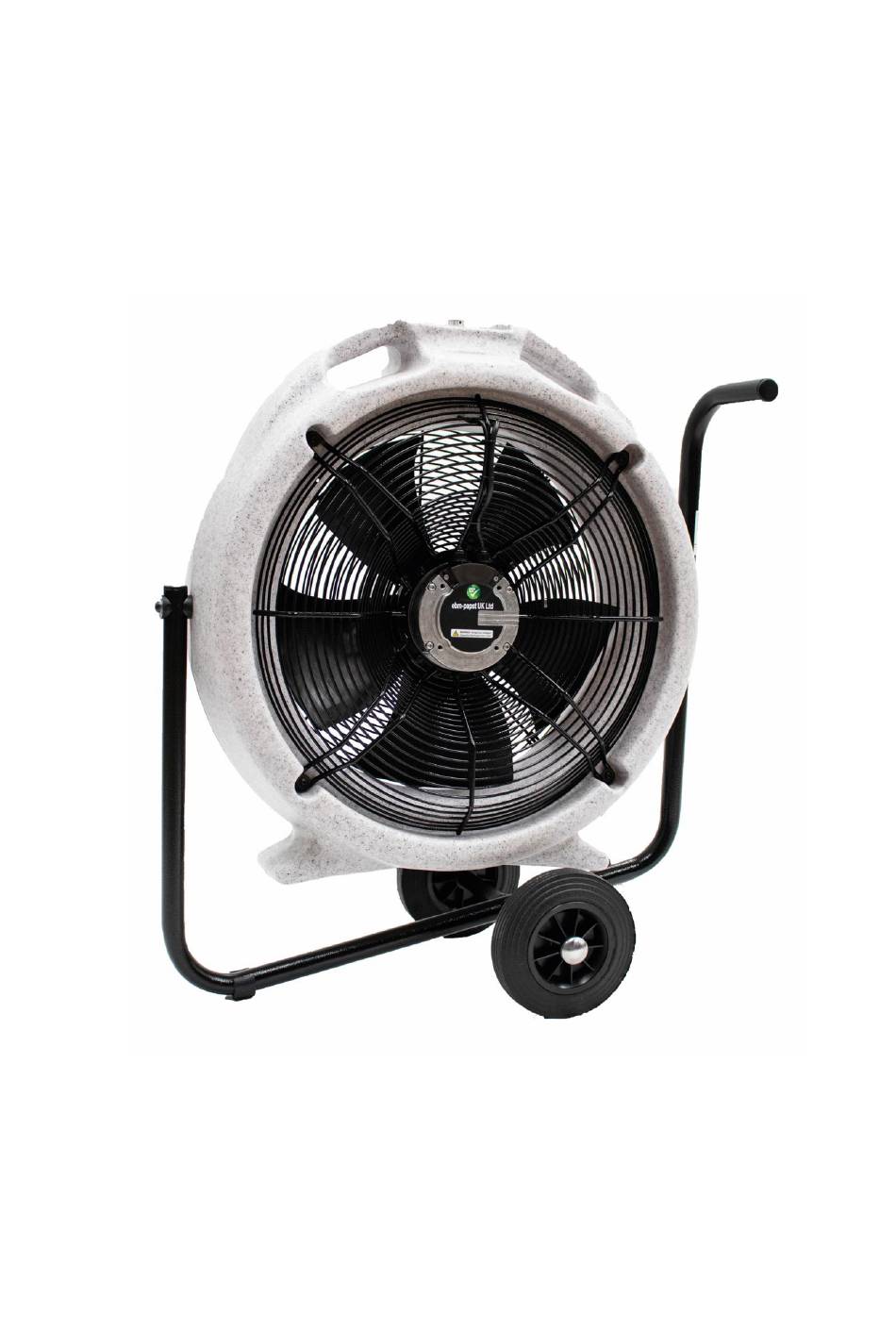

Protection: IP54 Commission regulation (EU) 327|2011: the fan integrated within the appliance is part number A3G500-AD01-51 and conforms to the requirement of the regulation. Figure 1 - EC Aura Use of connection converter plug 3.1 General The appliance is supplied fitted with a supply cord and plug. The plug is a ‘schuko’... -
Page 5: Removal Of Converter Plug
3.3 Removal of converter plug The appliance is supplied with the converter plug fitted over the ‘schuko’ plug as shown in figure 1. Figure 2 – As supplied; converter plug fitted The screws of the converter plug are loosened as shown in figure 2 Figure 3 –... - Page 6 The top housing is held in place by two barbed inserts. Insert small screw driver as shown in figure 3 to release the barbed clips. Figure 4 – releasing of the barbed clips or the top housing The top housing is then lifted allowing removal of the ‘schuko’ plug, see figure 5.
-
Page 7: Operating Instruction
Operating instruction The EC Aura is an appliance to assist cooling by blowing a jet of air. The appliance shall be connected to a mating mains socket and power turned on. There is an actuator to turn the appliance on and off on the top of the appliance. - Page 8 Figure 6 - control panel sub assembly Figure 7 - housing sub assembly Figure 8 - trolley sub assembly...
-
Page 9: Data Sheet
Data sheet... -
Page 10: Certificate Of Conformity
10 Certificate of Conformity...
