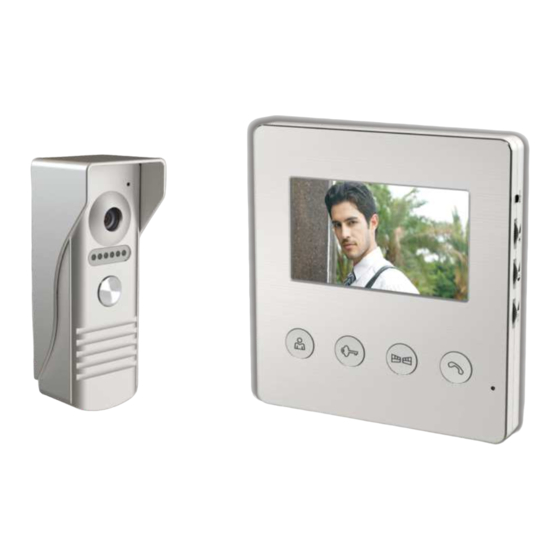

COLOR VIDEO DOORPHONE KITS
Product Description...................................1
Features.....................................................1
Package Contents......................................1
Safety Instruction.......................................2
System Installation.....................................2
Operation Instruction.................................6
Technical Specifications............................7
MODEL: RL-A043F
Trouble Shooting.......................................8
USER MANUAL
Version 1.2
Advertisement
Table of Contents
Related Manuals for Roule RL-A043F
Summary of Contents for Roule RL-A043F
- Page 1 COLOR VIDEO DOORPHONE KITS Product Description........1 Features.............1 Package Contents........1 Safety Instruction........2 System Installation........2 Operation Instruction.........6 Technical Specifications......7 MODEL: RL-A043F Trouble Shooting........8 USER MANUAL Version 1.2...
-
Page 2: Product Description
Product Description Safety Instruction ·Keep the indoor unit away from high temperature such as near an oven or The color video doorphone can be used to monitor ,call, intercom and unlock. under direct sunlight, and high humidity such as bathroom and greenhouse. It is a product that is very suitable for villa, single house, hotel, office and etc, ·Do not install the indoor unit close to a television or position with strong giving you the combined benefit of security and convenience. - Page 3 B. Outdoor Unit C.Wiring Diagram 1) Install the outdoor unit at the height of 1.4m~1.7m up from the ground and avoid direct sunlight and rain. Connect the electric lock with indoor unit Wiring Instruction: 1. Audio wire 46° 2. Ground wire 3.
- Page 4 Wiring Requirement Operation Instruction 1) Generally please use 15m cable to connect indoor unit with outdoor unit. 2) RVV4 x 0.5mm connecting wire can be chosen if you want to lengthen it to 15~50m. A.Indoor Unit 3) RVV4 x 0.75mm connecting wire can be chosen if you want to lengthen it to 50~100m.
-
Page 5: Technical Specifications
Technical Specifications Trouble Shooting Indoor Unit Problem Solutions Screen Size ·Make sure all the connections are secure and properly Resolution 480 x RGB(H) x 272(V) connected. Effective Area 95.04mm(H) x 53.86mm(V) No Picture/Signal ·Make sure there is nothing obstructing the view o f t he Pixel Dimension 0.107(H) x 0.370(V) c amera.
