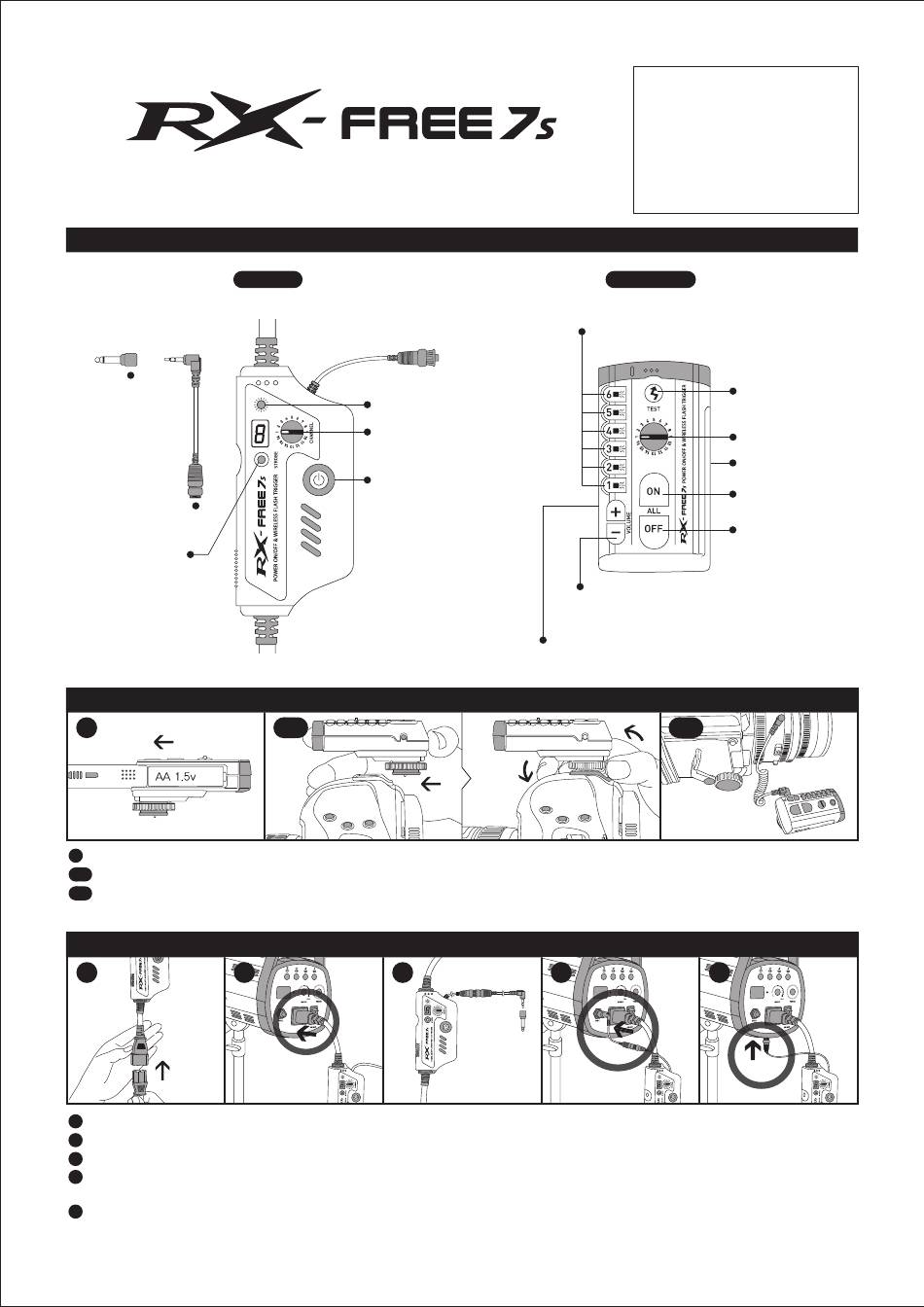

POWER ON/OFF & WIRELESS FLASH TRIGGER

Part Reference

Receiver

Connector to strobe

3.5mm socket

to 6.33mm

Jack Converter

3.5mm Sync Cord

Mini male Cable

Strobe Channel Button

AC 100V-200V

Transmitter Set up

Install a AA 1.5V battery into the transmitter.

2-1

Slide the transmitter into the hot shoe of your camera and tighten the lock wheel.

2-2

Use the included 2.5mm sync cord to connect the transmitter to a PC sync port of your camera.

※ Choose either 2-1 or 2-2 process depending on the type of camera.

Receiver Set up

Unplug the AC power cord from the studio strobe and plug it into the RX-Free 7s receiver.

Insert the power cord of the receiver into the AC power port of the strobe.

Plug provided 3.5mm sync cord to the receiver.

Insert connected 3.5mm sync cord to mini male cable, then to the sync port of strobe.

(If 6.3mm sync port used for your strobe, connect using jack converter provided.)

Connect mini female cable of the receiver to the mini jack port on the bottom of the strobe.

※ Follow the procedure ① > ② > ⑤ or ① > ② > ③ > ④ depending on strobe specification.

Strobe Light Volume Cord

Mini Female Cable

Status LED

Sync Channel

Power Button

2-1

Model

RX-FREE 7s

Sync Speed

Frequency

2.4GHz

Battery Transmitter

Channels

Receiver

AC 100V-220V

Max range

Up to 30 meters

Transmitter

Individual Strobe on/off button

Strobe Light Volume Control Button

2.5mm Sync Port

2-2

1/250 sec

1xAA 1.5V

TEST Button

Sync Channel

Battery Cover

All Strobes ON

All Strobes OFF
