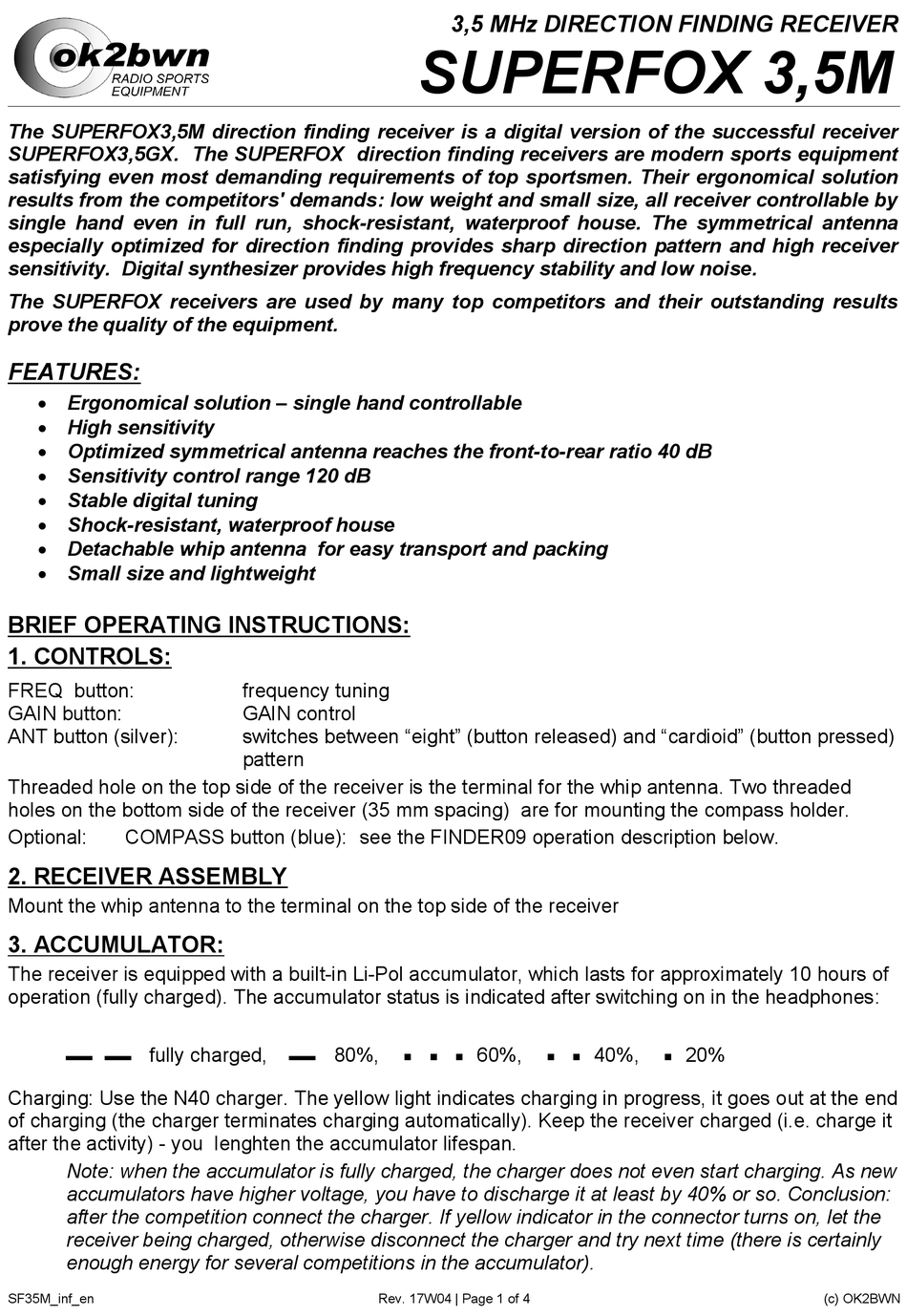

ok2bwn SUPERFOX 3,5M Manual

The SUPERFOX3,5M direction finding receiver is a digital version of the successful receiver
SUPERFOX3,5GX. The SUPERFOX direction finding receivers are modern sports equipment
satisfying even most demanding requirements of top sportsmen. Their ergonomical solution
results from the competitors' demands: low weight and small size, all receiver controllable by
single hand even in full run, shock-resistant, waterproof house. The symmetrical antenna
especially optimized for direction finding provides sharp direction pattern and high receiver
sensitivity. Digital synthesizer provides high frequency stability and low noise.
The SUPERFOX receivers are used by many top competitors and their outstanding results
prove the quality of the equipment.
FEATURES:

Ergonomical solution – single hand controllable
 High sensitivity
 Optimized symmetrical antenna reaches the front-to-rear ratio 40 dB
 Sensitivity control range 120 dB
 Stable digital tuning
 Shock-resistant, waterproof house
 Detachable whip antenna for easy transport and packing
 Small size and lightweight
BRIEF OPERATING INSTRUCTIONS:
1. CONTROLS:
FREQ button:
GAIN button:
ANT button (silver):
Threaded hole on the top side of the receiver is the terminal for the whip antenna. Two threaded
holes on the bottom side of the receiver (35 mm spacing) are for mounting the compass holder.
Optional: COMPASS button (blue): see the FINDER09 operation description below.
2. RECEIVER ASSEMBLY
Mount the whip antenna to the terminal on the top side of the receiver
3. ACCUMULATOR:
The receiver is equipped with a built-in Li-Pol accumulator, which lasts for approximately 10 hours of
operation (fully charged). The accumulator status is indicated after switching on in the headphones:
_ _
fully charged,
Charging: Use the N40 charger. The yellow light indicates charging in progress, it goes out at the end
of charging (the charger terminates charging automatically). Keep the receiver charged (i.e. charge it
after the activity) - you lenghten the accumulator lifespan.
Note: when the accumulator is fully charged, the charger does not even start charging. As new
accumulators have higher voltage, you have to discharge it at least by 40% or so. Conclusion:
after the competition connect the charger. If yellow indicator in the connector turns on, let the
receiver being charged, otherwise disconnect the charger and try next time (there is certainly
enough energy for several competitions in the accumulator).
SF35M_inf_en
frequency tuning
GAIN control
switches between "eight" (button released) and "cardioid" (button pressed)
pattern
_
. . .
80%,
Rev. 17W04 | Page 1 of 4
3,5 MHz DIRECTION FINDING RECEIVER
SUPERFOX 3,5M
. .
60%,
.
40%, 20%
(c) OK2BWN
