Summary of Contents for Economic Holland Aerolet

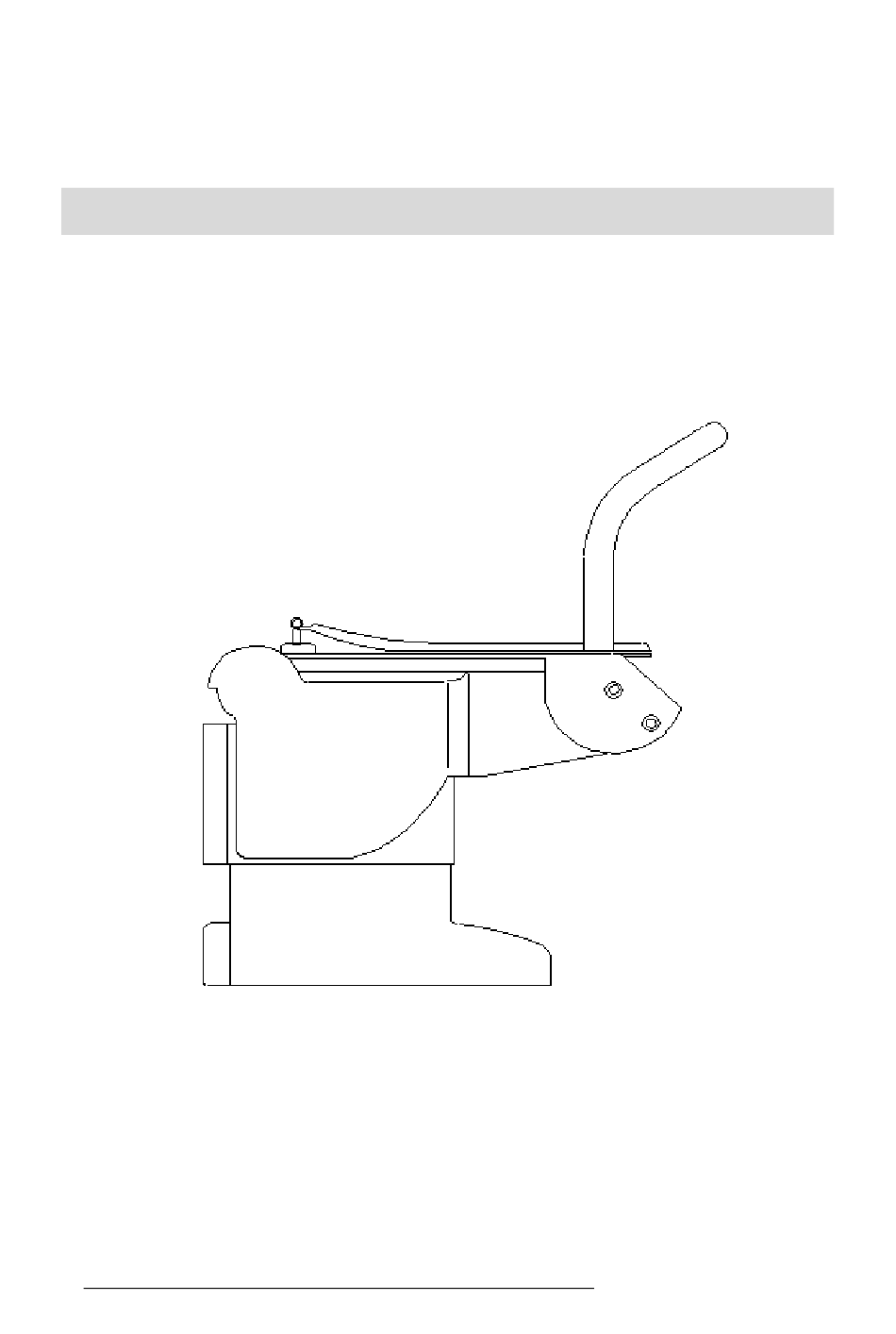

- Page 1 Toiletlift voor gehandicapten Aerolet Manual and Installation ® Aerolet m ade by Econom ic Holland b.v. A erolet Manual + Installation - C O 61 - version: 01 -E N - Jan. 2018...
- Page 2 Your Aerolet toilet lift is absolutely no toy ! Pay special attention to warning symbols used in this manual. ! improper use may cause injury to the user ! ! improper use may cause damage to the Aerolet ! Danger of hand-jam Measurements: Width...
-
Page 3: Table Of Contents
Formation of the Aerolet ............8-9 Removal and installation of the covers........10-11 Prepair the Aerolet for a ´height´ toilet bowl (option)....12-13 Installing the Aerolet on a bowl (floor or wall hanging)..14-15 Installing the Aerolet in combination with Bidet-system..16-17 Setting the rise of the Aerolet..........18-19 Installing the arm supports (option) and the toilet seat..20-21... -
Page 4: Base Structure Of The Aerolet
Base structure of the Aerolet A erolet Manual + Installation - C O 61 - version: 01 -E N - Jan. 2018... -
Page 5: The Aerolet Wire Diagram
The Aerolet wire diagram A erolet Manual + Installation - C O 61 - version: 01 -E N - Jan. 2018... - Page 6 Photo 1 Photo 2 Photo 3 A erolet Manual + Installation - C O 61 - version: 01 -E N - Jan. 2018...
-
Page 7: Operation Instructions
Danger of hand-jam. When the lift is in motion your hand(s) must always be on the arm supports or in your lap. The Aerolet toilet lift operates by two easy press button on the hand control (photo 3). BUTTON (controls the upward movement of the lift) - Page 8 Cistern bow l W all hanging bow l A erolet Manual + Installation - C O 61 - version: 01 -E N - Jan. 2018...
-
Page 9: Formation Of The Aerolet
Formation of the Aerolet For placing the lift at least 80 mm space is needed from the back wall to the heart of the bowl holes at the height where the fastening strip is fixed to the bowl. (see page 4 no. - Page 10 A erolet Manual + Installation - C O 61 - version: 01 -E N - Jan. 2018...
-
Page 11: Removal And Installation Of The Covers
Removal and installation of the covers WARNING • The user may NEVER remove or install the covers of the lift. • This should only be changed by a certified professional REMOVAL ® • All covers are fastened to the frame with Velcro . •... - Page 12 A erolet Manual + Installation - C O 61 - version: 01 -E N - Jan. 2018...
-
Page 13: Prepair The Aerolet For A 'Height' Toilet Bowl (Option)
Prepair the Aerolet for a ‘height’ toilet bowl (option) ® Before ordering and installing the Aerolet , the height of the toilet bowl should be measured. • Cut the 4 raisers at the right length (see diagram page 12). Carefully turn the lift backwards and ensure that the frame R is off the ground. - Page 14 A erolet Manual + Installation - C O 61 - version: 01 -E N - Jan. 2018...
- Page 15 Installing the Aerolet on a toilet bowl (floor- or wall hanging toilet) Warning Since the toilet lift is mounted on a toilet bowl, this toilet bowl is part of the system. Make sure that the toilet bowl is firmly anchored to the floor.
- Page 16 A erolet Manual + Installation - C O 61 - version: 01 -E N - Jan. 2018...
- Page 17 Installing the Aerolet in combination with a shower WC (Bidet-system) The Aerolet lift in combination with a bidet system, is possible in many cases. An additional (extra) 100-230V socket and a water connection must be made before placing this combination.
- Page 18 Fig.1 A erolet Manual + Installation - C O 61 - version: 01 -E N - Jan. 2018...
- Page 19 Setting the rise of the toilet lift Warning Never change the lift settings yourself, but have them done by an authorized person. Height adjustments can ONLY take place when the adjust- ment box for variable rise settings is present. This box (option) can be ordered separately.
- Page 20 Photo 1 Photo 2 A erolet Manual + Installation - C O 61 - version: 01 -E N - Jan. 2018...
-
Page 21: Installing The Arm Supports (Option) And The Toilet Seat
Installing the arm supports and the toilet seat • Arm supports Left and/or Right can be ordered separately. • When assembling the arm support(s) the lift must be set in the heighest position no. 5 (see page 18). One or both arm supports can be mounted. -
Page 22: Cleaning & Maintenance
Cleaning & maintenance of the Aerolet Aerolet • is designed for easy cleaning. Warning Aerolet Unplug the from the GFCI when cleaning the lift. Aerolet should be cleaned with each routine bathroom cleaning. • Do not use chlorine bleach and/or hydrochloric acid (scale solvents) based products to clean the lift. -
Page 23: Troubleshooting
Troubleshooting LA = Linear Actuator / CB = Control Box Symptom Possible Cause Action Power indicator does - Not connected on - Connect to m ains not light up the m ains - Replace fuse, if the (see page 4 - pos. 10) - The fuse has system is prepared for blown... - Page 24 Symptom Possible Cause Action The lift gives a - The lift doesn´t run - Reset the lift com pletely beeping sound when synchronisly in its lowest position pressing UP botton Motor (CB) sound but - Connect the actuator - The actuator is not no m ovem ent of cable plug properly connected to the...
-
Page 25: Guarantee En Repair
During this guarantee period the authorized dealer will replace or repair at his own choice the faults. Exclusions Your Aerolet guarantee is not applicable on faults which will result in the following: • wrong or inadequate maintenance by the user. - Page 26 Notes: A erolet Manual + Installation - C O 61 - version: 01 -E N - Jan. 2018...
-
Page 27: Notes
Notes A erolet Manual + Installation - C O 61 - version: 01 -E N - Jan. 2018... - Page 28 Manufacturer: Dealers / Sales : Economic Holland reserve the right to technical alterations ! A erolet Manual + Installation - C O 61 - version: 01 -E N - Jan. 2018...
