Summary of Contents for Reversomatic RVAC-100

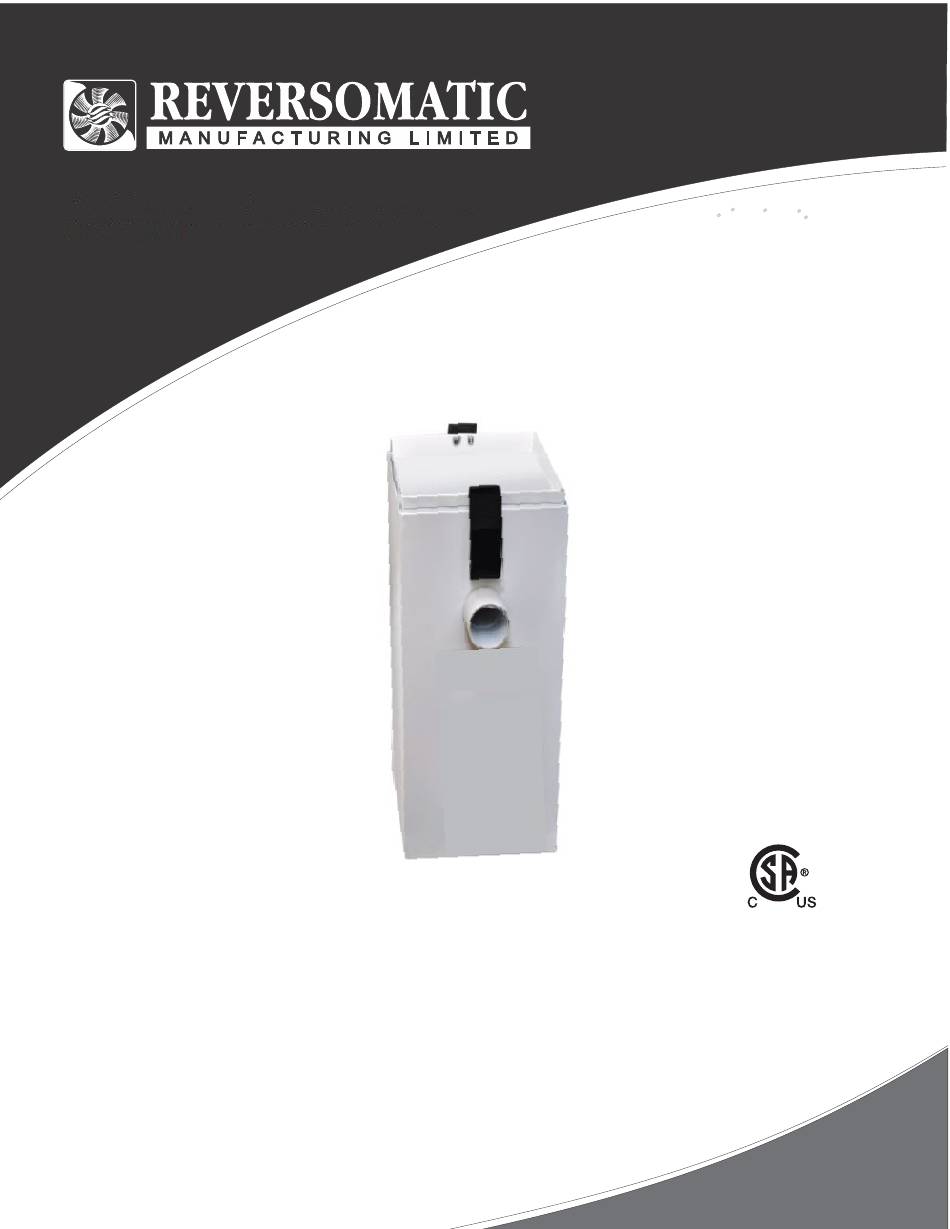

- Page 1 VACUUM CLEANER MANUAL RVAC-100 For Household Use Only 790 Rowntree Dairy Road, Woodbridge, ON Canada L4L 5V3 t: 905.851.6701 f: 905-851.8376 e: info@reversomatic.com Toll Free: 1.800.810.3473 (Canada) 1.866.890.6457 (U.S.A.) www.reversomatic.com...
- Page 2 This appliance is for use on a nominal 120-V circuit and has a grounding attachment plug that looks like the plug illustrated. Make sure that the appliance is connected to an outlet having the same configuration as the plug. No adaptor should be used with his appliance. www.reversomatic.com • info@reversomatic.com...
-
Page 3: Parts List
Parts List Reference Description Part Number Vacuum Cleaner Body 012994 Latch 9319 Pre-filter 012995 Dust Bag 012996 012997 Spider/ Gasket Set Control Board/PCB 012998 Motor 012999... - Page 4 VK-SAK-138-30 STANDARD AIR KIT, WITH 30' LOW VOLTAGE HOSE ON/OFF SWITHC- LT GREY VK-SAK-138-35 STANDARD AIR KIT, WITH 35' LOW VOLTAGE HOSE ON/OFF SWITHC- LT GREY RVAC-100 VACUUM CLEANER LT-400V LINT TRAP COMPLETE 4 X 4 OR 4 X 5...
-
Page 5: Wiring Diagram
Wiring Diagram Wiring Diagram Rating Plate The style, model and serial numbers are indicated on therating plate located on housing. For prompt and complete service information, always refer to these numbers when inquiring about service. Installation The power unit hangs on the mounting bracket which is screwed to the wall. The unit should be mounted about 48” (122 cm) up from the floor to allow convenient removal of the bottom for maintenance. -
Page 6: Maintenance
Maintenance Power unit can be dusted off with a clean, soft cloth. There are no user serviceable parts. For servicing of the appliance, please contact your local authorized dealer/distributor. Caution: do not use liquid cleaners or water as an electrical shock may occur. Do not tamper with power unit. -
Page 7: Vacuum Cleaner
Vacuum Cleaner Typical Installation Typical Installation 8” 8” 1” 5” 6” 2” dia. 10 ft. long 9” 11.5” 10” SIDE VIEW FRONT VIEW BACK VIEW *4 - #8 x 1 ½” long Wall screws supplied Installation Options: Stamped Extruded Option 2 Option 1 Aluminum Aluminum... - Page 8 Notes...
- Page 9 Notes 790 Rowntree Dairy Road, Woodbridge ON, Canada L4L 5V3 Tel: 905-851-6701 • Fax: 905-851-8376 • info@reversomatic.com Toll Free: 1.800.810.3473 (Canada) • 1.800.499.5073 (U.S.A.) w w w . r e v e r s o m a t i c . c o m...
