Safety Instructions
Before operating this product, please read the user's manual of safety
instructions. The safety instructions are to help you use this product in a
safe and correct way, and to prevent danger or injury to yourself or others.
① Turn on power.
② Select applicable program.
③ Perform Arc Check.
※ Please see "Arc Check" for
details.
④ Insert protection sleeve.
⑤ Prepare the fibers.
⑥ Set fibers to the splicer.
⑦ Press
key.
⑧ Remove spliced fiber.
⑨ Slide protection sleeve over
spiced point.
⑩ Place fiber to heater.
⑪ Press
key.
⑫ Remove the fiber.
End.

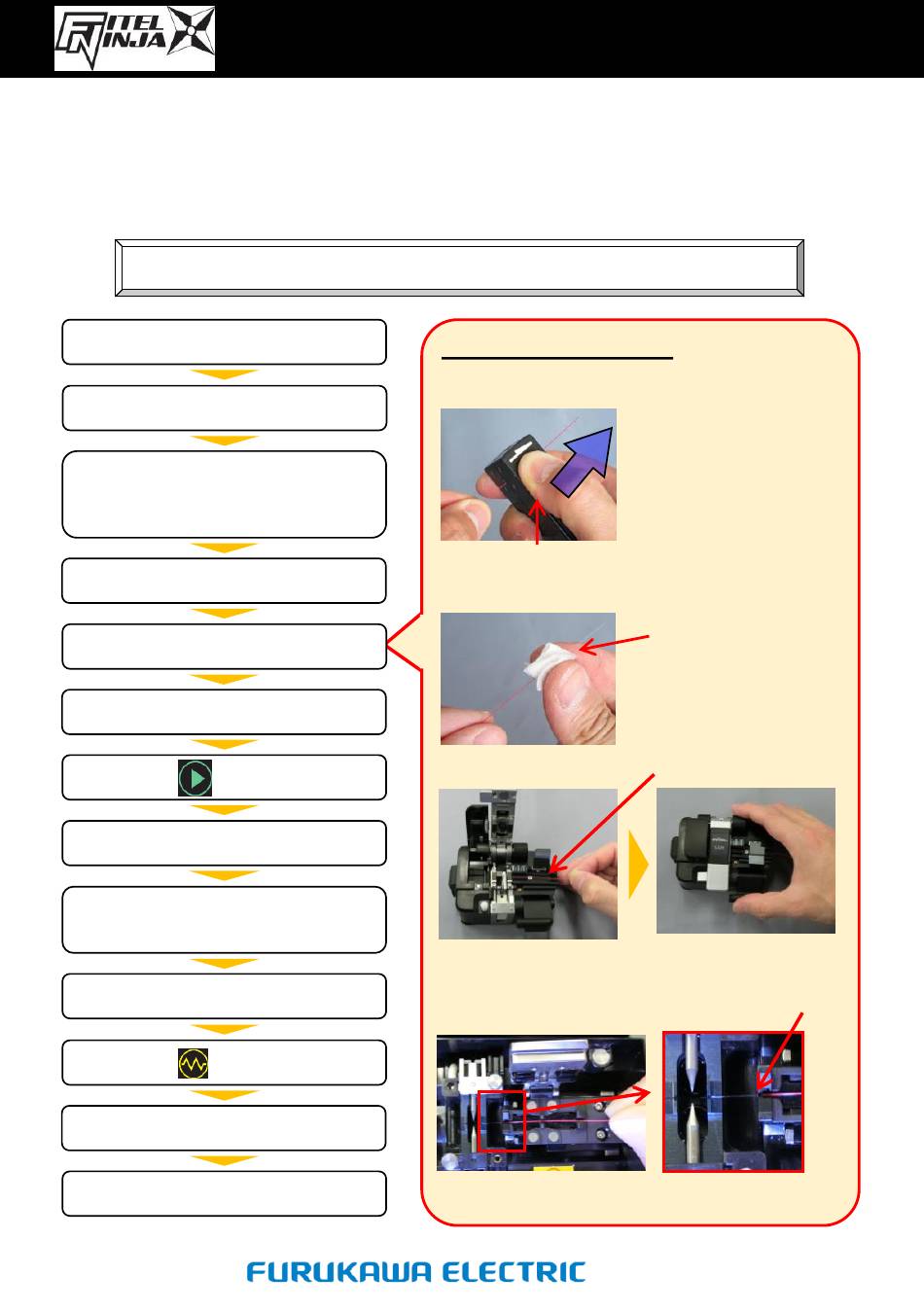

FITELNINJA NJ001
Quick Reference guide
Splicing Procedure
< Fiber Preparation >
Stripping the fiber coating
Fiber Cleaning
Fiber Cleaving
Setting the fiber on the splicer
S210 Fiber Stripper
Single Fiber Adapter
Place fiber on Single
Fiber Adapter.
The edge of the fiber coating should
match with the edge of the tight holder.
FTS-B495
Issue 3
Hold the fiber tightly.
Then move S210
into the direction
indicated by the
arrow mark.
Lint-free
tissue with
ethanol
Press the lever.
Edge of the coating
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Furukawa electric FITELNINJA NJ001
Summary of Contents for Furukawa electric FITELNINJA NJ001
- Page 1 FITELNINJA NJ001 FTS-B495 Quick Reference guide Issue 3 Safety Instructions Before operating this product, please read the user’s manual of safety instructions. The safety instructions are to help you use this product in a safe and correct way, and to prevent danger or injury to yourself or others.
- Page 2 FITELNINJA NJ001 Quick Reference guide Procedure of Changing Program < Fusion Program> Enter “Fusion PRGM” Enter “All Programs”. Select applicable in menu. fusion program. < Heater Program> Enter Heater PRGM Select applicable in menu. heater program. Arc Check Arc Check is the function to adjust the arc power in order to ensure optimal splicing results.
- Page 3 FITELNINJA NJ001 Quick Reference guide To ensure optimal splicing results < Cleaning V-groove> Cleaning brush Run fiber across V-groove to Clean V-groove by a cleaning brush and remove dust in V-groove. a cotton swab soaked with ethanol. < Cleaning Fiber Clamp>...
- Page 4 FITELNINJA NJ001 Quick Reference guide Operation Keys Power Key Up/ Down/ Left/ Right Key Move the cursor and Turn the power on/off. change the value Function 2 Key Function 1 Key Select the function shown on the Select the function shown on the left bottom corner of LCD.
