  • Page 1 User Manual 5024 Version: 1.0 20181227...

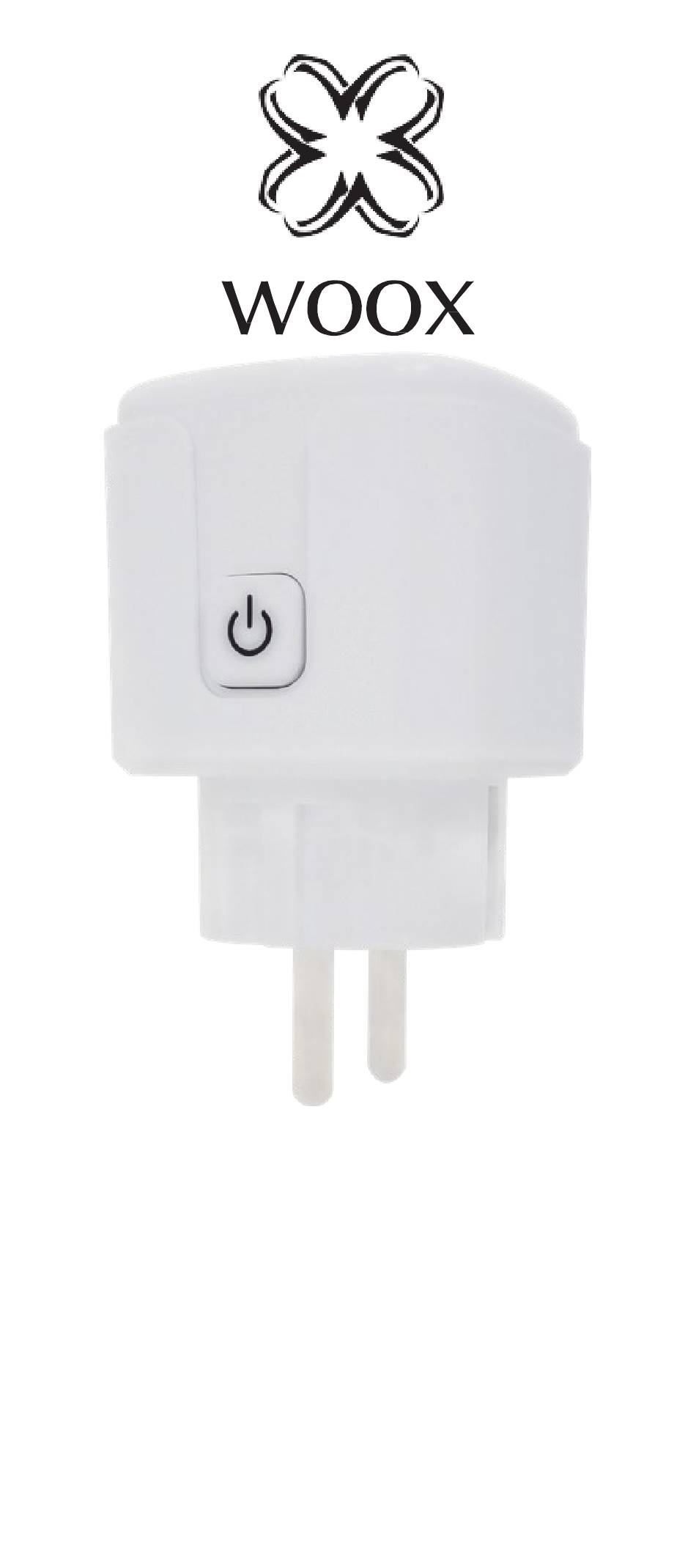

  • Page 2 General information Thank you for purchacing the Woox home Wi-Fi Smart Plug. For the proper installation and use of this product, please read these instructions carefully. Overview 1 Mains plug 2 On/Off/Pair...
  • Page 3 button Status...
  • Page 4 LED indicator light LED light Device status Lights up Connected in solid Blinks twice Setup in per second in EZ mode blue Blinks once Setup in AP mode seconds...
  • Page 5 Setting up the Smart Plug via the Woox home 1. Connect your smartphone to the same wifi network that you want to connect the adaptor to. 2. Install the Woox home app Scan barcode download the app from the Google Play Store (for Android devices) or the App Store (for iPhone).
  • Page 7 3. Creating a profile - Open the Woox home app. - Tap Register. - Tap Agree to accept the privacy policy. - Choose your region by selecting the Country Code. - Enter your email address or phone number and Tap Continue.
  • Page 8 - Tap Add Home. - Enter your Home Name to assign a name to your location. - Select your Family Location to...
  • Page 9 define the location of your devices. - Choose a room (e.g. Bedroom) in which you want to use the device. - Tap Done to complete creating the profile. 4. Setting up the Smart Plug - Tap Add Device or Tap the + symbol in the top right corner of the app.
  • Page 10 - Ensure the LED indicator is flashing.
  • Page 11 If the LED on the Smart Plug isn't flashing, press and hold the On/Off button for a few seconds until the LED starts to flash. There are two methods of WiFi connection: mode (LED rapidly flashes twice per second) and AP mode (LED slowly flashes once every 2 seconds).
  • Page 12 EZ mode (default method) - Tap to Confirm if the indicator flashes rapidly. Only 2 4GHz wifi is - Enter the WiFi password and confirm. - The app will now search for the Smart Plug and register it to your account. - Assign a name to the Smart Plug and Tap Save to confirm.
  • Page 13 for use with the app.
  • Page 14 AP mode (alternitive method) - Tap Confirm if the indicator flashes slowly. Only 2.4GHz wifi is supported. - Enter the WiFi password and confirm. - Tap Connect Now and select the Smart Plug's hotspot "Woox- xxxx" to connect.
  • Page 16 - Back to the App and it will now search for the Smart Plug and register it to your account. - Assign a name to the Smart Plug and Tap Save to confirm. - Allocate the smart plug to a room (optional).
  • Page 17 Connect Smart Plug to Amazon Alexa 1. Start the Alexa app. 2. Click button in the top-...
  • Page 18 3. Click Skills. 4. Search for the Woox home skill. 5. Tap on the Woox home skill.
  • Page 19 6. Tap Enable. 7. Enter your Woox home app account and password, then tap Link Now.
  • Page 21 8. Tap Authorise. 9. Now your Woox home account is linked to Amazon alexa. 10. Tap DISCOVER DEVICES to link Smart Plug to Alexa. Now you can say "Alexa, turn...
  • Page 22 on Smart Plug."...
  • Page 23 Connect Smart Plug to Google Assistant 1. Start the Home app 2. Tap button. 3. Tap Settings. 4. Tap Assistant and Home control. 4. Tap button in the bottom-right...
  • Page 24 5. Search Woox home action and tap it.
  • Page 25 6. Enter your Woox home app account and password, then tap Link Now. 7. Tap Authorise.
  • Page 27 8. Now your Woox home account is linked to Google Assistant. All the smart devices in your Woox home account will now also be in the google home app. 9. Now you can say "Hey google, turn on Smart Plug."...
  • Page 28 IFTTT. 1. Start IFTTT app. 2. Search for the Smart life service. 3. Choose Smart Life. 4. Enter your Woox home app account and password and tap Link Now to link your Woox home account. 5. You can now use IFTTT with...
  • Page 29 Troubleshooting 1. Setting Up • Please make sure Smart Plug configuration mode. TheLED indicator should blinking. • Please make sure your network is 2.4GHz. If you router has both 2.4GHz and 5GHz, try to disable 5GHz whilst setting up the smat plug.
  • Page 30 WPA2- PSK and encryption type as AES, or set both as auto. • Router wireless mode can not be set to 802.11n only. • Restart the smart plug and set up it again. 2. Smart Plug is offline.
  • Page 31 Please restore the plug and set it up again. 3. Alexa can not find the Smart Plug. • Please try to disable Woox home skill and enable it again. Restore factory settings - Select the Smart Plug in the device list. - Tap the...
  • Page 32 be connected to a network again.
  • Page 33 Never connect several adaptors in series! Hazard information: Do not open the device. It does not contain any parts that can be maintained by the user. There is a risk of electric shock if the device is opened. Do not use the device if there are signs of damage.
  • Page 34 T h e d e v i c e s h o u l d o n l y b connected easily accessible power socket.
  • Page 35 Only device with properly installed wall outlets with earth contacts and not with extension cables. Do not connect to devices which could cause fire or other types of damage in unattended operation (e.g. irons). Remove plug connected de vi c e , w hene ver changes modifications to the device.
  • Page 36 Using device purpose other than that described this operating manual does not fall within the scope of intended use...
  • Page 37 shall invalidate warranty or liability. This also applies to any conversion or modification work. The device is intented for private use only. connect multiple pluggable switches into another. I f y ou us e t h e de v i c e in a security application it has to operated connection...
  • Page 38 more than 100 A. Switching such kind of loads may leads to premature wear of the actuator. device only operated within residential buildings.
  • Page 39 Technical specifications Model R4785 110-240V AC / number: Input 50/60Hz voltage: 13 A max. 2990 W max. Current: 100 g Switching 53 x 54 x 66 mm power: Weight: Dimensions: O p e r a t i n g -10 ℃ -45 ℃ temperature: O p e r a t i n g ≤80%RH...
