Summary of Contents for Atosa MBB48GR

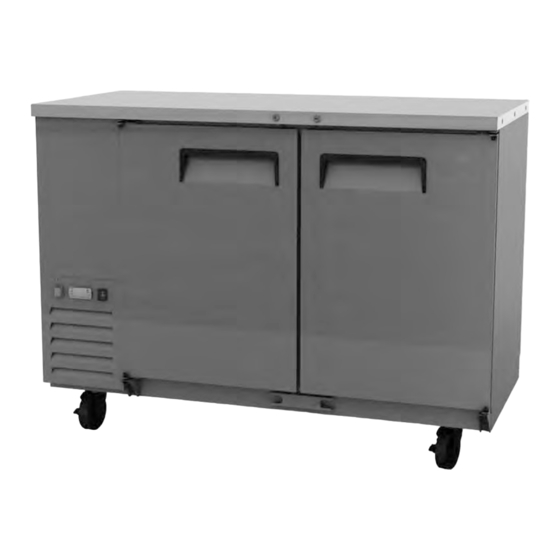

- Page 1 Original instruction INSTRUCTION MANUAL Back Bar Coolers Please read the user’ s manual before you use this product.
-
Page 3: Table Of Contents
Back Bar Coolers Installation, use and maintenance instructions INDEX 1 Terms and conditions.................2 2 Introduction....................6 3 The manufacturer cannot be held liable in the following cases....8 4 Transportation and storage................9 5 Commissioning...................9 5.1 Positioning...................9 5.2 Initial cleaning..................10 5.2 Initial cleaning..................10 5.3 Connection to electrical supply............10 5.4 Connection to drains................11 6 Technical characteristics.................12... - Page 5 Additional Three Year Compressor Warranty In addition to the two (2) year warranty stated above, Atosa warrants its sealed compressor to be free from defects in both material and workman ship under normal and proper use and maintenance service for a period of three (3) additional years from the date of original installation, but not to exceed five (5) years.
-
Page 8: Introduction
2 INTRODUCTION Please read instructions before using this appliance. IMPORTANT SAFETY INSTRUCTION ▲ To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following. ▲ This appliance must be properly installed and located in accordance ▲... - Page 9 ▲ Do not disconnect by pulling on the cord. Always disconnect by grasping and pulling on the plug top. ▲ Do not pull out the cord or touch the power plug with wet hands. Clean water or dust from the power plug and insert it with the ends of the pins securely connected.
-
Page 10: The Manufacturer Cannot Be Held Liable In The Following Cases
Warning: Risk of fire / flammable materials CAUTION: RISK OF FIRE AND EXPLOSION WITH FLAMMABLE REFRIGERANT R290. ▲ If you need the electronic version instruction manual, please ask the manufacturer or its service agent . ▲ Max. Load of shelf is 176 LBS. This instruction manual provides all the necessary information regarding: ▲... -
Page 11: Transportation And Storage
4 TRANSPORTATION AND STORAGE The equipment is wrapped in absorbent material and contained and fixed within a wooden platform and paper box. Whist awaiting by definitive collection, these should be stored within a protected and covered environment at a temperature between -13℉ / +131℉, with ambient humidity between 86℉... -
Page 12: Initial Cleaning
rain the correct siting is; distant from direct sources ( radiators, direct lighting, etc...) and protected from direct sunlight and draughts. Air circulation must be freely ≥50cm maintained around the condensing unit, be it integral or remote. In observance of these specific conditions will detrimentally affect these specific conditions will detrimentally affect the cabinet. -
Page 13: Connection To Drains
breaker with an efficient earth connection. Grounding Terminal Should there not be an electrical safety feature have this introduced by a qualified AC 110-125 V Outlet Only person. by means of a omnipolar switch as indicated in the safety regulations with a means of a omnipolar switch as indicated in the safety regulations with a minimum in the safety regulations with a minimum... -
Page 14: Technical Characteristics
6 TECHNICAL CHARACTERISTICS 6.1 NOISE AND VIBRATION The sound level of the equipment fitted with integral hermetic condensing unit does not exceed 70 dB ,it is therefore not necessary to provide sound insulation. Under normal conditions the equipment does not generate vibrations which affect surroundings. -
Page 15: Visualisation Of Cell Temperature
illuminate and display the current temperature with the cabinet and compressor pilot light the compressor pilot light, In case of power supply interruption, the compressor will normally restart with a slight delay. electronic panel 7.1.2 VISUALIZATION OF CELL TEMPERATURE During normal functioning, the air temperature which is present in the During normal functioning, the air temperature which is present in the cell that moment appears on the display. -
Page 16: Storage Of Food-Stuffs
If the display visualizes one or more of the above listed alarm codes take note of those, switch off the electronic control panel and switch on it after afew seconds. If the code/s is/are again visualized call lechnical assistance and report the noticed code/s 7.2 STORAGE OF FOOD-STUFFS In order to obtain the best functioning of the case it is necessary to observe the following instruction:... -
Page 17: Manual Defrosting
( DEF or dripping snow ) button for more than 5 seconds, a defrost cycle starts immediately and the following one will start after 6 hours. During defrosting a led will be switched o ( DEF). 7.3.2 MANUAL DEFROSTING All tables defrost automatically ( see 6.3.1 ) To start manually the defrosting act as above said to modify the start time for the defrost cycle ( see 6.3.1 ). -
Page 18: Period Of Inactivity Of Cabinet
8.3 PERIOD OF INACTIVITY OF CABINET During periods of inactivity, remove the products from the cabinet and then follow these directions: - Remove the plug out from the outlet and carefully clean the unit as per periodic cleaning - Cover the cabinet whit a cloth that allows air circulation in the interior. -
Page 19: If The Cabinet Leaks Water
- The stored foods or other objects do not inhibit proper closing of the unit. - The cabinet is not working in anomalous conditions ( overloaded, l oaded with hot food, or loaded in a way that prevents proper air circulation ). -
Page 20: Dismantling
Before commencing any service or maintenance work, isolate the cabinet from the electrical supply. Always fit original spares which may be obtained from an authorized concessionaire or stockist. 11 DISMANTLING The scrapping of the cabinet requires to be undertaken by specialized company, licensed by the local authorities, and observing local statutes. -
Page 21: Official Approval And Rules
OFFICIAL APPROVAL AND RULES CONFORMS TO UL STD.471 CERTIFIED TO CSA STD.C22.2 NO.120 CONFORMS TO NSF/ANSI STD. 7... -
Page 22: Technical Parameters
Technical Parameters MBB48GR 2.3 +2~8+8 R290 4.2 1219x713x1072 12.9 MBB59GR 2.3 +2~8+8 R290 4.2 1467x713x1072 17.3 MBB69GR 2.3 +2~8+8 R290 4.2 1727x713x1072 21.5 MBB90GR 2.8 +2~8+8 R290 4.2 2267x713x1072 30.1 MBB48G-GR 115 2.3 +2~8+8 R290 4.2 1219x713x1072 12.9 MBB59G-GR 115 2.3 +2~8+8 R290 4.2 1467x713x1072 17.3... -
Page 23: Correct Disposal Of This Product
CORRECT DISPOSAL OF THIS PRODUCT This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
