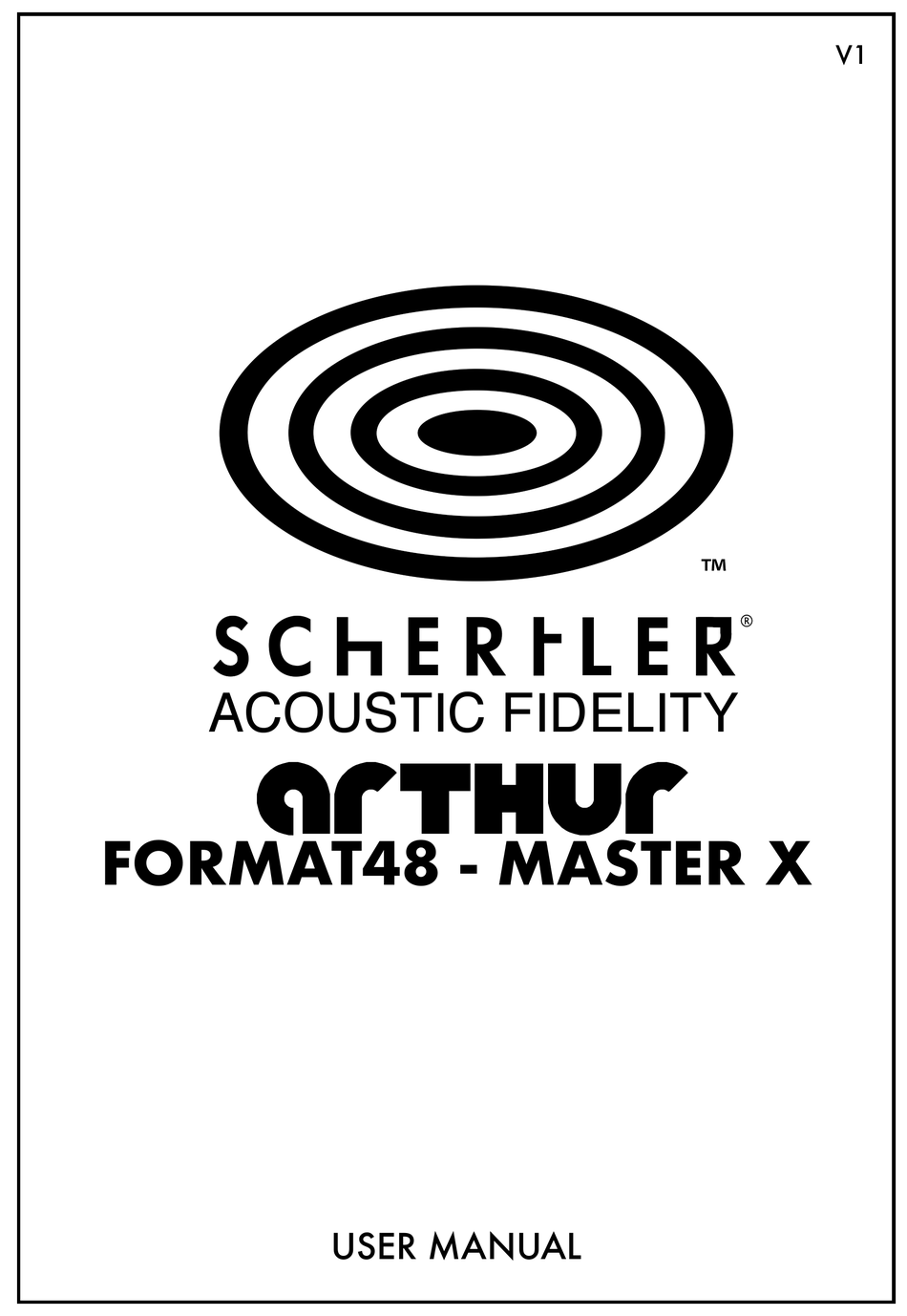

- Page 1 ACOUSTIC FIDELITY arthur FORMAT48 - MASTER X USER MANUAL...
-
Page 2: Important Safety Information
INTRODUCTION Thank you for choosing the ART48-MASTER X module. This high-end Class-A output unit offers all the essential features required in a smaller mixer configuration, along with six separately controllable AUX SENDS for greater output flexibility. Fully compatible with all existing Arthur 48 and X mixer modules, MASTER X is ideally suited to both live sound use and studio applications where more output options are required. -
Page 3: Operational Safety
Schertler technical assistance centre. (For more information, contact us at the address on the last page of this manual.) - Page 4 ART48-MASTER X 1. L and R Master faders: Depending on their position, Arthur format these faders attenuate or amplify the L and R signals from all master x the input units. The resulting signals can be seen on the L and R VU meters (see 2 below).
- Page 5 If you have bought your Master X without any transformers, or perhaps with just a few, you can always send the module back to Schertler and upgrade it with as many transformers as you need. For example, if you know that some of your stage monitors require the transformers and others...
- Page 6 ART48-MASTER X COMBINING MASTER MODULES (MASTER X and L/R MASTER) A standard mixer used for live and recording applications only needs one master L/R for connection to a PA system, or a recording device etc. There are however numerous situations in which more than one L/R output is not only useful, but essential.
-
Page 7: Technical Information
TECHNICAL INFORMATION ART48 - MASTER X: SIGNAL FLOW... - Page 8 TECHNICAL INFORMATION L/R and AUX 1 to 6 With transformer Without transformer balanced XLR outputs Output impedance 150 ohm 153 ohm Maximum output level +30 dBu +30 dBu Frequency response (-3 dB) <10 Hz - 50 kHz <10 Hz - 50 kHz Distortion (THD+N;...
- Page 9 TECHNICAL INFORMATION Phones ¼” jack output: Output impedance 6 ohm Maximum output level +14.5 dBu Maximum Gain +9 dB Frequency response (-3 dB) <10 Hz - 55 kHz Distortion (THD+N; @1 kHz) 0.05% -30 dBu input level 0 dBu output level 380 mA (Transformerless) Power consumption 460 mA (Full transformers)
- Page 10 NOTES...
-
Page 11: Warranty
COPYRIGHT This manual is the property of Schertler S.A. and, as such, is subject to Swiss copyright law. No part of this manual should be reproduced, edited or distributed without prior consent from Schertler.
