Summary of Contents for IndigoVision Ultra Series
- Page 1 IndigoVision 5K Fixed Camera Ultra Range Quick Start Guide...
-
Page 2: Legal Considerations
IN CONNECTION WITH THIS MANUAL AND OR AS A RESULT OF ANY USE OF OR RELIANCE ON THIS MANUAL IS EXCLUDED TO THE FULLEST EXTENT PERMITTED BY APPLICABLE LAWS Contact address IndigoVision Limited Charles Darwin House, The Edinburgh Technopole, Edinburgh,... -
Page 3: Table Of Contents
ABLE OF ONTENTS Legal considerations Copyright Contact address About This Guide Safety notices Hardware Description Hardware overview Metrics Connections Wiring requirements Power connections Lens requirements Getting Started Package contents Ultra 5K Fixed Camera Powering up the camera Initial configuration Initial IP properties Preparing an isolated network Preparing for initial device configuration Configuring your camera... - Page 4 Configuration Configure Ultra 5K Fixed Camera using Control Center Using the Ultra 5K Fixed Camera with Control Center Configure Ultra 5K Fixed Camera using the ONVIF Con- figuration Utility Hardware Specification Codec specification Video codec Resolution Sensor specifications Connections Network connections Power input Control Center requirements Environment...
-
Page 5: About This Guide
BOUT UIDE This guide is written for users of the IndigoVision Ultra 5K Fixed Camera. It provides installation and configuration information for the camera, as well as a description of the hardware and specifications. Please ensure you read the instructions provided in the guide before using the device. -
Page 7: Hardware Description

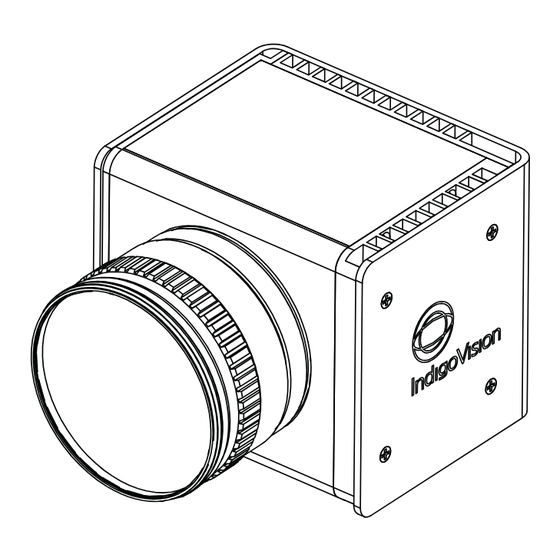

This chapter details the Ultra 5K Fixed Camera, its connections, and its weights and dimensions. Hardware overview The IndigoVision Ultra 5K Fixed Camera delivers Ultra High Resolution Video providing wider coverage and increased image detail, even in low light. Figure 1 Ultra 5K Fixed Camera (shown with optional cover) -
Page 8: Metrics
The Ultra 5K Fixed Camera is an Ultra High Resolution camera with a 20 Megapixel, 35mm full frame sensor. It uses JPEG2000 compression for full 20MP resolution at up to 6fps, and H.264 compression for HD resolution up to 30fps. ®... -
Page 9: Wiring Requirements
Wiring requirements This section details the wiring requirements for the Ultra 5K Fixed Camera. Power connections Power is provided to the camera through the Power Supply Cable ® and Power Connector which then provides access to the 3M MDR-type connection on the base of the camera through a 26-way terminal block connector. - Page 10 Signal Recommended Wire Gauge Pin 4 UART Tx- Pin 5 18 AWG Pin 6 FLASH A+ Pin 7 FLASH A- Pin 8 FLASH B+ FLASH B- Pin 9 Pin 10 18 AWG Pin 11 CAN L IN ISO Pin 12 CAN H IN ISO Pin 13 CAN L OUT ISO CAN H OUT ISO...
-
Page 11: Lens Requirements
This connector is only used for powering the camera. Lens requirements ® The camera is supplied with a Canon EF SLR-style bayonet mount varifocal lens. The camera supports remote iris and focus control. -
Page 13: Getting Started
ETTING TARTED This chapter describes the initial steps required to start using your Ultra 5K Fixed Camera. Package contents Before continuing, please check that you have been shipped the items listed for your device. Ultra 5K Fixed Camera 4 (x4) 5 (x4) Figure 5 Ultra 5K Fixed Camera (shown with optional cover) -
Page 14: Powering Up The Camera
Camera 1. Fixed camera 2. SLR Lens 3. Mounting plate 4. 4 x M4 threaded mounting holes 5. 4 x M4 screws Additional In addition to the camera, the following items are also provided: • 12V DC, 2.1A power supply •... -
Page 15: Initial Ip Properties
Initial IP properties The camera is programmed with the default IP properties: • IP Address: 10.5.1.10 • Subnet Mask: 255.0.0.0 • Default Gateway: 10.0.0.1 Preparing an isolated network Connect your device and the PC you are using to configure it on their own isolated network. -
Page 16: Configuring Your Camera
To change your PC’s settings, use the Windows Network Settings configuration application to set the PC’s IP address and subnet mask. Configuring your camera Once you have changed your PC’s network settings, you must change the IP values of the device from its factory defaults. To change the IP address use the ONVIF configuration tool. -
Page 17: Installation
NSTALLATION This section details how to install the Ultra 5K Fixed Camera. Before installing the camera in its final position, you must first configure its IP settings. For more information, see "Initial configuration" on page 14. Installing the camera 4 (x4) 5 (x4) Figure 8 Ultra 5K Fixed Camera (shown with optional cover) The camera has four M4 threaded mounting holes (4) on the base... - Page 18 The mounting plate provides the option of a 1/4" threaded mounting. Fit the supplied lens (2) to the camera by rotating the lens clockwise into the SLR mount until fully home. After you have fitted the camera to a suitable location, the camera needs to be configured.
-
Page 19: Configuration
Using the Ultra 5K Fixed Camera with Con- trol Center To use the Ultra 5K Fixed Camera at full 20MP resolution when using it with IndigoVision's Control Center, it must be used in conjunction with a VSM 4000. ► For more information about using the Ultra 5K Fixed Camera... -
Page 20: Configure Ultra 5K Fixed Camera Using The Onvif Configuration Utility
Configure Ultra 5K Fixed Camera using the ONVIF Configuration Utility The Ultra 5K Fixed Camera is an ONVIF conformant camera. As such, you can use IndigoVision's ONVIF Configuration Utility to configure the camera's settings. The ONVIF Configuration Utility is provided with the VSM 4000. -
Page 21: Hardware Specification
ARDWARE PECIFICATION This chapter details the hardware specifications for the Ultra 5K Fixed Camera. Codec specification Video codec • JPEG2000 (for full 20MP resolution @ up to 6fps) • H.264 (for HD resolution @ up to 30fps) • 120 Megapixels/sec processing power •... -
Page 22: Connections
Exposure control Auto, Manual Shutter mode Global shutter Synchronization Internal White balance Auto, Manual Iris control Full remote iris and focus control Shutter speeds 1/6666 sec to 1 sec Connections Network connections • IEEE 802.3 and IETF standards • 100BASE-TX •... -
Page 23: Regulatory
Regulatory • EN 55022 (2010) - Class A • EN 55024 (1998) +A1:2000 +A2:2003 • EN 60068-2-1 / EN 60068-2-2 Low temperature / High temperature • EN 60068-2-6 / EN 60068-2-64 Sinusoid vibration / Random vibration • EN 60068-2-29 Bump •...
