INSTRUCTIONS

Q9033 Mounting Arm

and Collar Attachment

DESCRIPTION

The Q9033 Mounting Arm is an approved accessory for

Installation of X-Series flame detectors. It allows easy

pan and tilt adjustments for sighting of the detector.

The optional Collar Attachment is used in conjunction

with the Mounting Arm to add a third dimension for

detector sighting by allowing it to also be rotated.

The Collar attachment is recommended for use in

applications that require the detector to be panned to

extreme angles.

In a typical installation, the detector is pointed down.

When a detector is pointed down, panning to either side

of center results in some degree of rotation — the greater

the pan amount, the greater the rotation. See Figure 1.

Since the cone of vision of the X3301/X3302 is not round,

but truncated on the upper half, rotation results in an

unbalanced field of view. The Collar Attachment enables

the detector to be adjusted level to the horizon, thereby

ensuring a balanced field of view.

1.2

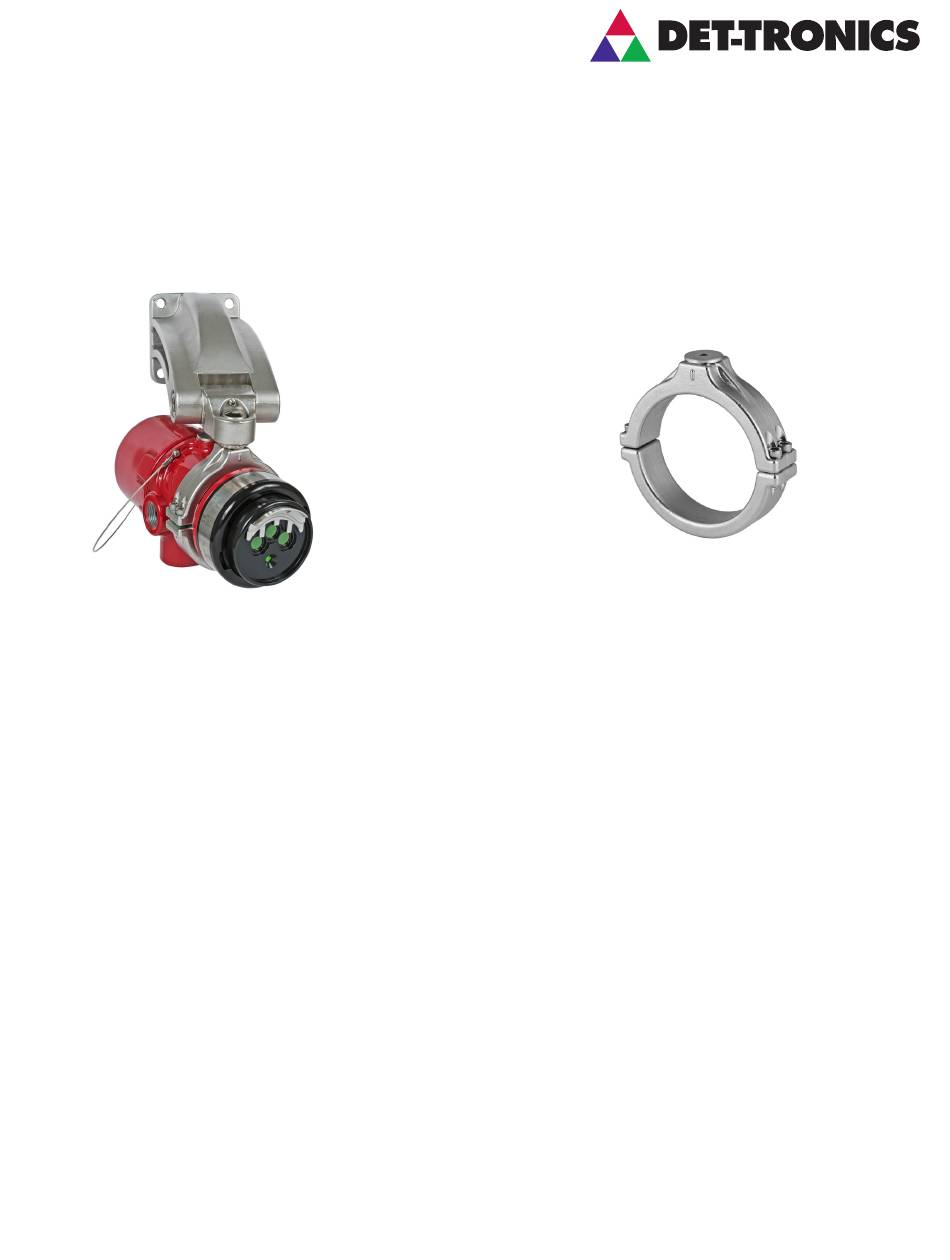

Q9033B Mounting Arm

with Collar Attachment

FEATURES

Mounting Arm

• Compatible with all X-Series flame detectors

• FM and DNV performance approved for use with

• Allows easy detector sighting

• Heavy duty, Aluminum or Stainless Steel

• Vibration and resonant frequency resistant

Collar Attachment

• Compatible with all X-Series flame detectors

• FM performance approved with X-Series detectors

• Adds increased versatility to the Mounting Arm

• Allows rotation of the detector to ensure optimum

• Stainless steel construction (suitable for use with

X-Series detectors

construction

detector performance

either aluminum or stainless steel detectors and

mounting arms)

Rev: 6/20

95-8686

Table of Contents

Need help?

Do you have a question about the Q9033 and is the answer not in the manual?

Questions and answers

Summary of Contents for Det-Tronics Q9033

Page 1 Q9033B Mounting Arm with Collar Attachment DESCRIPTION FEATURES The Q9033 Mounting Arm is an approved accessory for Mounting Arm installation of X-Series flame detectors. It allows easy • Compatible with all X-Series flame detectors pan and tilt adjustments for sighting of the detector.
Page 2 (7.6) (10.2) 2.63 (6.68) 10.6 (27.0) E2069 1.75 (4.44) NOTE: THIS ILLUSTRATION SHOWS THE DETECTOR MOUNTED AT THE 10° MINIMUM. THESE DIMENSIONS WILL CHANGE BASED (2.06) ON THE DETECTOR’S MOUNTING ANGLE. Figure 2—Q9033 Mounting Arm Dimensions in Inches (cm) 95-8686...
Page 3 Figure 4–Collar Attachment Assembly, part #011385-001 shown THESE DIMENSIONS WILL CHANGE BASED ON THE DETECTOR’S MOUNTING ANGLE. NOTE NOTE Figure 3— Q9033 Mounting Arm with Collar Attachment Socket cap screws enter from the bottom in part Dimensions in Inches (cm) #011385-002. COLLAR ATTACHMENT (Optional) ATTACH DETECTOR TO MOUNTING ARM 6.
Page 4 Specifications subject to change without notice. All trademarks are the property of their respective owners. © 2020 Carrier. All rights reserved. Det-Tronics manufacturing system is certified to ISO 9001— Corporate Office Phone: +1 952.941.6665 the world’s most recognized quality management standard.
