Tinycontrol POESWG-030 User Manual

4f1g switch 4 ports 10/100mb poe + 1 port 1 gb, hw:2.1 sw:1.08.
Hide thumbs

Advertisement

Quick Links

Download this manual

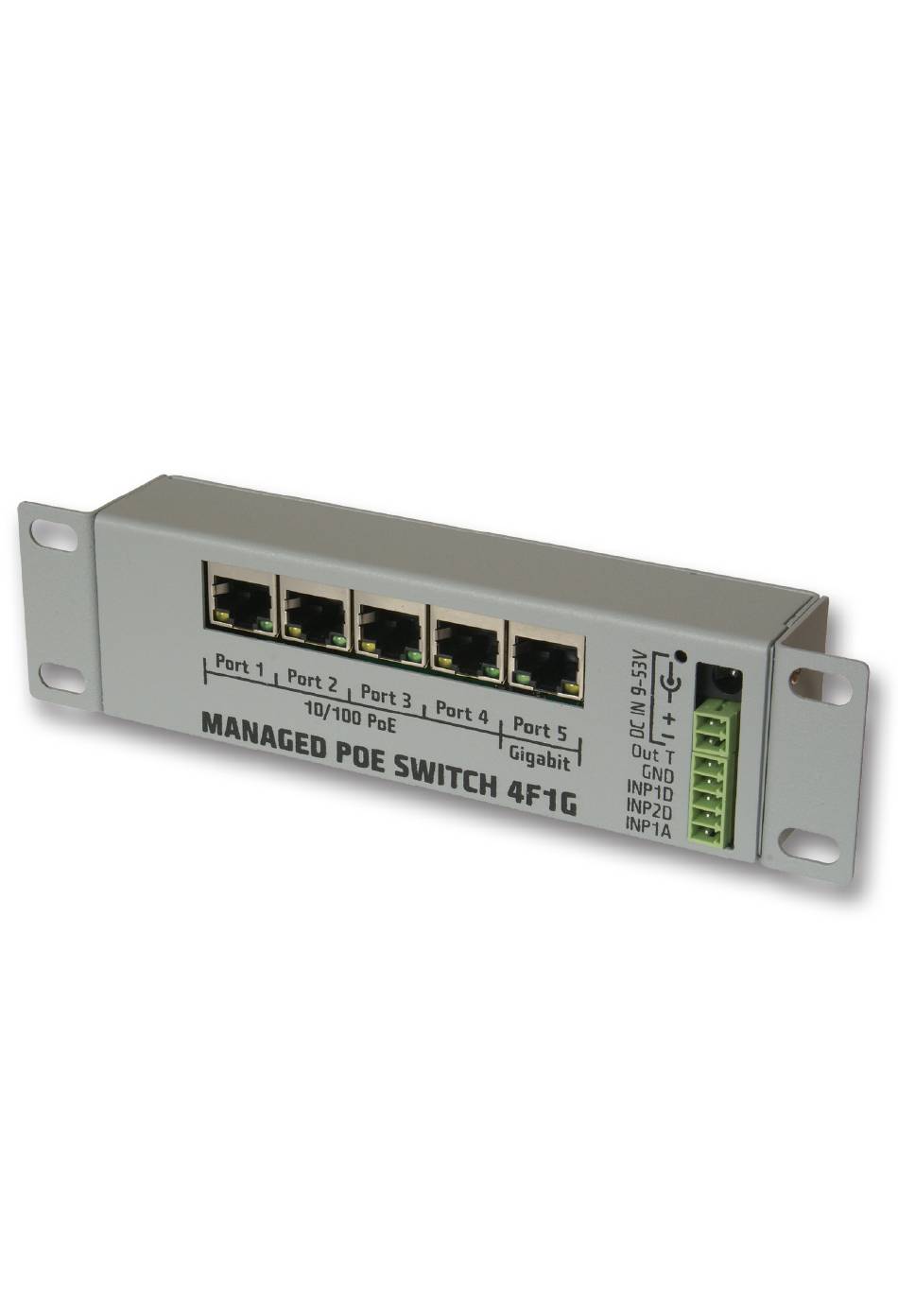

4F1G Switch
4 ports 10/100Mb PoE + 1 port 1Gb
HW:2.1 SW:1.08
Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the POESWG-030 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tinycontrol POESWG-030

  • Page 1 4F1G Switch 4 ports 10/100Mb PoE + 1 port 1Gb HW:2.1 SW:1.08 Manual...

  • Page 2: Main Features

    4F1G Switch - HW:2.1 SW:1.08 – POESWG-030 4F1G Switch Managed PoE switch is unique device designed as combination of management switch, PoE injector and in/out controller. In opposite to typical PoE switches this one don’t has fixed voltage output. This parame- ter depend on voltage of connected supply.

  • Page 3: Technical Specifications

    4F1G Switch - HW:2.1 SW:1.08 – POESWG-030 TECHNICAL SPECIFICATIONS • power supply voltage: 9÷53V • current consumption at one POE port: 2A (recommended for ling life 1A) • total power on all ports: ≤ 6A • power consumption of the switch: <1W • protection against reverse polarity: YES • maximal current from transistor output: 1A...
  • Page 4 4F1G Switch - HW:2.1 SW:1.08 – POESWG-030 Management by WWW. 1. STATUS In this window is a summary presented the switch current status. PoE on/off – specifies the state of power supply on PoE port: green ON, a red OFF.
  • Page 5 4F1G Switch - HW:2.1 SW:1.08 – POESWG-030 2. POE PoE POWER ON/OFF The value of the current The value in seconds selection switches drawn by the device to return to the OFF state Power on the PoE port per port PoE...
  • Page 6 4F1G Switch - HW:2.1 SW:1.08 – POESWG-030 4. VLAN Inclusion of of isolation between ports: In order to isolate traffic between the ports, so that the traffic was directed only to the individual ports 1÷4, for example, only port Gigabit P5 you can use the Port based VLAN Member.
  • Page 7 4F1G Switch - HW:2.1 SW:1.08 – POESWG-030 5. WATCHDOG Email send – sends an e-mail when the watchdog work (will restart power supply on a port PoE). E-mail contains information about the number of the current restart and a maximum permissible number of restarts and time of occurrence.

  • Page 8: Switch Settings

    4F1G Switch - HW:2.1 SW:1.08 – POESWG-030 6. SWITCH SETTINGS network settings configuration. The user name and password to access the module. You can disable authorization. NTP Server Settings, Time Interval - time in minutes, at what time will be synchronized with the server.
  • Page 9 4F1G Switch - HW:2.1 SW:1.08 – POESWG-030 Configure email account to send notifications. Password for SNMP Bootloader start – toggles the switch in software upgrade mode www.tinycontrol.eu...
  • Page 10 4F1G Switch - HW:2.1 SW:1.08 – POESWG-030 Software update In the event that there is a new version of the software it is possible to load such software for the device. To install the new firmware to the switch should move it in bootloader mode. The easiest way to do it from the menu Switch Settings/Others: 1.
  • Page 11 4F1G Switch - HW:2.1 SW:1.08 – POESWG-030 SNMP OID NUMBERS A group of voltages, currents, inputs, PoE iso.3.6.1.4.1.7616.1.1.0 = INTEGER: 125 – supply voltage, divide the result by 10 iso.3.6.1.4.1.7616.1.1.1 = INTEGER: 0 – INP1A, voltage, divide the result by 10 iso.3.6.1.4.1.7616.1.1.2 = INTEGER: 387 –...
  • Page 12 4F1G Switch - HW:2.1 SW:1.08 – POESWG-030 Grupa statusu portów iso.3.6.1.4.1.7616.2.1.0 = INTEGER: 1 – Port1 On/OFF iso.3.6.1.4.1.7616.2.1.1 = INTEGER: 1 – Port2 On/OFF iso.3.6.1.4.1.7616.2.1.2 = INTEGER: 1 – Port3 On/OFF iso.3.6.1.4.1.7616.2.1.3 = INTEGER: 1 – Port4 On/OFF iso.3.6.1.4.1.7616.2.1.4 = INTEGER: 1 –...
  • Page 13 4F1G Switch - HW:2.1 SW:1.08 – POESWG-030 Grupa watchdog iso.3.6.1.4.1.7616.3.1.0 = INTEGER: 0 – Port1 Watchdog On/OFF iso.3.6.1.4.1.7616.3.1.1 = INTEGER: 0 – Port2 Watchdog On/OFF iso.3.6.1.4.1.7616.3.1.2 = INTEGER: 0 – Port3 Watchdog On/OFF iso.3.6.1.4.1.7616.3.1.3 = INTEGER: 0 – Port4 Watchdog On/OFF iso.3.6.1.4.1.7616.3.1.4 = INTEGER: 0...
  • Page 14 4F1G Switch - HW:2.1 SW:1.08 – POESWG-030 The procedure for restoring the factory settings in older versions of the switch (without the RESET button hole). 1. You should upgrade software to the latest available version. For this purpose, with the power off you have to put the jumper on pins marked in red.
  • Page 15 4F1G Switch - HW:2.1 SW:1.08 – POESWG-030 www.tinycontrol.eu...
  • Page 16 Konsorcjum ATS Sp.J. ul. Żeromskiego 75, 26–600 Radom, POLAND tel./fax +48 48 366 00 30, e-mail: sales@ledon.eu www.tinycontrol.eu, www.ledats.pl, www.wirelesslan.pl, www.ats.pl...
