Elecom WRC-1167GHBK3-A Setup Manual

Setup Guide

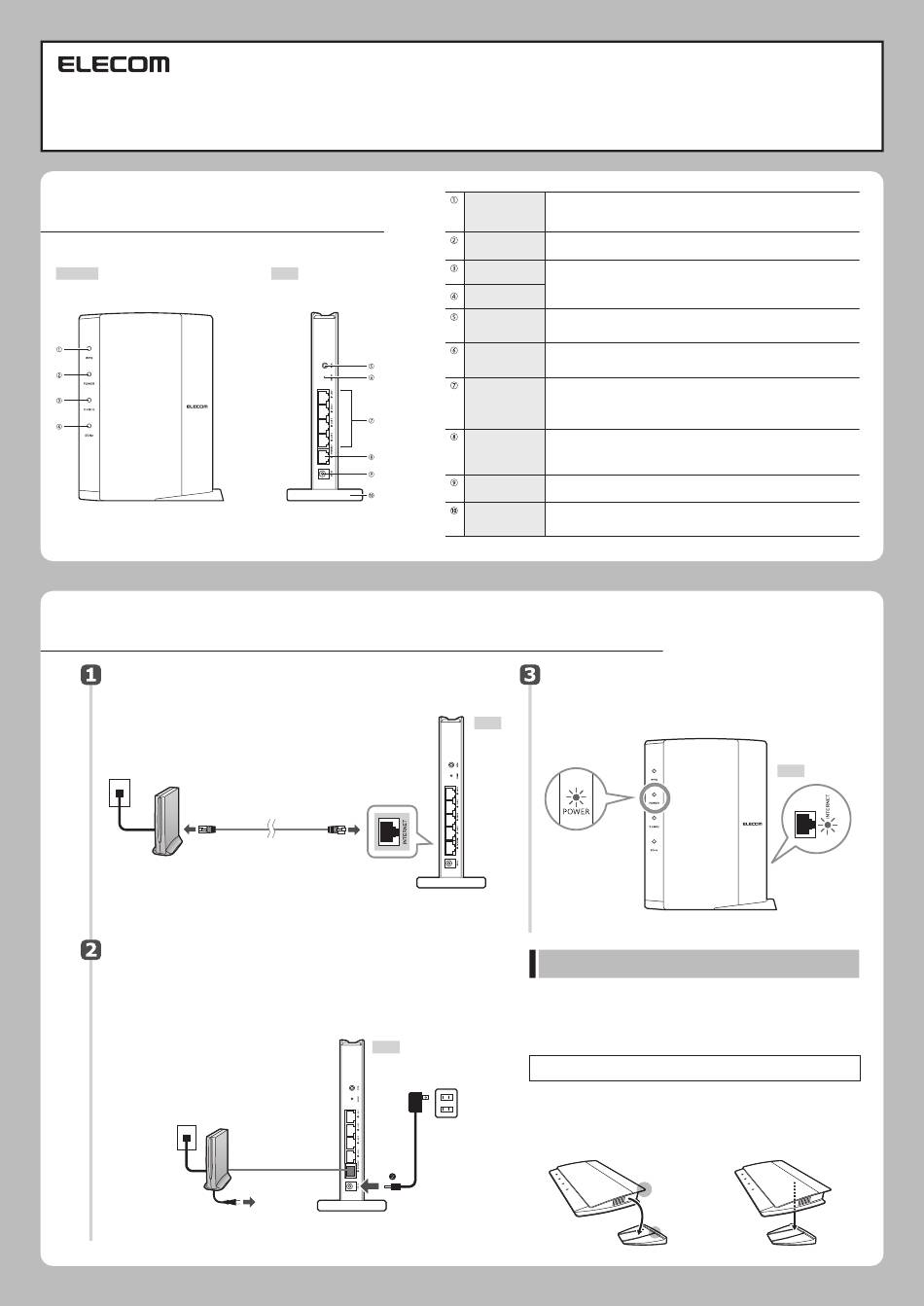

■ Name and function of each part
Left side
■ Using this product in router mode
Connect the devices.
Refer to the diagram and wire the devices.
Terminal device
(cable TV modem,
ONU, CTU, ADSL)
Turn on the terminal device and this product.
❶ Connect the power cable of the terminal device.
・ If a power switch is present, slide the switch to the on position.
❷ Connect the included
AC adapter to this product.
WRC-1167GHBK3-A・WRC-F1167ACF2・WRC-1167FEBK-A・WRC-733FEBK2-A
This manual provides a summary of and the specifications for this product as well as explains this product's usage
precautions.
It also contains an FAQ that explains actions you can take if you have problems such as the product malfunctioning.
Note that this manual is common for the WRC-1167GHBK3-A・WRC-F1167ACF2・WRC-1167FEBK-A・WRC-733FEBK2-A.
Back
INTERNET port (blue)
LAN cable
* Vertical orientation
Back
AC adapter
❶To an AC outlet
WPS lamp
Blinking: The WPS setting button has been pressed, and the WPS function is running.
(red)
This lamp blinks once every 0.5 second for approximately 2 minutes.
Off:The WPS function is not running.
POWER lamp Lit: The product is on.
(white)
Off: The product is off.
2.4G WLAN lamp
These lamps indicate the connection status of the 2.4 GHz band (11n/g/b) and the
(white) 5 GHz band (11ac/n/a).
Lit: The corresponding band can be used.
5G WLAN lamp Blinking: The corresponding band is in use.
Off: The corresponding band is disabled.
(white)
WPS setting Use this button when you are connecting the product to a wireless slave device
button (such as a wireless adapter) that is equipped with a WPS function.
To use this function, press this button for 2 seconds or more.
Reset button When you press this button for approximately 5 seconds, the WPS lamp blinks
and the product's settings are initialized (returned to the factory default values).
Do not turn off the product until the lamp stops blinking.
LAN port/
Use these ports to connect this product to PCs or other network devices over a
wired LAN.There is an LED lamp next to each port.
LAN lamp
Lit: The link to the PC or network device connected over a wired LAN has been
1-4 (white)
established.
Blinking: Data is being transferred. Off: The cable is disconnected.
INTERNET port/
Connect the cable from the WAN (Internet) device of the modem (ONU, CTU, and
other types). There is an LED lamp next to the port.
INTERNET lamp
Lit: The link to the WAN device has been established.
(white)
Blinking: Data is being transferred. Off: The cable is disconnected.
DC IN
Connect the AC adapter included with this product to this jack. Do not connect
any AC adapters other than the one included with this product.
(
power supply jack)
Stand You can use the stand included with this product to orient it vertically or
horizontally. For details on how to use the stand, see "Installation method and
precautions" below.
Check the lit status of the lamps.
• Check that the lamps on the modem or similar device
and this product are lit correctly.
Back
POWER:Lit
Installation method and precautions
This product can be installed vertically or horizontally. With either orienta-
tion, be sure to stabilize the product by setting it into the included stand.
Also, with either orientation, take measures to prevent the product from
falling over and the cables from being pulled out. The product falling over
or the cables being pulled out from the connectors while the product is in
operation may lead to malfunctions or data loss.
The stand is not fixed to the product. Connect the cables to the product,
and then set the product into the stand.
◆Vertical orientation
• Use the side with the LED lamps as the front.
• Refer to the illustration and set the product
AC outlet
into the included stand so that the back of the
product fits snugly in the grooves on the
stand.
Back
INTERNET:
Blinking or solid
◆Horizontal orientation
• Use the side with the LED lamps as the top.
• Place the product on the included stand so
that the product is on top of the center,
back part of the stand, and then ensure that
the product is steady.
