Summary of Contents for Jlinks DN-INT01A

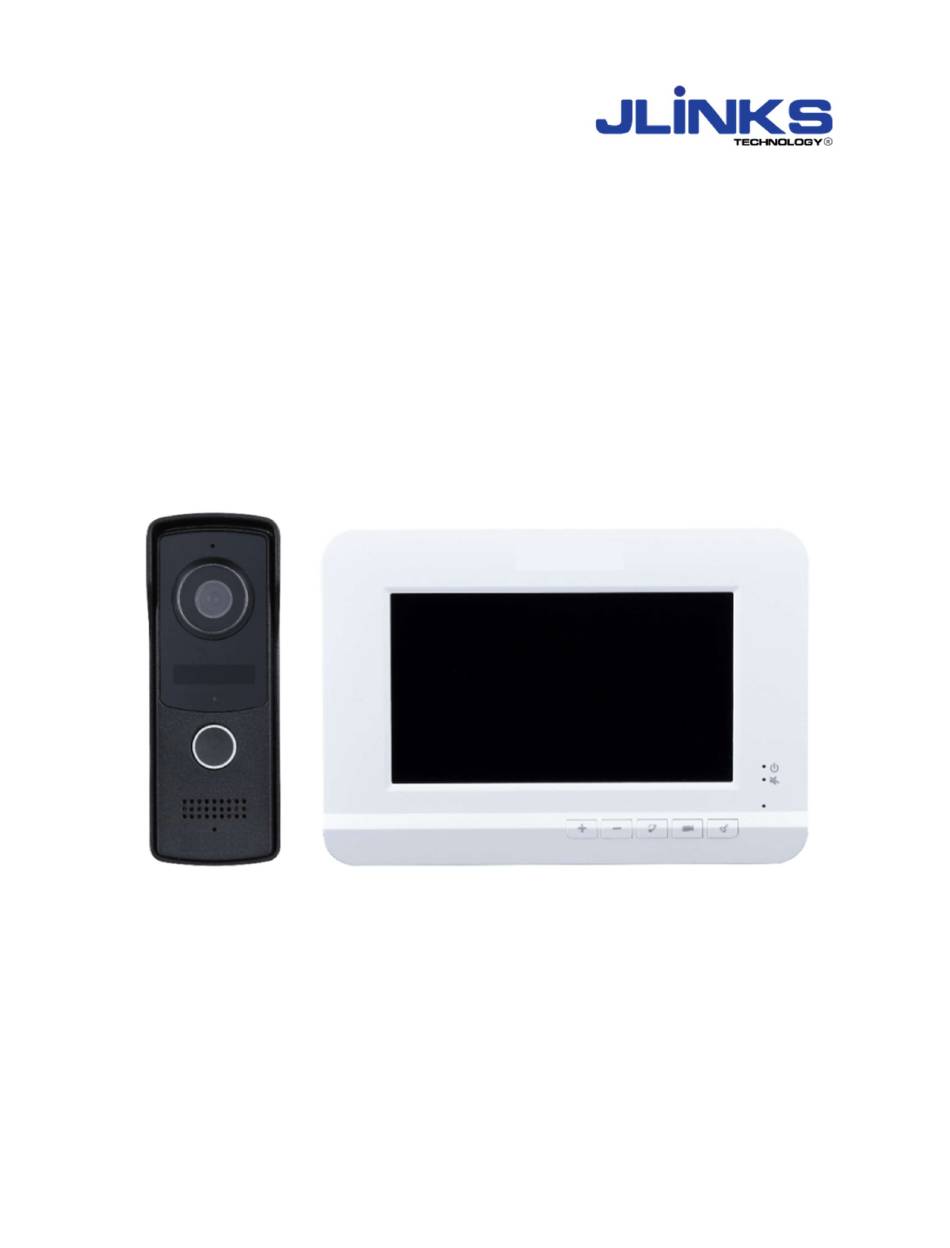

- Page 1 ANALOG INTERCOM DN-INT01A Quick Start Guide V1.2020.03...
- Page 2 General This document mainly introduces structure, installation and wiring of the analog 4-wire video intercom. Device Upgrade Do not cut off power supply during device upgrade. Power supply can be cut off only after the device has completed upgrade and has rebooted. Safety Instructions The following categorized signal words with defined meaning might appear in the Manual.
-
Page 3: Important Safeguards And Warnings
Important Safeguards and Warnings The following description is the correct application method of the device. Please read the Guide carefully before use, in order to prevent danger and property loss. Strictly conform to the Guide during application and keep it properly after reading. - Page 4 Structure - Introduction The analog 4-wire video intercom consists of a voice intercom and a video intercom. It is applicable to buildings (for example residential buildings) for people to do voice calls and video calls. The voice intercom is installed outdoors and video intercom is installed indoors.
-
Page 5: Front Panel
- Front Panel Front panel description Icon Description During video/voice communication, press the button, the volume of the speaker will be decreased. During video/voice communication, press the button, the volume of the speaker will be increased. If you hear the video intercom ringing, press the button, and then you can do voice communication with the person at the voice intercom. -
Page 6: Real Panel
Icon Description – Microphone. – Built-in camera. – Call button. – Speaker. – Water outlet. Liquid in the speaker can flow away through the outlet. - Real Panel Real panel description Description From left to right: Power_1, VIDEO_1, AUDIO_1, and GND_1. From left to right: Power_3, VIDEO_3, AUDIO_3, and GND_3. - Page 7 Installation and Wiring Installation - Video Intercom Installation You need to fix the bracket on the wall by screws, hang the video intercom on the bracket, and then apply silicone sealant to gaps between the device and the wall. Video intercom installation...
- Page 8 - Voice Intercom Installation You can install the voice intercom bracket on the wall, and then hang the voice intercom on the bracket; you can also install the voice intercom cover on the wall, and then hang the voice intercom on the cover. Finally, you need to apply silicone sealant to gaps between the device and the wall.
- Page 9 Voice intercom installation (2) Apply silicone sealant to gaps between the device and the wall...
- Page 10 - Port Connection Rule 4-wire port A of a video intercom can be connected to 4-wire port C of another video intercom to do data communication; 4-wire port B of a video intercom can be connected to 4-wire port D of ...
- Page 11 - Wiring Do not pull the cords violently; otherwise the cords might be broken. During wiring, wrap the cord joints with insulated rubber tape; otherwise short circuit might occur. At most 2 voice intercoms and 3 video intercoms can be wired in one ...
- Page 12 - Three Voice Intercoms and One Video Intercom...
- Page 13 - Two Voice Intercoms and Three Video Intercoms...
