Description
The Ether-Com XR
Single Port Router allows a DMP XR200, XR200-485, or XR2400F Command Processor™ panel to
™
communicate with a DMP SCS-1 Receiver over an existing Ethernet network. Operating as an interface between the
panel and the network, the Ether-Com XR™ mounts inside the panel enclosure and is powered by the panel. The panel
communicates to the Ether-Com XR through a 462N Network Interface Card as shown in Figure 1. This product is for
use with a UL listed alarm control from DMP . This unit may only be connected to a UL limited power supply.
What is included
The Ether-Com XR includes the following:
• Ether-Com XR™ Single Port Router
• Power cable
• Model 356-2 serial cable
What is needed
Additional equipment needed to install and program the Ether-Com XR:
• 386 or better PC
• Windows
with a communication software package such as Hyperterminal
™
• DMP Model 396 programming cable
• 10BaseT Ethernet cable
• DMP XR200, XR200-485, XR2400F and a 462N Network Interface Card
Hardware installation
1. Installation may only be performed by installation personnel.
2. Install the Ether-Com XR into the 3-hole pattern of the panel enclosure as shown in Figure 1.
3. Connect a 10BaseT Ethernet cable from your network to the network connector (J4) of the Ether-Com XR.
4. Connect the Model 356-2 serial cable from the Ether-Com XR's serial connector (J3) to the 462N Network
Interface Card's network cable connector (J7), as shown in Figure 1. Refer to LT-0209 Installation Sheet
for instructions to install and setup the 462N Network Interface Card.
Note: To program the Ether-Com XR, you must use a 396 programming cable. Refer to Programming on
pages 2-4 of this guide for further instruction.
5. Plug the power cable connector into the J1 connector of the Ether-Com XR.
6. Connect the red wire of the power cable to screw terminal 7 on the processor panel. The power
requirement for the router is 200mA @ 9-14 VDC.
7. Connect the black wire of the power cable to screw terminal 10 on the processor panel.
Note: If you are extending the power cable, crimp connectors must be used.
RXD = NO
TXD = NO
Baud Rate = 9600
J3 = FORCE
J6 = HST
YES NO
YES NO
J1
RXD
EXT
9600
4800
J2
2400
1200
300
J3
FORCE CTS
462N jumper settings
Ether-Com XR
J4
TXD
J5
J6
DNET
HST
INSTALLATION SHEET
XR200 Panel
J6
462N
Expansion
Connector
Model 356-2
Serial Cable

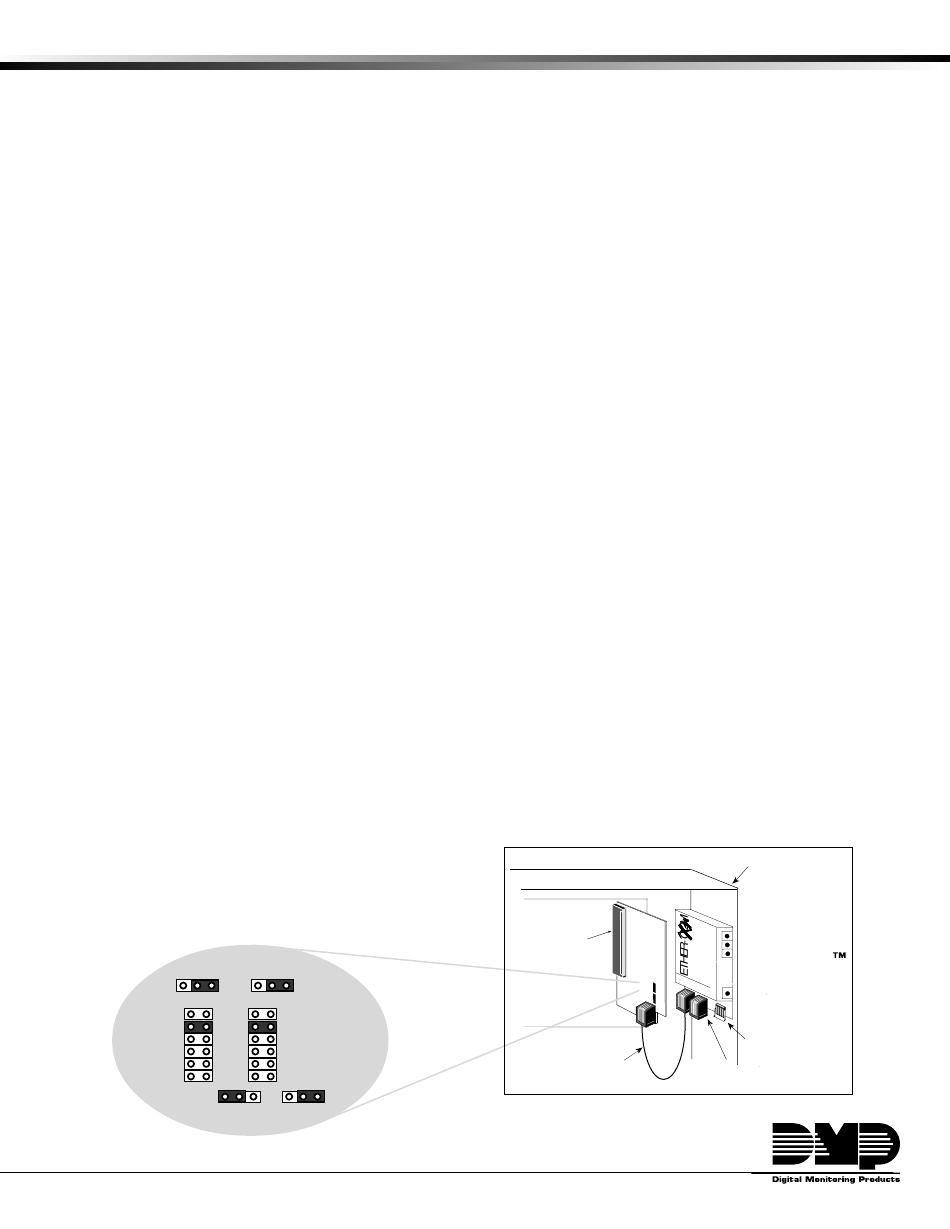

Figure 1: Ether-Com XR Installation
™
350 Enclosure
Ether-Com XR
J7
Power
Connector
Network
Connector
Advertisement
Table of Contents
Summary of Contents for DMP Electronics Ether-Com XR
- Page 1 DMP SCS-1 Receiver over an existing Ethernet network. Operating as an interface between the panel and the network, the Ether-Com XR™ mounts inside the panel enclosure and is powered by the panel. The panel communicates to the Ether-Com XR through a 462N Network Interface Card as shown in Figure 1. This product is for use with a UL listed alarm control from DMP .
- Page 2 Before beginning Programming, disconnect the 356-2 serial cable from J3 of the Ether-Com XR. Connect a Model 396 programming cable from the serial port (J3) of the Ether-Com XR to any unused COM port on your computer. Then follow the steps below the program the Ether-Com XR.
- Page 3 Enter "N". IP Address Configuration IP Address: (123) _ Enter IP address for the Ether-Com XR number and press "ENTER". See your network administrator for number. Example: Press "039.017.010.002" "ENTER". (123) 039.(123) 017. (123) 010. (123) 002 is displayed. Gateway Address Configuration Set Gateway IP Address (N) _ Enter "Y".
- Page 4 Press "9" to Save and Exit Setup Mode. Ether-Com XR programming is now complete. Exit Windows™ communication program. Then, disconnect the Model 396 programming cable from the Ether-Com XR serial connector (J3). Reconnect the Model 356-2 serial cable to the Ether- Com XR serial connector (J3).
