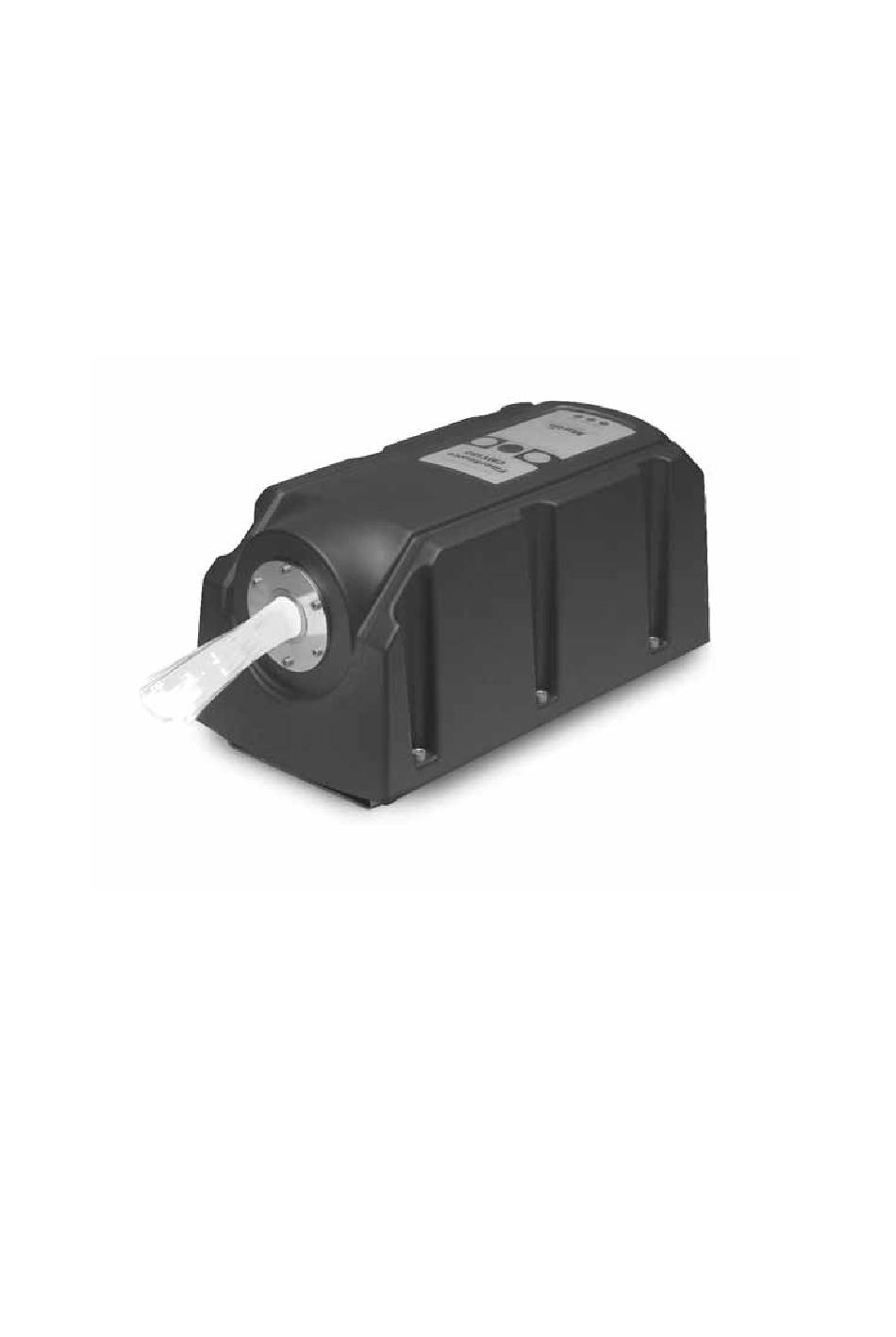

  • Page 1 FiberSource CMY150 user manual...
  • Page 2 © 2001-2006 Martin Professional A/S, Denmark. All rights reserved. No part of this manual may be reproduced, in any form or by any means, with- out permission in writing from Martin Professional A/S, Denmark. Printed in Denmark. P/N 35000102, Rev E...

  • Page 3: Table Of Contents

    Introduction ........4 Unpacking .

  • Page 4: Introduction

    If you have questions about how to operate the fixture safely, please contact your Martin dealer or call the Martin 24-hour service hotline at +45 70 200 201.
  • Page 5 Do not locate the fixture in areas where accidental contact is likely. • Do not modify the fixture or install other than genuine Martin parts. • Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C (104° F).

  • Page 6: Installation

    3 “Fixture orientation and location” on page 11 4 “Data link” on page 12 A C P O W E R Do not connect the FiberSource CMY150 to an electrical dimmer system: doing so can damage the electronics. Warning! Disconnect the fixture from AC power before removing any cover.
  • Page 7 Rewir ing the power supply Always use the setting that most closely matches the local AC mains voltage and frequency. 1 Verify that the FiberSource CMY150 is isolated from AC power. 2 Remove the fixture housing using a 5mm Allen wrench. Transformer...
  • Page 8 210 volts 230 volts 10 11 12 13 14 15 16 10 11 12 13 14 15 16 brown brown black black blue blue grey grey orange (12 V) orange (12 V) orange (12 V) orange (12 V) purple (24 V) purple (24 V) purple (24 V) purple (24 V)

  • Page 9: Fiber Optic Cable

    The FiberSource CMY150 is equipped with a 1.8-meter (5.9 ft.) length of 3- conductor 0.75 mm (~18 AWG) electrical cable for connection to the AC power supply. The cable attaches with 1/4” female spade plugs on the live and neutral wires and a ring terminal on the ground wire.
  • Page 10 1 Install the cable in the adaptor ferrule according to the instructions supplied with the adaptor ferrule. 2 Insert the adaptor ferrule into the port of the FiberSource CMY150. Warning If your adaptor ferrule is the smaller 30 mm diameter adaptor (P/N 91611035), then you need to insert it into an adaptor ring to increase the diameter to 38 mm.

  • Page 11: Fixture Orientation And Location

    Do not: • Bury the FiberSource CMY150 or otherwise locate it in an unventilated space. • Mount the FiberSource CMY150 on a wall in a vertical alignment. It may be mounted horizontally (see “Fastening the FiberSource CMY150 to a structure” on page 11).

  • Page 12: Data Link

    FiberSource CMY150s. C ab le an d ju ncti on s The FiberSource CMY150 provides a dual 1.8 meter (5.9 ft.) 24 AWG cable with locking 3-pin male and female XLR connectors for data connection. The male cable is the data input and the female cable is the data output.
  • Page 13 Adaptors Adaptors may be required to connect the FiberSource CMY150 to the controller or other 5-pin devices. Adaptor cables for indoor use are available from Martin. The adaptor cables are wired as shown below. 5-pin to 3-pin 3-pin to 5-pin...

  • Page 14: Settings

    This section describes how to set the control address, personalities, and clock. To set user options you need a Martin MP-2 Uploader that has been loaded with the FiberSource CMY150’s control software and connected to the fixture or data link.

  • Page 15: Personality Settings

    Important! When setting the address, either use single-fixture mode or isolate all other fixtures from the uploader. To set the control address: 1 Prepare an upload device as described in the uploader user manual. If you know the address to which the fixture is currently set, that is, the address to change from, connect the uploader to the data link and use single-fixture mode.

  • Page 16: Clock

    C L O C K The FiberSource CMY150 has a battery operated 24-hour clock that can start and stop stand-alone operation. To set the clock: 1 Prepare and connect an upload device as described in the MP2 Uploader manual. Apply power to the fixture.

  • Page 17: General Operation

    ENERAL OPERATION G E N E R A L G U I D E L I N E S For optimum lamp life, turn off the lamp whenever illumination is not required for extended periods of an hour or more. However it is a good idea to keep the fixture power on so that the fans continually operate, regardless of whether or not the lamp is lit.
  • Page 18 When the fixture is powered up: 1 A check is performed on the software - both LEDs will blink yellow. 2 If the test is: • Successful, both LEDs will blink green. • Unsuccessful, the LEDs will blink yellow and red. In this case perform a DMX upload and restart the fixture.

  • Page 19: Stand-Alone Operation

    The term stand-alone is used to mean that the FiberSource CMY150 is not connected to a controller, but is programmed with a series of up to 20 scenes that play continuously in a loop.
  • Page 20 3 Select from the MP-2 menu. 4 Select the most recent FiberSource CMY150 software from the list. (Note that these files are numbered according to the firmware level. The firmware version that is installed in the FiberSource CMY150 is displayed by its LEDs on power up. The...
  • Page 21 200s may be achieved by linking them together and using the synchronized stand- alone operation function in which one unit - only - transmits synchronization signals to the others. Note that only FiberSource CMY150 and Exterior 200 fixtures are supported for synchronized stand-alone operation.
  • Page 22 D E F I N I N G A M A S T E R F I X T U R E No more than one fixture may be the master. Any fixture on the link, however, regardless of its position, may be the master. M a s t e r / c l i e n t S t a n d a l o n e 1 From the...
  • Page 23 S E T T I N G A T I M E R T R I G G E R Stand-alone operation can be set for one, or two, periods, during a 24 hour period, using the built-in clock. If both the clock and the light sensor are used, operation starts, within the times set, or whenever it is darker than the light-level setting.
  • Page 24 Each scene has a dynamic part - the fade - during which effects move to the scene’s programmed positions, and a static part - the wait - where the effects in the scene are expressed. The duration of the fade and wait is programmed individually for each scene.
  • Page 25 S C E N E M A N A G E M E N T Once you have specified a mix of effects, you can store the scene using the options available under the Program menu: Save settings in the current scene. St or e sc en e Save settings in a new scene at the end of the sequence.

  • Page 26: Executing Stand-Alone Scenes With An Mc-X Controller

    1 Connect the MC-X controller to the FiberSource CMY150’s data input. If multiple FiberSource CMY150s are connected in a data link, plug the controller into the first fixture in the link.

  • Page 27: Controller Operation

    ONTROLLER OPERATION The FiberSource CMY150 may be programmed and operated with any lighting controller that is compatible with the USITT DMX standard. This section describes how to operate the fixture with a controller. See the DMX protocol starting on page 36 for specific control values, and “Data link”...
  • Page 28 Tracking control is enabled by setting channel 7, the speed channel, to a decimal value from 0 to 2. Fades are then programmed using the controller’s cross-faders. The FiberSource CMY150 has a digital filter algorithm that averages several updates to ensure smooth movement.

  • Page 29: Service

    Warning! Disconnect the fixture from power before removing the fixture housing. L A M P R E P L A C E M E N T The FiberSource CMY150 uses one of the following discharge lamps. Lamp Efficiency Color Temp.
  • Page 30 3 Remove the screws on the cover-plate over the lamp and then remove the cover- plate. 4 Gently remove the lamp from its housing. 5 Remove the old lamp from the connecting plug. 6 Clean the glass bulb and reflector of the new lamp with an alcohol wipe or a clean, lint-free cloth wetted with alcohol.

  • Page 31: Cleaning

    C L E A N I N G Wipe off loose dirt with a damp cloth. Clean the housing with a soft brush or sponge and a mild, non-abrasive car washing detergent. Cleaning the fan an d air filter To maintain adequate cooling, dust must be cleaned from the fan and air filter periodically.

  • Page 32: Firmware Updates

    The installed firmware version number is displayed by the LEDs on power up (see “The LEDs and fixture operating status” on page 17). Firmware is installed using a Martin uploader or a 4064 DMX interface for the Martin LightJockey controller. The procedure is found in the MP-2 user manual and the Martin Software Uploader online help file.

  • Page 33: Fuse Replacement

    Warning! Never replace fuses with ones of a different rating! The FiberSource CMY150 has 3 fuses. The main fuse is located on the small circuit board and the secondary fuses for the low-voltage power supplies are located on the main circuit board.

  • Page 34: Troubleshooting

    ROUBLESHOOTING Problem Probable cause(s) Remedy No power to fixture. Check power cables. No response from fixture when Primary fuse blown. Replace fuse. power is applied. Secondary fuse blown. Replace fuse. Controller not connected. Connect controller. Incorrect addressing of the Check address setting on fixtures.
  • Page 35 Problem Probable cause(s) Remedy Wait a few minutes. Lamp will Lamp too hot to strike. strike when cool. Check and correct voltage Incorrect voltage setting. setting. Fan runs but there is no light. Burned out lamp. Install new lamp. Allow to cool. Fixture overheating.

  • Page 36: Dmx Protocol

    PROTOCOL Start code = 0 DMX channel Value Percent Function Reset, Lamp On/Off 0 - 207 0 - 81 Reserved (no change) 208 - 217 82 - 85 Reset fixture* * If the command is 218 - 227 85 - 89 Reserved (no change) disabled, set channels 228 - 237...

  • Page 37: Control Menu

    MP-2 CONTROL MENU Level 1 Level 2 Level 3 Level 4 Level 5 Effect (default settings bold) 1-512 Select control address. address Disable stand-alone operation. Enable SA Enable stand-alone operation. Disable light level operation. Enable Enable light level operation. Sets the light trigger level. 1 is darkest, Light level Level 1-255...
  • Page 38 Level 1 Level 2 Level 3 Level 4 Level 5 Effect (default settings bold) Dimmer 0-255 Set dimmer level. Cyan 0-255 Set cyan level. Magenta 0-255 Set magenta level. Yellow 0-255 Set yellow level. Random off Disable random color. CMY - slow Random colors, slow CMY - medium Random colors, medium...
  • Page 39 Level 1 Level 2 Level 3 Level 4 Level 5 Effect (default settings bold) Reset Reset effects to home position. Lamp on Turn on lamp. Lamp off Turn off lamp. Open Move all effects to open position. All effects Closed Move all effects to closed position.

  • Page 40: Specifications

    PECIFICATIONS P H Y S I C A L Length: ........... . 398 mm (15.7 in) Width: .
  • Page 41 O R D E R I N G I N F O R M A T I O N FiberSource CMY150, 230V, 50Hz: ....... P/N 90523000 FiberSource CMY150, 120V, 60Hz: .
