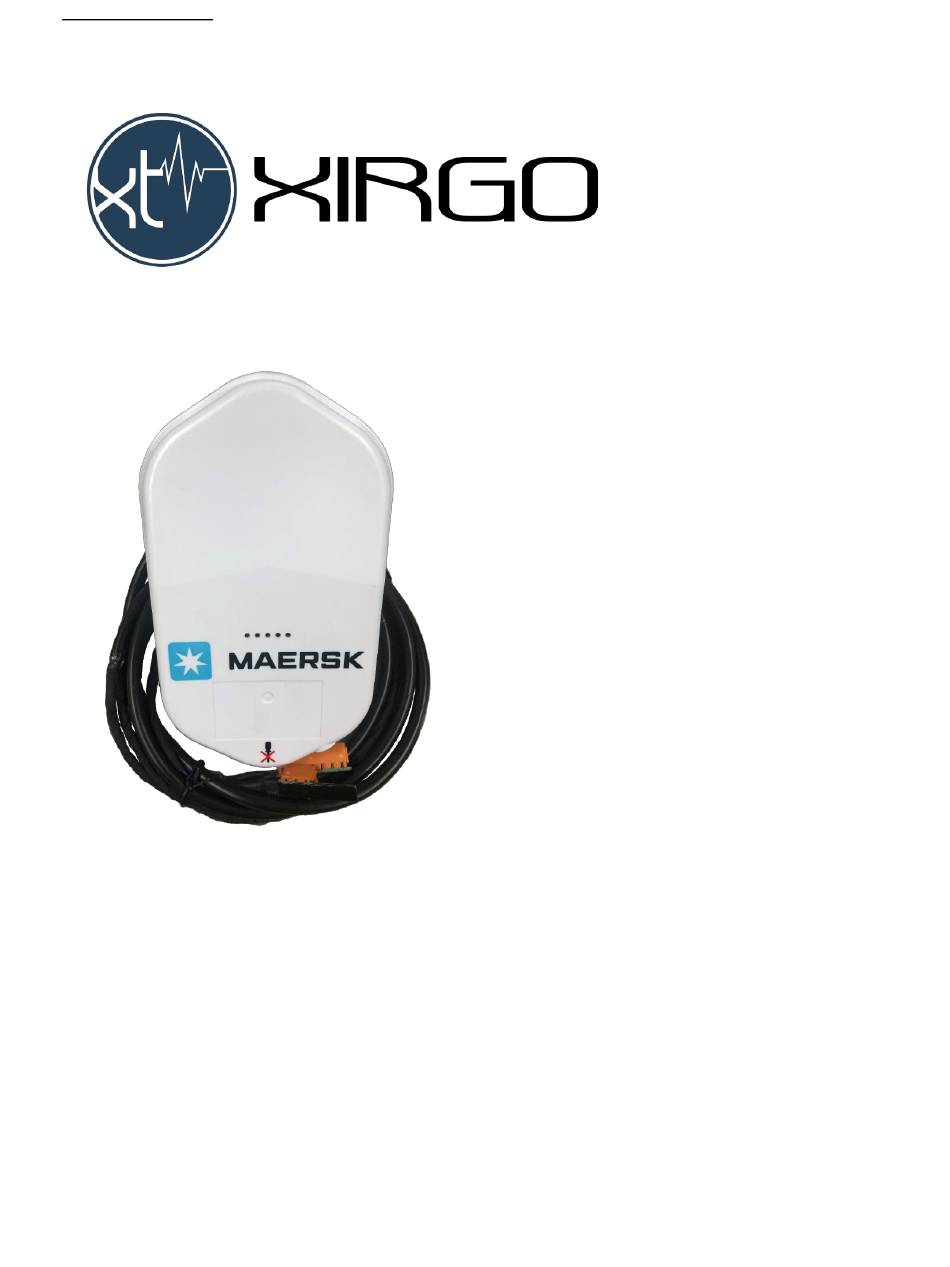

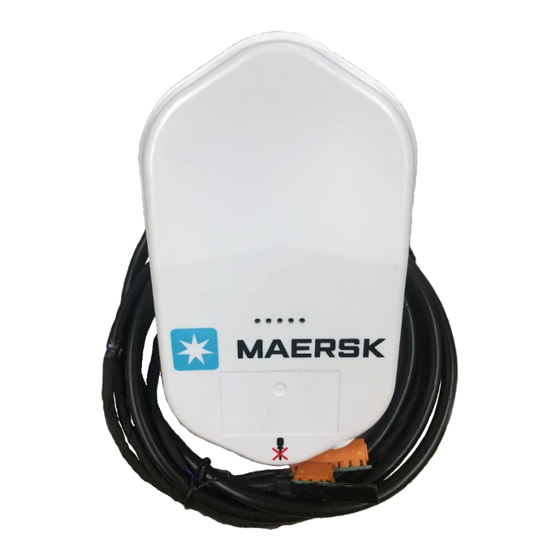

XT6264 User Guide
XT6264 User Guide
Revised July 19, 2019
This user guide contains supplemental information about the XT6264.
P a g e
1 | 14
CONFIDENTIAL AND PROPRIETARY
Disclosure, storage and use subject to non-disclosure agreement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XT6264 and is the answer not in the manual?

Questions and answers

Summary of Contents for Xirgo XT6264

  • Page 1 XT6264 User Guide XT6264 User Guide Revised July 19, 2019 This user guide contains supplemental information about the XT6264. P a g e 1 | 14 CONFIDENTIAL AND PROPRIETARY Disclosure, storage and use subject to non-disclosure agreement...

  • Page 2: Table Of Contents

    XT6264 User Guide ONTENTS Contents ..............................2 Installation Procedure ........................... 3 Terminology ..........................3 Installation ............................ 3 Testing After Installation ....................... 7 LED Behavior ............................8 Test Mode ............................. 8 3.1.1 LED Color Table ........................8 3.1.2 RCD3 LED Status Indication Mode ..................8 Install Mode ..........................

  • Page 3: Installation Procedure

    ERMINOLOGY Term Description Unit Xirgo XT6264 Asset Customer product that the XT6264 is mounted to. 2.2 I NSTALLATION Figure 1: Hole Location Figure 2: Size of hole – 19mm 1. Install the unit bracket. 2. Secure the unused high voltage communication connector into unit bracket.
  • Page 4 XT6264 User Guide Figure 3: Ribbon Harness 6. Attach the TK bracket to the unit. 7. Fit the unit with the bracket TK controller and tighten the upper screws. 8. Connect the Power Cable Harness X1 RED wire to the Transformer X1 tap, and X2 BLACK wire (with ground terminal) to the Controller Chassis.
  • Page 5 XT6264 User Guide Figure 5: X1 red to X1 tap Figure 6: X2 Black to ground chassis 9. Connect the 7 pin from the unit ribbon harness to the unit. 10. Bundle the cable by using cable ties and fix them to the unit.
  • Page 6 XT6264 User Guide P a g e 6 | 14 CONFIDENTIAL AND PROPRIETARY Disclosure, storage and use subject to non-disclosure agreement...

  • Page 7: Testing After Installation

    XT6264 User Guide 2.3 T ESTING FTER NSTALLATION 1. Connect the power plug to the power source. 2. Put the unit into install mode (ON/OFF button) – see Enter Install Mode for further description. 3. Observe installer LED for green pass – see observe Install LED below for further description.

  • Page 8: Led Behavior

    XT6264 User Guide 3 LED B EHAVIOR 3.1 T When the device is in Active mode (i.e., not in ship mode or low power sleep mode), a push and release of the button when the green LEDs start blinking will cause the device to display status using LEDS as described below.
  • Page 9 XT6264 User Guide LED Status Description GPS Lock Left-most LED ON means GPS is locked GPS Number Each LED following the left most LED represents three GPS satellites. Satellite numbers in between groups of three will be rounded up; e.g., four or five satellites in view will be represented with two LEDs.
  • Page 10 XT6264 User Guide Battery Status (Yellow) • All five yellow LEDs will flash yellow for two seconds to indicate the device will provide battery status. • From left to right the backup battery value is indicated using solid yellow LEDs, which are held for five seconds.

  • Page 11: Install Mode

    XT6264 User Guide 3.2 I NSTALL 3.2.1 Entering Install Mode The device must be active, i.e., either on battery hold off period or external power. This is not applicable during battery profile wakes (periodic, listen, motion start/stop). Press and hold the button until the blue LED is blinking; release the button. The device will reboot into install mode indicated by the fast blinking green LED.

  • Page 12: Regulatory Statements

    (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause Changes or modifications made to this equipment not expressly approved by Xirgo Technology may void the FCC authorization to operate this equipment.
  • Page 13 équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. This radio transmitter (IC: 10281A-XT6264, Model Number: XT6264) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated.
  • Page 14 XT6264 User Guide 2G/GSM LTE Antenna Specifications Parameter Band 5 Band 2 Channel Uplink Downlink Uplink Downlink Frequency (MHz) 880-915 925-960 1710.2-1785.2 1804.8-1879.8 Peak Gain (dBi) <2 <-5.9 <3.7 <2.8 3G/UMTS LTE Antenna Specifications Parameter Band 5 Band 2 Band 8...
