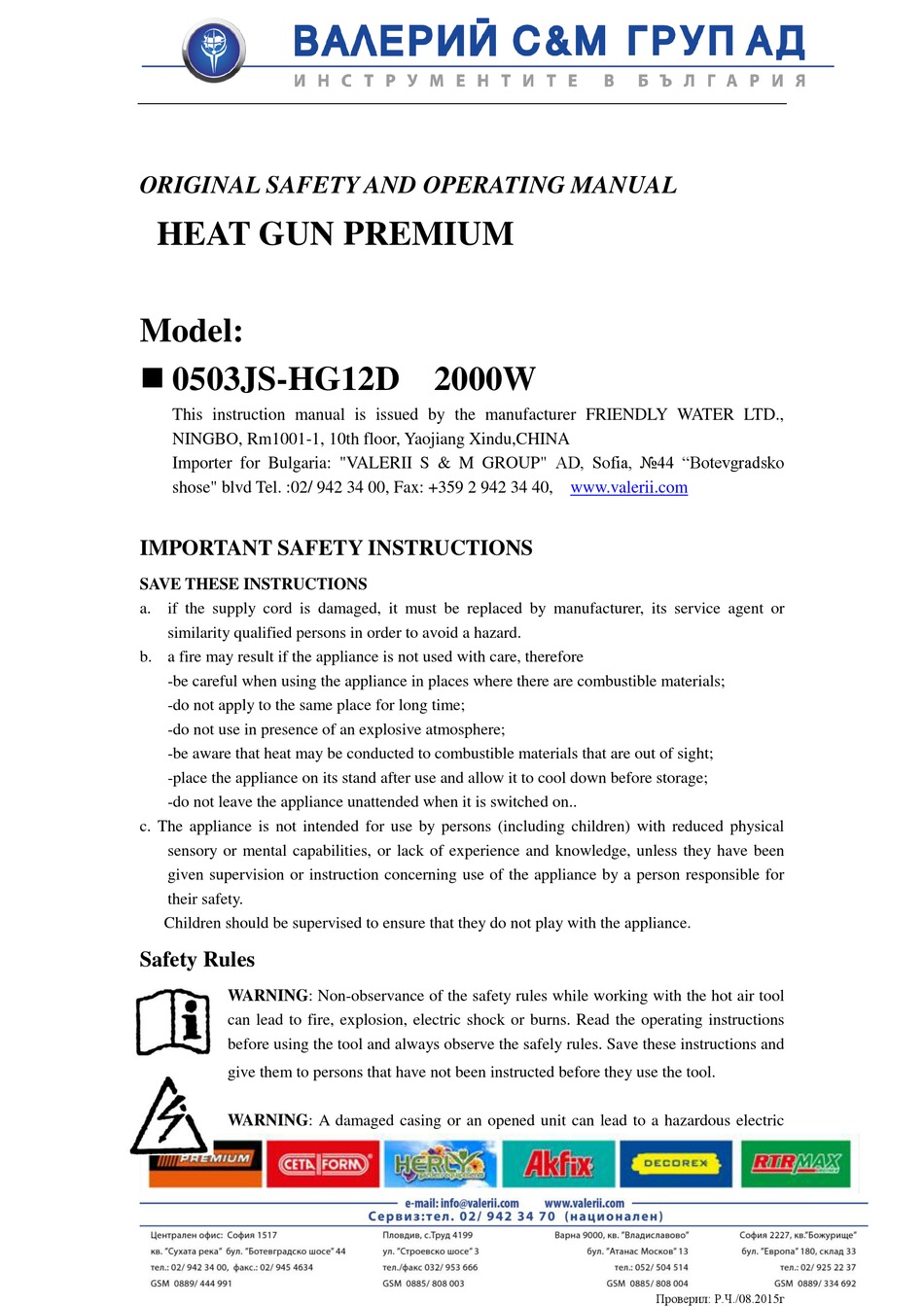

ORIGINAL SAFETY AND OPERATING MANUAL
HEAT GUN PREMIUM
Model:
 0503JS-HG12D 2000W
This instruction manual is issued by the manufacturer FRIENDLY WATER LTD.,
NINGBO, Rm1001-1, 10th floor, Yaojiang Xindu,CHINA
Importer for Bulgaria: "VALERII S & M GROUP" AD, Sofia, №44 "Botevgradsko
shose" blvd Tel. :02/ 942 34 00, Fax: +359 2 942 34 40,
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
a. if the supply cord is damaged, it must be replaced by manufacturer, its service agent or
similarity qualified persons in order to avoid a hazard.
b. a fire may result if the appliance is not used with care, therefore
-be careful when using the appliance in places where there are combustible materials;
-do not apply to the same place for long time;
-do not use in presence of an explosive atmosphere;
-be aware that heat may be conducted to combustible materials that are out of sight;
-place the appliance on its stand after use and allow it to cool down before storage;
-do not leave the appliance unattended when it is switched on..
c. The appliance is not intended for use by persons (including children) with reduced physical
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
Safety Rules
WARNING: Non-observance of the safety rules while working with the hot air tool
can lead to fire, explosion, electric shock or burns. Read the operating instructions
before using the tool and always observe the safely rules. Save these instructions and
give them to persons that have not been instructed before they use the tool.
WARNING: A damaged casing or an opened unit can lead to a hazardous electric
www.valerii.com
Проверил: Р.Ч./08.2015г

Advertisement

loading
Need help?

Need help?

Do you have a question about the PREMIUM 0503JS-HG12D and is the answer not in the manual?

Questions and answers

Summary of Contents for Friendly Water PREMIUM 0503JS-HG12D

  • Page 1 HEAT GUN PREMIUM Model:  0503JS-HG12D 2000W This instruction manual is issued by the manufacturer FRIENDLY WATER LTD., NINGBO, Rm1001-1, 10th floor, Yaojiang Xindu,CHINA Importer for Bulgaria: "VALERII S & M GROUP" AD, Sofia, №44 “Botevgradsko shose" blvd Tel. :02/ 942 34 00, Fax: +359 2 942 34 40, www.valerii.com...
  • Page 2 shock. Do not open the unit and do not put a damaged unit into operation. Do not drill into the casing, e.g. to attach a company label. Before any work on the unit, pull the mains plug. WARNING: A damaged power cord can lead to a hazardous electric shock. Check the power cord regularly.
  • Page 3: Technical Data

    WARNING: Danger of injury! The hot air jet can injure persons or animals. Touching the hot tube of the heating element or the nozzle leads to skin burns. Keep children and other persons away from the unit. Do not touch the tube of the heating element or the nozzle when they are hot.
  • Page 4: Regulating The Air Flow

    Applications Shrinking of shrinkdown tubing, solder connectors and solder terminals, packaging and electrical components. Deforming of articles made from acrylic, PVC, and polystyrene, tubing, plates and profiles, as well as moist woods. Welding of thermoplastic polymer, flooring materials of PVC and linoleum, PVC-coated fabric, tarpaulins and foils.
  • Page 5: Maintenance And Cleaning

    Cool-air Stage The air flow can be regulated, the temperature is set to 50 °C (cannot be regulated) The cool-air stage is suitable for cooling down a heated-up workpiece or for drying paint. It is also suitable for cooling down the power tool before placing it down or changing nozzles.
  • Page 6 Model: 0503JS-HG12D 2000W Prezenta instructiune este emisa de catre producator: FRIENDLY WATER LTD. NINGBO, Rm1001-1, 10th floor, Yaojiang Xindu, China Importator pentru Bulgaria: "VALERII S&M GROUP" SA, Sofia, brd. Botevgradsko shose 44 Tel.: +359 2 / 942 34 00, Fax: +359 2 942 34 40, www.valerii.com...
  • Page 7 instruiti, cu privire la utilizarea dispozitivului, de catre persoana calificata cu privire la securitatea acestora. Copii trebuie supravegheati pentru a fi siguri ca nu se joaca cu dispozitivul. Reguli de siguranta AVERTISMENT: Nerespectarea regulilor de siguranta pe timp de lucru cu dispozitivul cu aer cald, poate duce la incendii, explozii, electrocutari sau arsuri.
  • Page 8 AVERTISMENT: Pericol de explozie! Pistolul cu aer cald poate in mod exploziv sa aprinda fluidele si gazele inflamabile. Nu lucrati in mediu potential exploziv. Verificati mediul inconjurator inainte de a incepe activitatea. Nu continuati sa lucrati in prezenta containerelor inflamabile de gaz sau in apropiere de acestea, chiar si in situatia in care acestea sunt goale.
  • Page 9 uscatorului de par. Dispozitivul emana o caldura mult mai mare decat uscatorul de par. Nu utilizati pentru a incalzi lichide sau pentru a usca anumite obiecte sau materiale, care se pot deteriora sub actiunea aerului cald. AVERTISMENT: Pornirea accidentala sau cuplarea neasteptata a elementului de incalzire dupa actionarea releului termic poate duce la leziuni grave.
  • Page 10 Destinatie de utilizare Atunci cand se respecta conditiile de siguranta si se utilizeaza accesorii originale, acest pistol cu aer cald este destinat pentru toare aplicatiile cu aer cald, care sunt descrise in prezentul manual de utilizare. Aplicatii Reducerea prin contractie a tuburilor la instalatiile sanitare, legaturile sudate si conexiunile sudate, componentele de montaj si cele electrice.
  • Page 11 Pentru marirea fluxului de aer, apasati butonul “+” la fluxul de aer – buton de control 8, pentru reducerea fluxului de aer, apasati “-“. Setarea temperaturii Temperatura poate fi reglata numai in etapa de aer cald. Pentru a se mari temperatura, apasati butonul “+”...
  • Page 12 Atunci cand schimbati un dispozitiv vechi cu unul nou, distribuitorul este obligat de catre legislatia in vigoara sa ridice masina veche si sa o elimine fara cost. Проверил: Р.Ч./08.2015г...
  • Page 13 Carcasa A Cablu de alimentare Brida de otel pentru cablu Bloc terminal Condensator Maner de prindere Carcasa spate LCD buton LCD capac 10 Tabel de imprimare 11 Carcasa B 12 Motor 13 Cheie 14 Suport pozitionare motor 15 Capac ventilator 16 Ventilator 17 Capac ventilator 18 Izolator...
  • Page 14: Важни Инструкции За Безопасност

    Модел: 0503JS-HG12D 2000W Тази инструкция за употреба е издадена от производителя: FRIENDLY WATER LTD. NINGBO, Rm1001-1, 10th floor, Yaojiang Xindu, Китай Вносител за България: „ВАЛЕРИЙ С и М ГРУП” АД, София, бул. Ботевградско шосе 44 Тел. :02/ 942 34 00, Факс: +359 2 942 34 40, www.valerii.com ВАЖНИ...
  • Page 15 Децата трябва да се надзирават, за да не си играят с уреда. Правила за Безопасност ПРЕДУПРЕЖДЕНИЕ: Неспазването на правилата за безопасност докато работите с машината за горещ въздух може да доведе до пожар, експлозия, токов удар или изгаряния. Преди употреба на инструмента, прочетете...
  • Page 16 може експлозивно да запали възпламеними течности и газове. Не работете в потенциално експлозивна среда. Проверете заобикалящата среда, преди да започнете работа. Не продължавайте да работите при горивни или газови контейнери или в близост до тях, дори когато са празни. ПРЕДУПРЕЖДЕНИЕ: Опасност от пожар! Топлината може да достигне възпламеними...
  • Page 17 сешоар за коса. Той отделя много по-голяма топлина от сешоара. Не го използвайте да загрявате течности или да сушите предмети или материали, които се разрушават под влиянието на горещ въздух. ПРЕДУПРЕЖДЕНИЕ: Непреднамереното стартиране или неочакваното включване на нагряващия елемент след задействане на температурното реле може...
  • Page 18 Предназначение за употреба Когато се спазват правилата за безопасност и се използват оригинални аксесоари, този пистолет за горещ въздух е предназначен за всички приложение с горещ въздух, които са записани в тази инструкция за работа. Приложения Смаляване на стесняваща се тръбна инсталация, споени свързващи части и споени изводи, монтажни...
  • Page 19 За увеличаване на въздушния поток, натиснете върху "+" на въздушния поток контролния бутон 8, за намаляване на потока на въздуха, натиснете върху "-". Настройка на температурата Температурата може да се регулира само в етапа на горещ въздух .За да се повиши...
  • Page 20 Проверил: Р.Ч./08.2015г...
  • Page 21 Корпус А Кабелен накрайник Стоманена връзка на кабела Клемна дъска Кондензатор Захващаща дръжка Заден корпус LCD бутон LCD Капак 10 Печатна плочка 11 Корпус Б 12 Мотор 13 Ключ 14 Плоскост за поставяне на двигателя 15 Капак на вентилатора 16 Вентилатор 17 Капак...
  • Page 22 23 Винт ST3X16 24 Етикет 25 Винт ST3X14 26 Винт ST3X14 27 Винт M3X10 28 Незаземен захранващ кабел с две жици 29 Винт ST3X14 30 Печатна плочка 31 Винт M2.5X4 32 Винт M2.5X6 33 Вътрешен кабел Проверил: Р.Ч./08.2015г...
