Griff
Service Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Griff and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nilfisk FOOD Griff

Summary of Contents for Nilfisk FOOD Griff

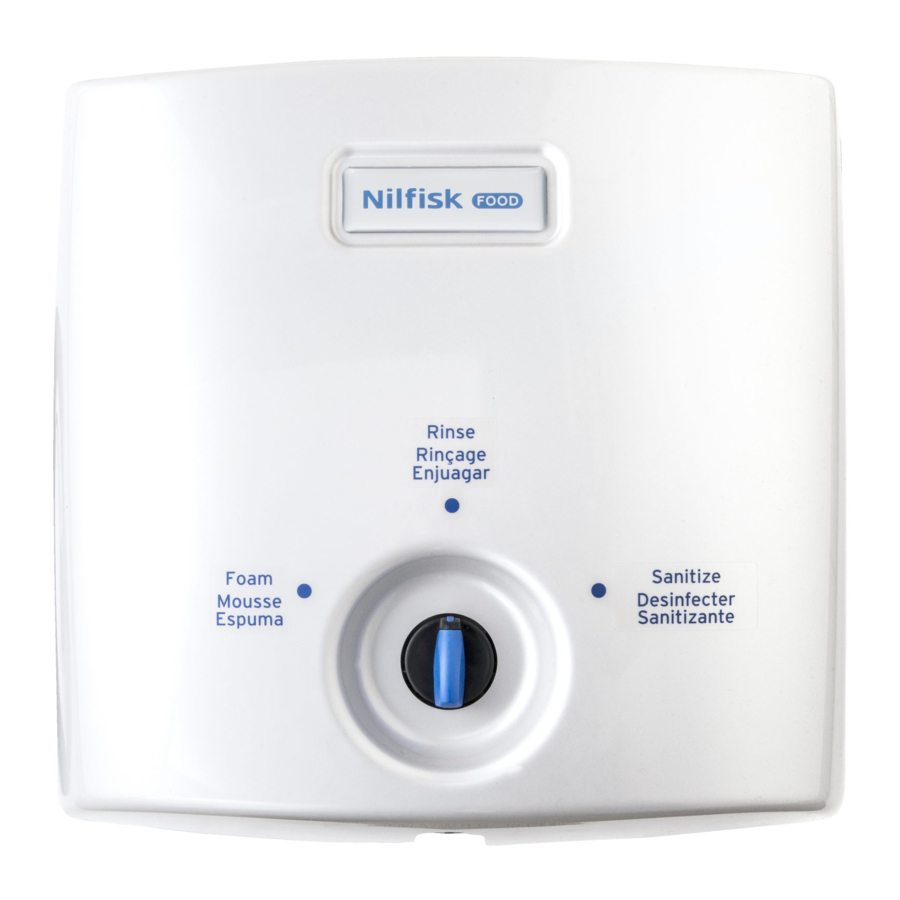

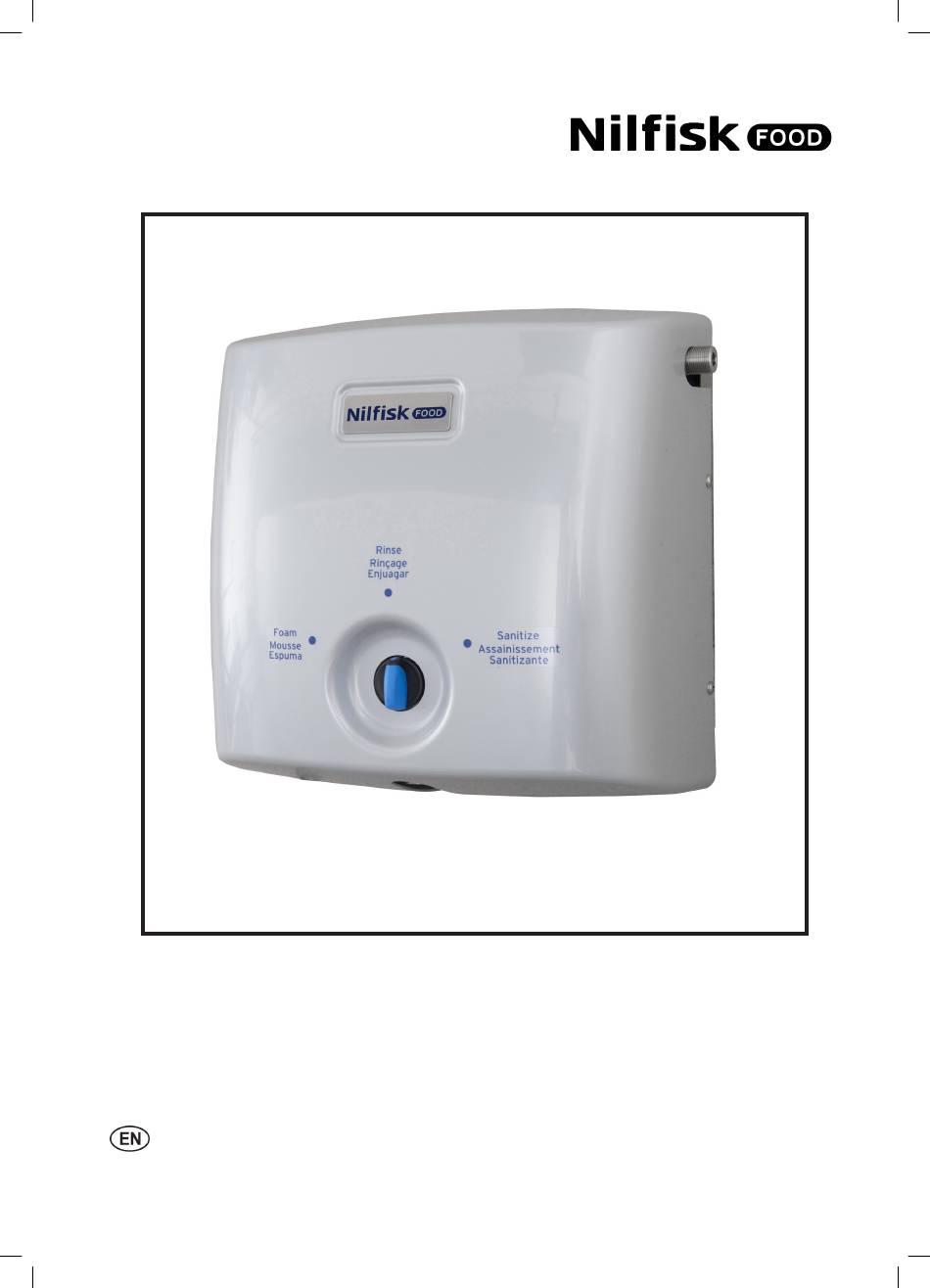

  • Page 1 Griff Service Manual...

  • Page 2: Table Of Contents

    Layout for Griff........
  • Page 3 7. For a portable appliance - To reduce the risk of electrical shock, do not put Griff in water or other liquid. Do not place or store appliance where it can fall or be pulled into a tub or sink.

  • Page 4: Symbol

    2. Symbol Instruction for Use - read before Use Wear glasses when using the unit. Wear gloves and suitable clothing when using the unit. Note: A potentially damaging situation. Possible consequences: The product or something in its vicinity could be damaged. Prevention. Caution: A dangerous situation.Possible consequences: light or minor injuries.

  • Page 5: Description

    Using Hygiene Chemicals: Do not change the settings made 3. Description The Griff unit can be used with or recommended by the supplier of foam detergents and disinfectants. the hygiene chemicals. The Griff unit is a complete hy- The supply of detergents and dis-...

  • Page 6: Layout For Griff

    3.1. Layout for Griff. Single user unit 110002426 1. Water inlet 2. Pump 3. Flow Switch 4. Injector block 5. Chemical inlet, block 6. Sanitizer inlet, block 7. Air inlet, block 8. Compressor 9. Water outlet 10. Switch, Compressor 11. Control box...

  • Page 7: Operating Diagrams

    3.2. Operating Diagrams according to ISO14617 110003126 Filter. FST. Flow-switch and -trigger. Check valve. Centrifugal pump. Ejector. Hydraulic valve. Hose connection. Air supply. Outlet. Inlet, detergent. Water inlet. Compressor Regulating valve...

  • Page 8: Identification Plate

    3.3. Identification Plate Nil sk FOOD, Blytækkervej 2, DK - 9000 Aalborg Art. no. 110006234 Date 25.10.2013 S/N 94750 Pressure Max 145,0 PSi Weight 66,0 Lbs Water Max 3,0 gal/min Max Temp 158° F V 110-115 Hz 60 A 11 1.

  • Page 9: General Information

    4. General information 6. Placing/application • Do not use the unit outdoors. For safety reasons it is important to read this manual be- • The unit must be placed in frost-free rooms only. fore mounting the equipment. In addition, the legislation •...

  • Page 10: Power Supply

    DANGER - Improper connection of the equipment- 9. Power supply grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service- man if the grounding instructions are not completely The power installation must allways be in accordance understood, or if in doubt as to whether the appliance with local legislation regardless what this manual says.

  • Page 11: Connecting The Unit

    Connecting the unit 12. Preparing the unit Before the unit can be put into operation Water, NOTE: Cleaning products and Electricity must be connected Before use, the unit must be filled with to the unit. water. 11.1. Connections NOTE: 11.1.1. Water: Make sure the power supply to the unit is Connect the inlet water hose to the unit, a 3/4"...

  • Page 12: Testing The Sanitise Function

    5. Close the ball valve / pistol to stop foaming, the 14. Service / Maintenance unit will automatically stop, it can take up to 10 - instructions 20 seconds after the Ball valve / Pistol is closed before the unit stops. •...

  • Page 13: Specifications

    17. Specifications Technical Data Water 110Vac 60 Hz version Connection type inlet 3/4" GHT (ASME B1.20.7 3/4" - 11,5-NH) Recommended inlet pipe dimensions (min) 3/4" Local outlet 1/2" quick coupler Pump pressure 52 psi / 3,7 bar Operational pressure 82-116 psi / 5,7-8 bar Operational flow range 1,5-3 gal/min / 5-11 l/min Water consumption - foaming...

  • Page 14: Electric Diagram

    18. Electric diagram...

  • Page 15: Pump Curve

    19. Pump curve CM1-3 1*115 - 110/115, 60Hz 1* 115 - 230 V, 60 Hz 110003062...
  • Page 16 Item no: 110006232C...
  • Page 17 Recommended spare parts Pièces de rechange conseillées Piezas de recambio recomendadas...
  • Page 18 110003058b...
  • Page 19 Description Désignation Designación Fuse 12 A 110003166 83900071 Fusible 12 A Fusible 12A Fuse 0,315 A 110003167 83900070 Fusible 0,315 A Fusible 0,315 A Controller board 110002644 92214059 Carte processeur Placa controladora Hose Teflon 110003159 92214026 Téflon de flexible Conducto de Teflon Screws for Cover 110003168 88020017...
  • Page 20 1 17 3 110006636 110003230...
  • Page 21 Description Désignation Designación 110003096 Air Check valve • 110004434 Product check valve • 110005516 O-ring kit (110002952) 110002501 Selector valve axel 110005516 O-ring kit (110002956) 110005516 O-ring kit (110003172) 110003156 Selector knob 110002633 Block cpl. 110003205 Mounting kit for cart 110003204 Mounting kit for unit on cart 110003197...
  • Page 22 Installation 17,2 20,3 3/4" GHT 110004860A:USA...
