- Page 1 PN-201 ASUKA On-line Navigation and Multimedia Box User Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction ..................4 Connect Your Box ................. 5 II.1 Hardware ................................5 II.2 System Configuration ..........................6 III. Quick Start Guide ................. 7 III.1 Turning the Power On ..........................7 III.2 User Interface ..............................8 III.3 Common Operation ........................... 8 III.4 WiFi Connection ............................ - Page 3 PRECAUTIONS IMPORTANT o ensure proper use, please read through this manual before using this product. It is especially important that you read and observe WARNINGS and CAUTIONS in this manual. Please keep the manual in a safe and accessible place for future reference. WARNINGS: (To prevent accidents and damage) DO NOT install any unit or wire any cable in a location where:...
-
Page 4: Introduction

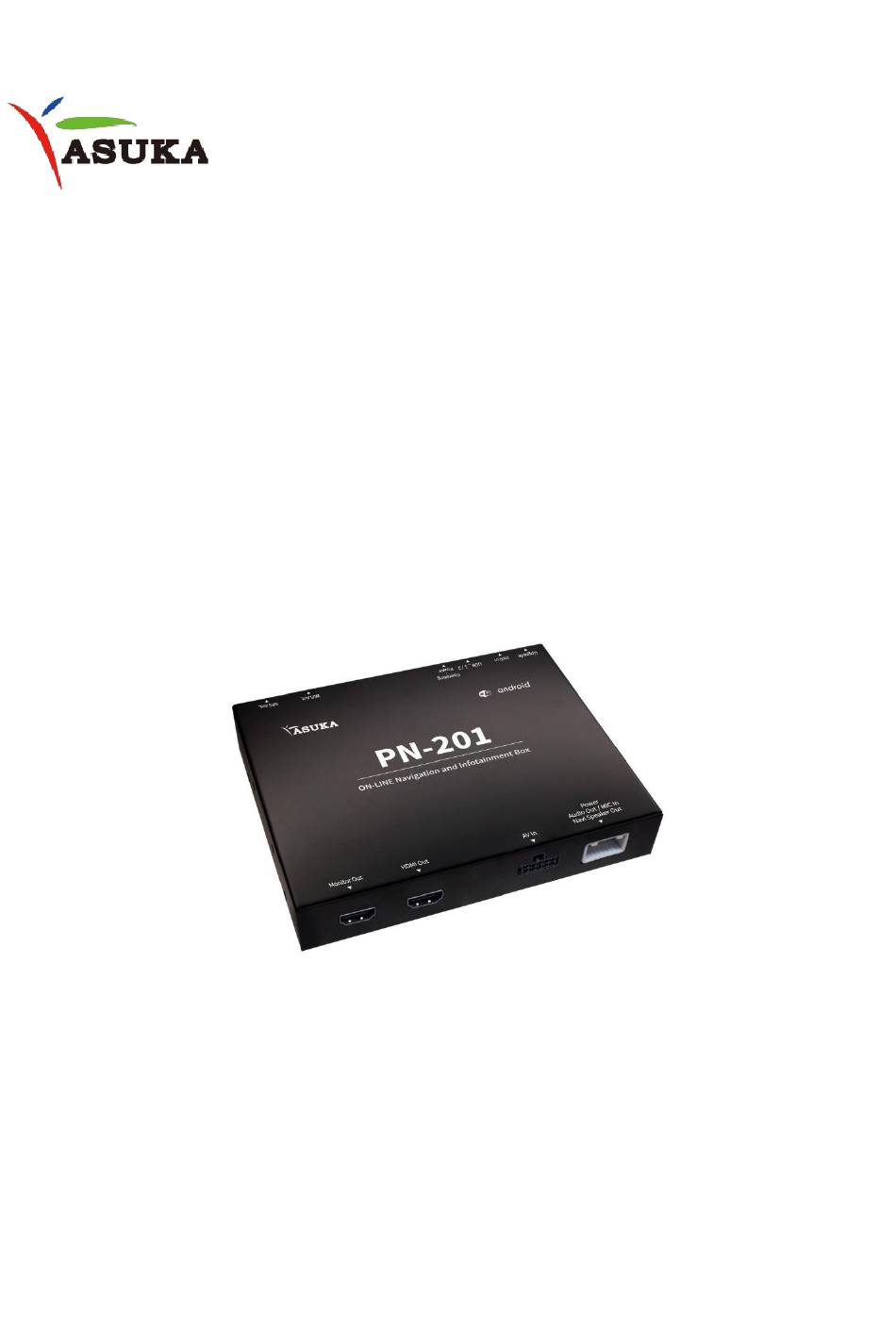

Introduction ASUKA PN-201 is a revolutionary in-vehicle information and entertainment service center. It can satisfy all users’ desire to access the internet to enjoy on-line multimedia and navigation service which is beyond traditional broadcasting services & pre-recorded media contents; it brings you more entertaining and smarter experience than ever before. -
Page 5: Connect Your Box
Connect Your Box II.1 Hardware (Note: Please connect either HDMI Out or Monitor Out for display) -
Page 6: Ii.2 System Configuration
II.2 System Configuration... -
Page 7: Quick Start Guide
III.1 Turning the Power On (1) Turn on the ACC or IGN of the vehicles. (2) When the PN-201 is activated, you will see a startup screen before system booted. (3) After system booted, the main menu will show up. -
Page 8: Iii.2 User Interface
(1) Operation by remote control 1. About PN-201 remote control: The remote control of PN-201, which is also called remote air mouse, is offered as an accessory for user to operate PN-201 remotely. As the air mouse hold by your hand, via its design with built-in 6-axis inertial sensors, it can detect the motion of your hand and to show a cursor on PN-201 screen. - Page 9 Open the battery compartment and take out the USB dongle inside. Put two AAA batteries into the remote, ensuring they are the correct way around. Simply plug the dongle into one of the available USB ports on PN-201. The remote will start working immediately. You can now point your remote at the screen and move the cursor around with the movement of your hand.
- Page 10 Please turn off the cursor before operating other function keys. Please note the reaction of function key operation maybe different for different Apps. (2) Operation via ASUKA 7inch touch screen (Optional) Touch Touch the screen gently to select the item on the screen.
-
Page 11: Iii.4 Wifi Connection
Touch the screen and keep your finger in place until display changes allow you to ⚫ drag the icon to the position you want it to be. Swipe Swipe your finger left or right on the screen to change the page. ⚫... - Page 12 (3) Switch on WiFi Function then available WiFi hotspots will show on list (4) Select your WiFi hotspot and enter password (5) If WiFi successfully connected, “Connected” indication will show under selected hotspot. (6) WiFi connection is ready! You can now sit back and enjoy the un-limited internet service by PN-201.
-
Page 13: Usb Music And Video Playback
(2) Save your favorite music and movie files in USB memory on the PC. The supported multimedia file formats are listed on Chapter VI for reference. (3) Plug the USB memory to USB1 or USB2 port of PN-201 IV.2 Music Playback (1) Select and play [Music] app. -
Page 14: Iv.3 Video Playback
IV.3 Video Playback (1) Select and play [Video] app. The Video player menu will show on screen and list all available video files saved in your USB memory (2) Select the desired file to start playing the video. (3) Long press the button to fast rewind or fast forward the video track. -
Page 15: Monitor Adjustment
V.1 Display Overscan Adjustment (1) Why overscan adjustment is needed? - As PN-201 is connected to your HDTV TV and you’re not seeing the entire image on it, the overscan adjustment function may help to recover the whole image for your better visual experience. -
Page 16: V.2 Auto Rotation Setting
V.2 Auto Rotation Setting (1) Why Auto Rotation Setting is needed? As connected with ASUKA display, normally PN-201 is forced to show landscape image of all apps on display for better visual experience. However, some specific TV apps such as VTM GO or RTL are available for channel switching only under vertical mode. - Page 17 response as to press the screen scaling icon to show vertical screen mode. Hence there is not possible to switch the channel for some specific apps. (3) Start to set Auto Rotation function - First, please close those apps running on the background. - Enter the [Setting] menu and select [Display] to show display setting option.
-
Page 18: Specification
Built-in GPS Function Built-in WiFi YES (802.11a/b/g/n, 2.4GHz) Overscan Adjustment Apps Auto Rotation Setting YES (Available as connected with ASUKA display) Split Screen Microphone Input Audio(R/L) Out YES (max. output level is 2Vpp) Speaker Out YES (Supported only for 1W@4Ohm speaker) -
Page 19: Vi.2 File Format Supporting List For Usb Playback
VI.2 File Format Supporting List for USB Playback MP3, WAV, Music File Format FLAC, M4A, H.264/AVC (up to 4K 3840x2160, 25fps), H.265/HEVC (up to 4K 3840x2160 60fps), MPEG1/2, MPEG-4, Video File Format AVI, MKV, MP4,... -
Page 20: Reference
VII.2 Troubleshooting What appears to be trouble is not always serious. Please check the following points before calling dealers/ASUKA. 1. No sound comes out of the (1) Adjust the volume to the optimum level. -
Page 21: Customer Service
VIII. Customer Service VIII.1 (For Stefaan)
