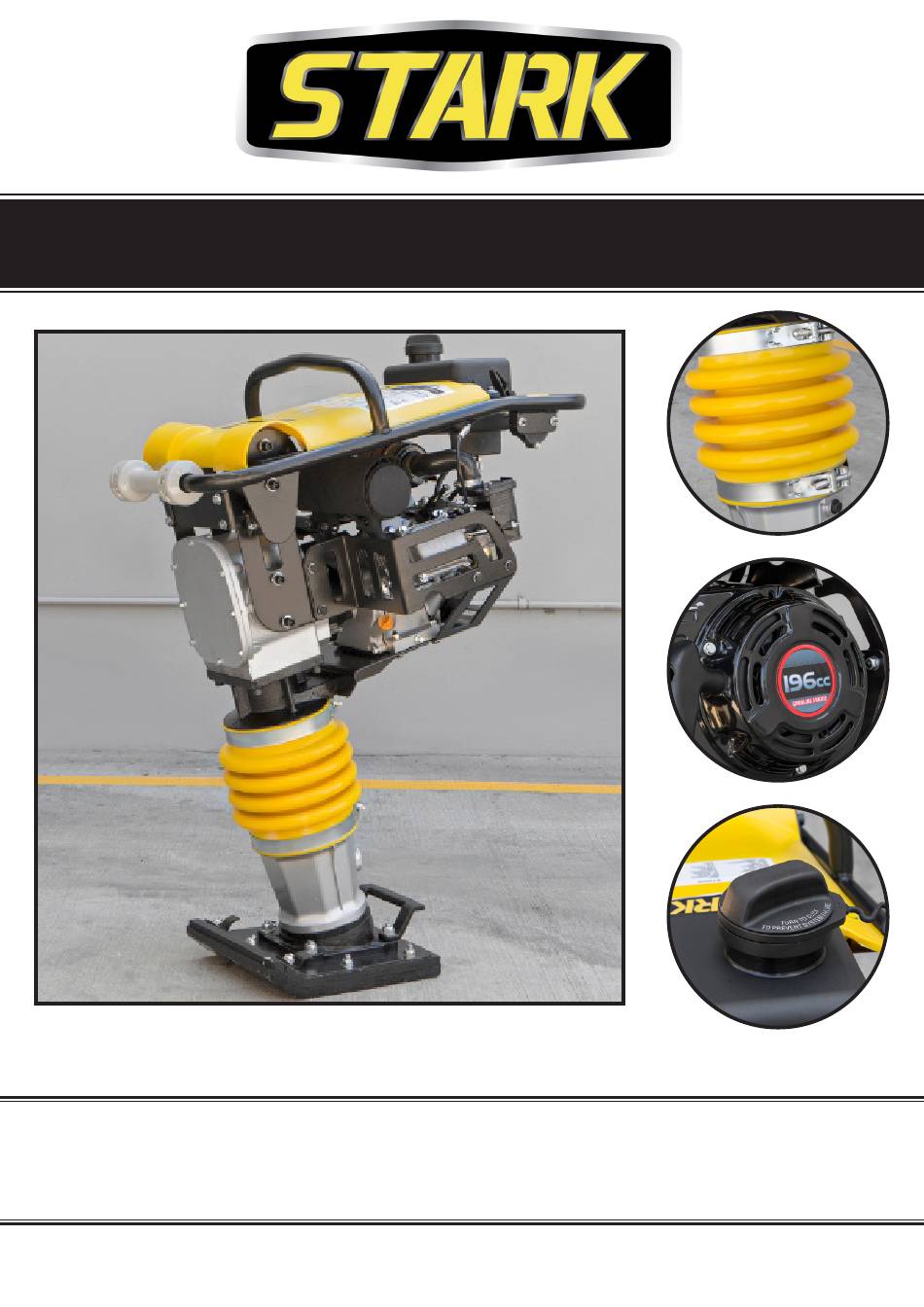

6.5HP JUMPING IMPACT TAMPING RAMMER
ITEM: 61009
OWNER'S MANUAL AND SAFETY INSTRUCTIONS
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT'S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 4900 MON-FRI 9AM TO 3PM PST
Advertisement
Table of Contents
Summary of Contents for Stark 61009
- Page 1 6.5HP JUMPING IMPACT TAMPING RAMMER ITEM: 61009 OWNER’S MANUAL AND SAFETY INSTRUCTIONS SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY, OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION GENERAL SAFETY WARNINGS Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. SAFETY The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. -
Page 3: Grounding Instructions
GROUNDING INSTRUCTIONS Stay alert, watch what you are doing, and use common sense when operating the tool. DO NOT use the tool while you are tired or under the influence of drugs, alcohol, or medication. Dress properly. DO NOT wear loose clothing, dangling objects, or jewellery. Keep your hair, clothing and gloves away from moving parts. - Page 4 TAMPING RAMMER USE AND CARE Using a tamping rammer indoors can kill you in minutes. Engine exhaust contains carbon Monoxide. This is a poison you cannot see or smell. Never use inside a home or garage, even if doors and windows are open.
-
Page 5: Features And Specifications
FEATURES AND SPECIFICATIONS FUEL TANK CAP FUEL TANK LIFT FRAME HANDRAIL ENGINE ENGINE ON/OFF SWITCH GEAR BOX ENGINE SUPPORT BELLOWS LIFT HANDLE WHEEL KIT FRAME FOOT PLATE Compact the areas that you would like to work on with the STKUSA Compact Jumping Jack. This machine allows you to condense the flooring that you would be working on to help give the floor a firm and compact area for the material to sit atop. -
Page 6: Maintenance
MAINTENANCE Close the rammer before performing any maintenance. In order to avoid that the engine starting unexpectedly, place the engine switch on the OFF position and pull out the connecting pipe of the spark plug. Be sure to maintain the rammer every time you use it and keep up with maintaining the rammer after 50, 100 and 300 working hours. -
Page 7: Engine Maintenance Schedule
MAINTENANCE PRODUCT SPECIFICATIONS ENGINE MAINTENANCE SCHEDULE NOTICE The rammer is a vibratory machine and its bolts can unfix easily. Check and fasten them immediately and frequently. Because the influence of vibration, some parts of the rammer are damaged easily, such as the spring, protective cover, shock absorber and bearing etc. -
Page 8: Troubleshooting
MAINTENANCE DISASSEMBLY OF THE RAMMER 1. First remove the handrail, then remove the fastening bolts of the gasoline engine and take down the gasoline engine. Lastly, let out the lubricating oil. 2. Remove the bolts that connect to the box and the movement vat, then rotate the hub and disassemble the clamping spring in the linchpin. -
Page 9: Please Read The Following Carefully
PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
