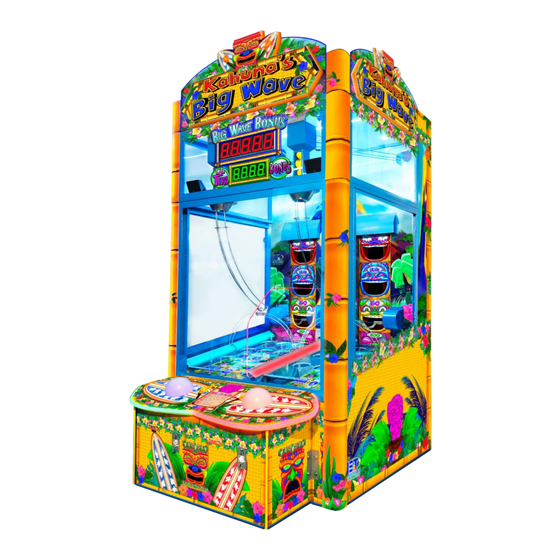

Jennison Entertainment Technologies Kahuna's Big Wave Service Manual

Hide thumbs

Table of Contents

Quick Links

KAHUNA'S BIG WAVE SERVICE MANUAL

For Additional Information or for an Electronic Copy of This Manual Visit Our Website

www.JENNISONGAMES.com

VERSION 1.1

Jennison Entertainment Technologies Corporation

822 South Nova Road • Daytona Beach, Florida 32114 • U.S.A.

Phone Number: 1-386-255-1599

Fax Number: 1-386-255-1589

Phone Number: 1-855-JET-GAME

Service Email: Service@JennisonGames.com

Information Email: Info@JennisonGames.com

Table of Contents

Summary of Contents for Jennison Entertainment Technologies Kahuna's Big Wave

Page 1 KAHUNA'S BIG WAVE SERVICE MANUAL VERSION 1.1 Jennison Entertainment Technologies Corporation 822 South Nova Road • Daytona Beach, Florida 32114 • U.S.A. Phone Number: 1-855-JET-GAME Phone Number: 1-386-255-1599 Service Email: Service@JennisonGames.com Fax Number: 1-386-255-1589 Information Email: Info@JennisonGames.com For Additional Information or for an Electronic Copy of This Manual Visit Our Website...
Page 2 Table of Contents Safety Notifications Epilepsy Warning Warnings, Cautions, & Notices FCC Compliance RoHS Compliance Cabinet Dimensions Electrical Requirements Installation Instructions Program Setup Instructions Score State I/O board inputs I/O board outputs Trouble Shooting Kahuna's Big Wave Service Manual JET Games...
Page 3: Safety Notifications
Follow all instructions contained within this manual and do not make any modifications to the game without first contacting Jennison Entertainment Technologies. DANGER All danger messages are marked in RED boxes. Failure to adhere to these messages could result in personal injury or injury to others.
Page 4: Epilepsy Warning
Play in a well-lit room Do not play when you are drowsy or fatigued If you or any of your relatives have a history of seizures or epilepsy, consult a doctor before playing. Kahuna's Big Wave Service Manual JET Games...
Page 5 DO NOT remove the game from its shipping pallet or skid without first reading the entire installation guide in this manual! DANGER DO NOT attempt to assemble Kahuna's Big Wave without another adult to assist in the assembly. JET recommends at least four people to assist with assembly. DANGER DO NOT attempt to remove OR replace either of the monitors without first contacting JET Games service department.
Page 6 KAHUNA'S BIG WAVE SAFETY, CAUTIONS, & NOTICES WARNING Set the 115/230 VAC selector switch on all power supplies for the correct line voltage at the installation site. Check that all power supplies, fans, and fluorescent lamps are rated for the same line voltage.
Page 7: Fcc Compliance
Kahuna's Big Wave complies with this requirement and the following statement is posted on all units. This equipment has been tested and found to comply with the limits for a Class “A”...
Page 8: Rohs Compliance
As of November 2019, Jennison Entertainment Technologies has tested all components used in the manufacturing of Kahuna's Big Wave. All components have been found to be within the standards set forth for RoHS compliance by the European Union. Test reports are available and will be provided upon request.
Page 9: Dimension Information
ABOVE KAHUNA'S BIG WAVE ships on two skids within the United States, Canada, and Mexico. The skid that the main cabinet is on has been designed so that a forklift can lift the unit off. There is enough clearance under the game, where forks can comfortably fit.
Page 10: Electrical Requirements
ELECTRICAL REQUIREMENTS KAHUNA'S BIG WAVE ELECTRICAL REQUIREMENTS VOLTS HERTZ AMPS WATTS DOMESTIC 120 VAC 60 HZ 8.3 AMPS (MAX) 1000 WATTS POWER FOREIGN 220 VAC 50 HZ 4.3 AMPS (MAX) 990 WATTS POWER DANGER IF YOU CHOOSE TO CONVERT YOUR UNIT TO A DIFFERENT...
Page 11: Installation
ENTIRITY COULD LEAD TO SERIOUS BODILY INJURY. IF THERE IS ANY DOUBT DURING THE INSTALLATION OF THIS UNIT - CONTACT JENNISON ENTERTAINMENT TECHNOLOGIES OR YOUR DISTRIBUTOR PRIOR TO CONTINUING. NEITHER J.E.T. NOR YOUR DISTRIBUTOR IS RESPONSIBLE FOR ANY DAMAGE CAUSED DURING IMPROPER INSTALLATION PROCEDURES.
Page 12: Installation Instructions
Step # 1 PREPARING TO ASSEMBLE THE GAME Kahuna's Big Wave will ship on a single 6' X 8' pallet. Once the game is safely removed from the shipping pallet, carefully roll the unit to the desired location. Please note that section 4 (marquee header) is bolted to the top of the section 2 (main cabinet) and must be removed before assembly.
Page 13 M6 screws (2 on the front, left and right bottom lip) that were removed when unbolting the section #4 from the main cabinet. Check Box When This Step is Complete Kahuna's Big Wave Service Manual JET Games...
Page 14 10 wires. Then connect the 6 Pin connector to the board located to the right of the chain assembly - (3 red wires / 3 black wires). Check Box When This Step is Complete Kahuna's Big Wave Service Manual JET Games...
Page 15: Section # 3. Make Sure The Wires Are All Tucked Inside The Cabinet Before Lifting So They Do Not Get Damaged During Installation
Utilizing four able-bodied adults, lift section # 4 onto the top of section # 3. Make sure the wires are all tucked inside the cabinet before lifting so they do not get damaged during installation. Check Box When This Step is Complete Kahuna's Big Wave Service Manual JET Games...
Page 16 The connection is a 12 pin connector with black, red, 2 yellow and 1 green wire. Make sure the connection is firmly seated and in the center of the connector board. Check Box When This Step is Complete Kahuna's Big Wave Service Manual JET Games...
Page 17 Each connection has both a single gray and single white wire. Both supply a constant 12 volts to power the lighting inside the sign. Check Box When This Step is Complete Kahuna's Big Wave Service Manual JET Games...
Page 18 After unwrapping the player console from the shipping foam, roll the unit over to the main cabinet leaving yourself enough room to make the electrical connections needed. Check Box When This Step is Complete Kahuna's Big Wave Service Manual JET Games...
Page 19 Then using the supplied M8 bolts, attach the console "L" bracket to the player console and then to the main cabinet. Repeat this step on the other side to secure the player console. Check Box When This Step is Complete Kahuna's Big Wave Service Manual JET Games...
Page 20 Once there are 5 balls in each side and windows has loaded you are ready to play and installation process is complete. Check Box When This Step is Complete Kahuna's Big Wave Service Manual JET Games...
Page 21 Step # 3 Enter the programming mode / menu Push and hold the green "ENTER" button on the right of the assembly to enter the program mode / menu. Kahuna's Big Wave Service Manual JET Games...
Page 22 Kahuna product page on our website. Please contact us or your distributor if a newer version is required. CURRENT GAME SOFTWARE VERSION 20200223 Please always check our website (www.JennisonGames.com) for the most current software version available. Kahuna's Big Wave Service Manual JET Games...
Page 23 100 - giving the player 1000. Type 2: Type 2 Big Wave Bonus displays a shorter fanfare and the total value of tickets won. It does not drop any balls to make the bonus sequence longer. Kahuna's Big Wave Service Manual JET Games...
Page 24 Please note that after selecting the value within the program - the operator must then physically change the value displayed on the card. Stickers to change these values are available through JET GAMES. Kahuna's Big Wave Service Manual JET Games...
Page 25 Please note that if you divide tickets, the value you select on this screen should be divisible. For example - if you select 2 point tickets - each value selected should be even. Kahuna's Big Wave Service Manual JET Games...
Page 26 Please note that if you divide tickets, the value you select on this screen should be divisible. For example - if you select 2 point tickets - each value selected should be even. Kahuna's Big Wave Service Manual JET Games...
Page 27 Big Wave bonus score card will automatically win this value. (The operator must also select Big Wave Type 1 or Big Wave Type 2 bonus - refer to step 7 above). Kahuna's Big Wave Service Manual JET Games...
Page 28 (JET does not suggest adding to the value unless allowed by law in your jurisdiction). Step # 14 Audit information Selecting this feature allows the operator to review all audit functions within the software including payout percentage, total credits, and total tickets. Kahuna's Big Wave Service Manual JET Games...
Page 29 This page should only used as a backup to your card system or other house audit. Step # 15 Score channel statistics Selecting this feature will allow the operator to review details on which target has the best win rate. Kahuna's Big Wave Service Manual JET Games...
Page 30 JET suggests no shorter then 15 seconds - this allows full revolution of the belt assembly. In some jurisdictions it might be necessary to make this number infinite or until the player pushes the drop button. Kahuna's Big Wave Service Manual JET Games...
Page 31 This feature allows the operator to select the maximum amount of credits to be escrowed. Please note that in some versions of the software for different jurisdictions including the US State of New Jersey, this feature is removed. Kahuna's Big Wave Service Manual JET Games...
Page 32 US State of New Jersey, this feature is removed. If a discount is not desired - just enter "1", "2", and "3" for each of the three settings. Kahuna's Big Wave Service Manual JET Games...
Page 33 Windows sound tray selection AND by whatever the physical knob is set to on the amplifier within the game. JET recommends that this volume NOT be changed and all selections by made at the amplifier itself. Kahuna's Big Wave Service Manual JET Games...
Page 34 For longer ticket payouts - this feature may not be desired and it will continue to play while another game could be started. Kahuna's Big Wave Service Manual JET Games...
Page 35 This is the number of seconds the bridge is up (or) down Bridge Chain Time Interval: Chain time interval - JET suggests 0 Play Button Delay Time: Play button delay time - JET suggests 0.00 Kahuna's Big Wave Service Manual JET Games...
Page 36 Outputs including the ball drop solenoid and ticket dispenser for both player one and two can be checked from the same screen. Contact JET GAMES for details on how to utilize this function. Kahuna's Big Wave Service Manual JET Games...
Page 37 Selecting this feature will clear all credits owed within the program for both player one and player two. Step # 27 Clearing tickets owed Selecting this feature will clear all tickets owed within the program for both player one and player two. Kahuna's Big Wave Service Manual JET Games...
Page 38 JET logo will appear. When completed and NO link messages displayed on either player one of player two screens - the game should be ready to play. Kahuna's Big Wave Service Manual JET Games...
Page 39: Main Board Inputs
MAIN BOARD INPUTS KAHUNA'S BIG WAVE - MAIN BOARD IC (74HC245N) INPUT CHART INPUT # CONTENT PICTURE PLAYER 1 COIN / CREDIT SIGNAL PLAYER 1 BILL ACCEPTOR CREDIT SIGNAL PLAYER 1 TICKET RESET SIGNAL PLAYER 1 TICKET FEEDBACK SIGNAL # 1...
Page 40 RIGHT SCREEN SENSOR (UP Y 23) The Kahuna's Big Wave input/output board utilizes all 5 input IC's to control all inputs used within the game. Should one of these five IC's become corrupt, you would need to replace that IC with a new input chip.
Page 41: Main Board Outputs
MAIN BOARD OUTPUTS KAHUNA'S BIG WAVE - MAIN BOARD IC (ULN2803) OUTPUT CHART OUTPUT # CONTENT PICTURE PLAYER 1 CHAIN MOTOR PLAYER 2 CHAIN MOTOR PLAYER 1 BLOWER PLAYER 1 UPPER BALL RELEASE SOLENOID PLAYER 1 LOWER BALL RELEASE SOLENOID...
Page 42 MAIN BOARD OUTPUTS - CONTINUED KAHUNA'S BIG WAVE - MAIN BOARD OUTPUT CHART CONTINUED OUTPUT # CONTENT PICTURE COIN METER TICKET METER PLAYER 1 TICKET DRIVER # 1 PLAYER 1 TICKET INDICATOR LIGHT PLAYER 2 TICKET DRIVER # 1 PLAYER 2 TICKET INDICATOR LIGHT...
Page 43 PLAYER 2 - SCORE X 1 SEG 1-6 SEG 2-6 PLAYER 2 -SCORE X 10 SEG 1-7 SEG 2-7 PLAYER 2 - SCORE X 100 SEG 1-8 SEG 2-8 PLAYER 2 - SCORE X 1000 Kahuna's Big Wave Service Manual JET Games...
Page 44: Dip Switch Settings
SWITCH # 3 (SW3) DESCRIPTION VALUE SW31 SW32 SW33 SW34 SW35 SW36 SW37 SW38 GAME MODE GAME MODE / TEST MODE TEST MODE NOTICE DIP SWITCH #2 IS NOT CURRENTLY UTILIZED IN KAHUNA'S BIG WAVE Kahuna's Big Wave Service Manual JET Games...
Page 45 PLAYER 2 - SCORE X 1 SEG 1-6 SEG 2-6 PLAYER 2 -SCORE X 10 SEG 1-7 SEG 2-7 PLAYER 2 - SCORE X 100 SEG 1-8 SEG 2-8 PLAYER 2 - SCORE X 1000 Kahuna's Big Wave Service Manual JET Games...
Page 46: Troubleshooting Guide
JET before servicing the unit. Servicing the unit in a way not described in this manual could void any warranties on the unit. Should you require assistance in ordering parts for Kahuna's Big Wave, please contact the following: JENNISON ENTERTAINMENT TECHNOLGIES...
Page 47 Step # 2 Hardware Included in the Kit Each kit includes parts required for installation. JET has included the speaker wire harness, zip ties, a drill bit, four bolts with nuts, and wire tie attachments. Kahuna's Big Wave Service Manual JET Games...
Page 48 Locate the front marquee sign. This is the shorter of the three signs that attach to the top of the marquee header (section # 4). Using a screw driver, remove the 10 screws holding the back plate onto the assembly. Kahuna's Big Wave Service Manual JET Games...
Page 49 Please note that there is a wire harness attached to the plate that will limit how far it can be removed. Be careful to not pull too hard and pull out any wire connections. Kahuna's Big Wave Service Manual JET Games...
Page 50 Please ensure that the bracket is flush with the back of the sign. It does not matter if this bracket sticks out further on the bottom. Kahuna's Big Wave Service Manual JET Games...
Page 51 Slowly re-insert all 10 screws holding the back plate in place. Be sure to not tighten the screws too tight as the receiving nut might back out. Kahuna's Big Wave Service Manual JET Games...
Page 52 # 3 acrylic window. Again, it is suggested to use the inside corner of the graphic as a guide to where this hole should be drilled. Kahuna's Big Wave Service Manual JET Games...
Page 53 Step # 20 Securing the Speaker to the Bracket Secure the speaker to the bracket using the provided screw. Do not let go of the speaker until it is firmly mounted in place. Kahuna's Big Wave Service Manual JET Games...
Page 54 Should the volume need to be increased - it can be done using the volume knob located near the amplifier - and by adjusting the level from within the program. Kahuna's Big Wave Service Manual JET Games...
Page 55: Software Update Instructions
JET Games may periodically release software updates. The following procedures should be used to update the software files in Kahuna's Big Wave. Before you begin, enter the menu within the software and make a note of your software version. After the following instructions, make another note of the newest software version.
Page 56 Windows desktop environment. Step # 4 Locate the Local Disk Navigate to the "LOCAL DISK C" Step # 5 Locate the Software Folder Navigate to the "BIG WAVE" folder Kahuna's Big Wave Service Manual JET Games...
Page 57 C DRIVE. (COMPUTER / LOCAL DISK / C / BIGWAVE / EN) Step # 8 Copying over the New Software The folder may take several minutes to copy over to the C Drive Kahuna's Big Wave Service Manual JET Games...
Page 58 Make sure this is the new version or a later date then when you started. NOTE: You may need to enter custom settings again as the software will be factory settings. Kahuna's Big Wave Service Manual JET Games...
Page 59 Slowly re-insert all 10 screws holding the back plate in place. Be sure to not tighten the screws too tight as the receiving nut might back out. Kahuna's Big Wave Service Manual JET Games...
Page 60 # 3 acrylic window. Again, it is suggested to use the inside corner of the graphic as a guide to where this hole should be drilled. Kahuna's Big Wave Service Manual JET Games...
Page 61 Step # 20 Securing the Speaker to the Bracket Secure the speaker to the bracket using the provided screw. Do not let go of the speaker until it is firmly mounted in place. Kahuna's Big Wave Service Manual JET Games...
Page 62 Should the volume need to be increased - it can be done using the volume knob located near the amplifier - and by adjusting the level from within the program. Kahuna's Big Wave Service Manual JET Games...
