Gerber 12-822 Installation Instructions

12-822/12-825 MOUNTING BRACKET INSTALLATION INSTRUCTIONS
FOR COUNTERTOPS UP
1. The mounting bracket parts are shown in Figure 1.
2. Place Bracket Bolt (C) through the slot in Mounting Bracket (A) and
then through the hole in the back wall of the lavatory as shown in
Figure 2.
3. Place Washer (F) and then place Lock Washer (G) on the bolt. Install
one (1) Nut (E) loosely on the bolt.
4. Slide Bracket (A) up until the top is flush against the underside of the
countertop.
5. Tighten Nut (E) to secure Bracket (A) into place.
6. Install a #10 screw, or other appropriate fastener (supplied by others),
through the hole in the top of Bracket (A) into the countertop.
7. Repeat procedure for second mounting bracket.
12-822/12-825 MOUNTING BRACKET INSTALLATION INSTRUCTIONS
FOR COUNTERTOPS 1¼" TO
1. The mounting bracket parts are shown in Figure 1.
2. Place Extension Plate Bolt (D) through the countersunk hole on
Extension Bracket (B) then through the hole on the back of the lavatory
with the second hole down, as shown in Figure 3.
3. Place Washer (F) and then place Lock Washer (G) on the bolt. Install
one (1) Nut (E) on the bolt and tighten securely.
4 Place Bracket Bolt (C) through the slot in Mounting Bracket (A) and
then through the second hole in Extension Plate (B).
5. Place Washer (F) and then place Lock Washer (G) on the bolt. Install
one (1) Nut (E) loosely on the bolt.
6. Slide Bracket (A) up until the top is flush against the underside of the
countertop.
7. Tighten Nut (E) to secure Bracket (A) into place.
8. Install a #10 screw, or other appropriate fastener (supplied by others),
through the hole in the top of Bracket (A) into the countertop.
7. Repeat procedure for second mounting bracket.
®
TO 1¼" (32MM) THICK
2⅜" (32-60MM) THICK
B - Plaquette de rallonge (2)
B - Placa de extensión (2)
A - Support de montage (2)
A - Soporte de montaje (2)

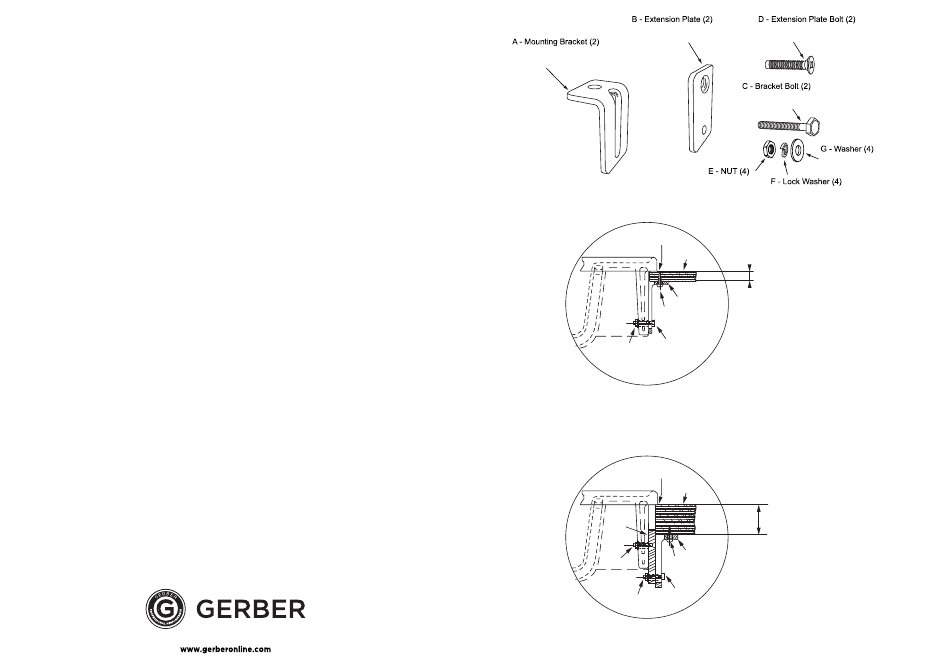

Figure 1
Waterproof
Sealant
Countertop
(By Others)
Mounting Bracket
#10 Screw
(By Others)
Bracket Bolt
Washer
Lock Washer
Nut
Figure 2
Waterproof
Sealant
Countertop
(By Others)
Extension
Plate
Mounting Bracket
Washer
#10 Screw
Lock Washer
(By Others)
Nut
Bracket Bolt
Washer
Lock Washer
Nut
Figure 3
D - Boulon de la plaquette de rallonge (2)
D - Perno de la placa de extensión (2)
C - Boulon du support (2)
C - Perno del soporte (2)
G - Rondelle frein (4)
G - Arandela de seguridad (4)
E - Écrou (4)
E - Tuerca (4) F - Rondelle (4)
F - Arandela (4)
1 ¼˝ (32 mm) Max
1 ¼˝ to 2 ⅜˝(32 - 60mm)
