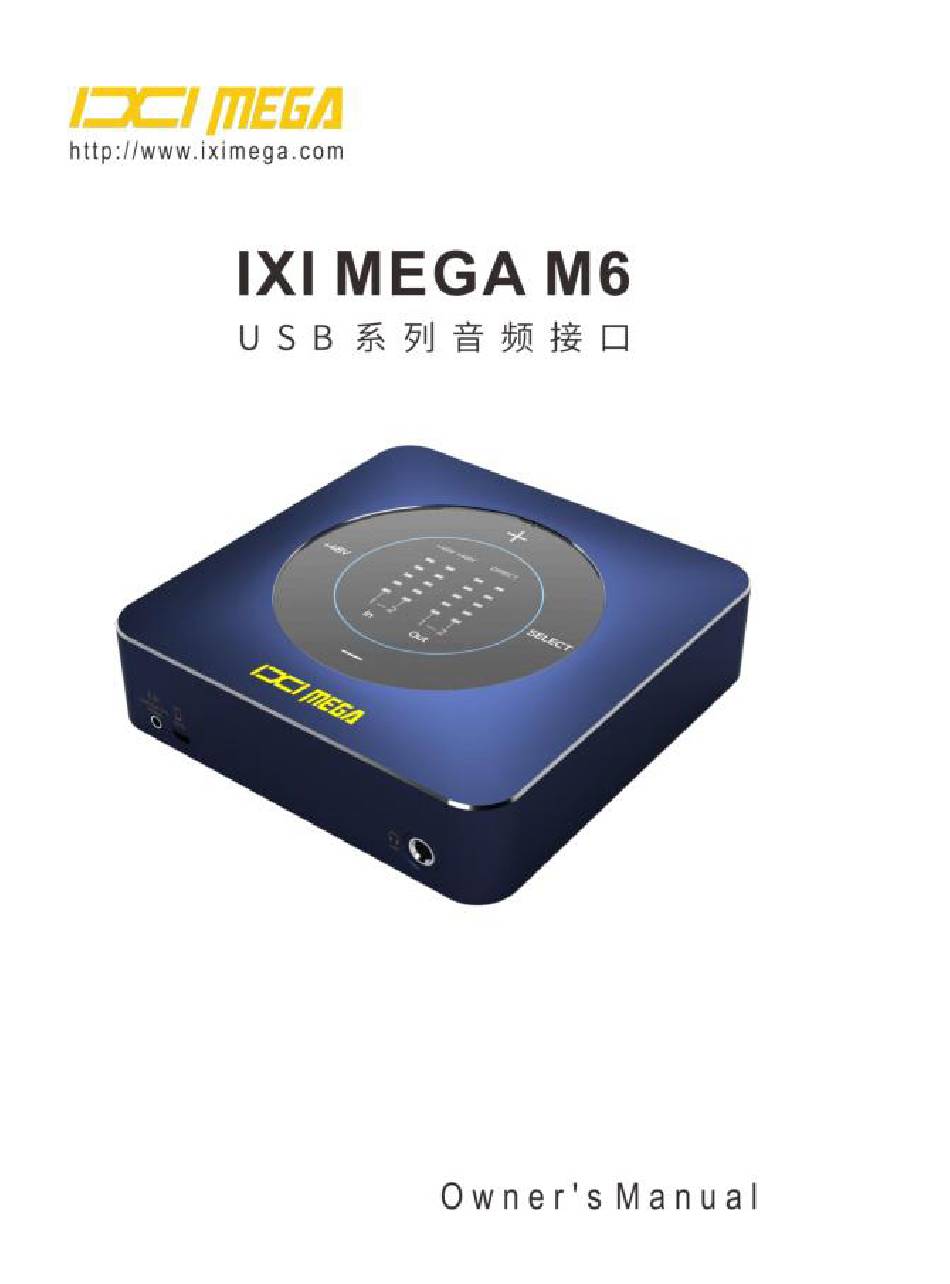

IXI MEGA M6 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M6 and is the answer not in the manual?

Questions and answers

Related Manuals for IXI MEGA M6

Summary of Contents for IXI MEGA M6

  • Page 2: Table Of Contents

    目录 1. Overview ........................1 1.1. Introduction ......................1 1.2. Product features ....................1 1.3. Hardware overview .................... 1 1.4. Routing application Summary ............... 2 1.5. Packing list ......................3 2. Control、 interface、 connection ................. 4 2.1. Control introduced ..................... 4 2.2.

  • Page 3: Introduction

    1. An overview of the 1.1 Introduction Thank you for purchasing the IXI MEGA M6 audio interface. The USB series audio interface, designed by IXI MEGA Pte. Ltd. of Singapore, innovating new usage scenarios such as music performance, recording and creation.
  • Page 4 IXI MEGA Pte Ltd Gain/volume plus touch*1 Gain/volume minus touch *1 +48V phantom power touch key *1 Fully balanced voice input/line input *1 XLR/TRS fully balanced voice player input/musical instrument input*1 XLR/TRS headphone output *1 LINE IN balance input *2...
  • Page 5 IXI MEGA Pte Ltd 页...
  • Page 6 IXI MEGA Pte Ltd Matrix routing interface 1.5 Packaging List One audio interface host, one usb-b data cable, one Micro USB power cable, one Micro USB to 3.5mm audio cable, one dedicated adapter and one instruction manual. 页...

  • Page 7: Control、 Interface、 Connection

    IXI MEGA Pte Ltd 2. Control、 interface、 connection 2.1. Control introduction 页...
  • Page 8 IXI MEGA Pte Ltd Introduction to touch control mode and toggle switch. SELECT Channel SELECT touch key, touch SELECT SELECT channel, SELECT the corresponding digital light on, at this time can be operated, no operation after 5 seconds back to the level volume indicator state.
  • Page 9 IXI MEGA Pte Ltd Panel LED lights 1. Level indicator or gain/volume indicator for selected channel MIC/LINE 1 channel +48V switch indicator light MIC/INST 2 channel +48V switch indicator light DIRECT status indicator 5. Select the channel indicator light 页...
  • Page 10 IXI MEGA Pte Ltd Panel touch button 1. + 48 v switch 2. Channel selection 3. Gain/volume boost 4. Gain/volume reduction DIRECT switcher 页 1210...
  • Page 11 IXI MEGA Pte Ltd Interface introduction Back plate coupling Microphone/linear input, microphone/instrument input, composite interface XLR/TRS Line input interface TRS 页 1211...
  • Page 12 IXI MEGA Pte Ltd Line output interface TRS USB-B interface External power supply interface Extension interface (optional function Module extends wireless transmission monitoring) 页 1212...
  • Page 13 IXI MEGA Pte Ltd Front panel interface Headphone jack TRS Mobile device digital plus analog composite Micro USB interface Line output 3-4 3.5mm interface 页 1213...

  • Page 14: Wiring Diagram

    IXI MEGA Pte Ltd Wiring diagram 页 1214...

  • Page 15: Connect To Computer

    IXI MEGA Pte Ltd 3 Connect to computer 3.1 WINDOWS Installation and setup installation Driver download address：http://www.iximega.com/Download.html 页 1215...
  • Page 16 IXI MEGA Pte Ltd 页 1216...
  • Page 17 IXI MEGA Pte Ltd 页...
  • Page 18 IXI MEGA Pte Ltd Set up Save routing information/import routing information Language selection Sound card Settings 页...
  • Page 19 IXI MEGA Pte Ltd Sampling rate selection Support：44100Hz、48000Hz、88200Hz、96000Hz、176400Hz、192000Hz Sampling rate setting Buffer size selection 8、16、32、64、128、256、512、1024、2048 samples setting Safe mode Select the safe mode and the system will automatically set a relatively safe size in the current buffer size 页...
  • Page 20 IXI MEGA Pte Ltd Format selection Input channels are provided with firmware, and output channels are available in 16bit and 24bit formats Clock selection Displays current clock source status and sampling 页...
  • Page 21 IXI MEGA Pte Ltd 页...
  • Page 22 IXI MEGA Pte Ltd 页...
  • Page 23 IXI MEGA Pte Ltd 页...

  • Page 24: Mainstream Audio Application Settings

    IXI MEGA Pte Ltd 3.2 MACOS Set up IXI MEGA Serial audio interface in the MACOS system does not need to install a driver, after successful connection to open System preferences in MACOS system select sound, input and output set as IXI MEGA series audio interface.

  • Page 25: On The Go Connection

    IXI MEGA Pte Ltd 4. IOS and Android System connection Digital transmission requires mobile phone support On The Go function, support 44.1kHz/48kHz,16bit stereo.The analog output provides mono signal, the input provides stereo sound, and the frequency response range is determined by the analog signal input of the mobile phone.

  • Page 26: Analog Connection Mode

    IXI MEGA Pte Ltd 4.3. Analog connection mode 页...

  • Page 27: Working Principle Block Diagram

    4.5. Communication with mobile devices application example Example: "communicate with the mobile phone effector software, connect the mobile phone to the mobile phone interface of IXI MEGA M6, pass the signal into the mobile phone APP for processing, and return to the audio interface of IXI MEGA M6.

  • Page 28: Technical Information Specification

    IXI MEGA Pte Ltd 5. Technical information specification The ADC/DAC specifications: ADC：114dB dynamic range/-105dB THD+N DAC：103dB dynamic range/-88dB THD+N Microphone input 1/2 (balance) Maximum input level：+8.5dBu（2.062Vrms）@0dB Gain Input impedance ：1.2Kohm Gain range：0dB，+9dB to +60dB（3dB Step） LINE input 1（6.35mm TRS，(balance)） Maximum input level：+11.2dBu（2.828Vrms）@-9dB Gain Input impedance：20Kohm...

  • Page 29: Safety Precautions

    IXI MEGA Pte Ltd Mobile phone output 5/6（non-equilibrium） Maximum input level（single channel）：-6.42dBu (0.37Vrms) Mobile phone input/output（OTG）5/6 Connect a USB host that supports USB 1.1 stereo codec Wireless and audio output（Use with additional wireless modules） Headset output 1/2（6.35mm TRS，non-equilibrium） Input impedance：4.7ohm Frequency response@44.1kHz：10Hz-30kHz（+0.1dB,-0.3dB）...
  • Page 30 IXI MEGA Pte Ltd contact the manufacturer's technical staff or the dealer immediately. Do not expose the product to any type of liquid, such as rain, moisture or overflow. If any kind of liquid or foreign matter enters the equipment, do not use it.

  • Page 31: Warranty Information

    B. As of the date of purchase, the IXI MEGA will bear the human costs arising from the replacement or repair of the parts within the warranty period.
  • Page 32 IXI MEGA will bear the transportation cost of returning the product to you. C. return only the faulty parts. IXI MEGA is not responsible for any other products or accessories returned with the faulty parts. 8.The following situations are not covered by the warranty agreement: A.
  • Page 33 IXI MEGA has not received any written statement of defects or failures of the product. 9. The limited liability of the IXI MEGA under the limited warranty is the actual cash value of the product returned for maintenance (e.g., the purchase value of the product minus the reasonable wear and tear cost).
  • Page 34 11. IXI MEGA because for any use or breach of warranty agreement or contract, negligence, tort, or strictly comply with the requirements of the product...
