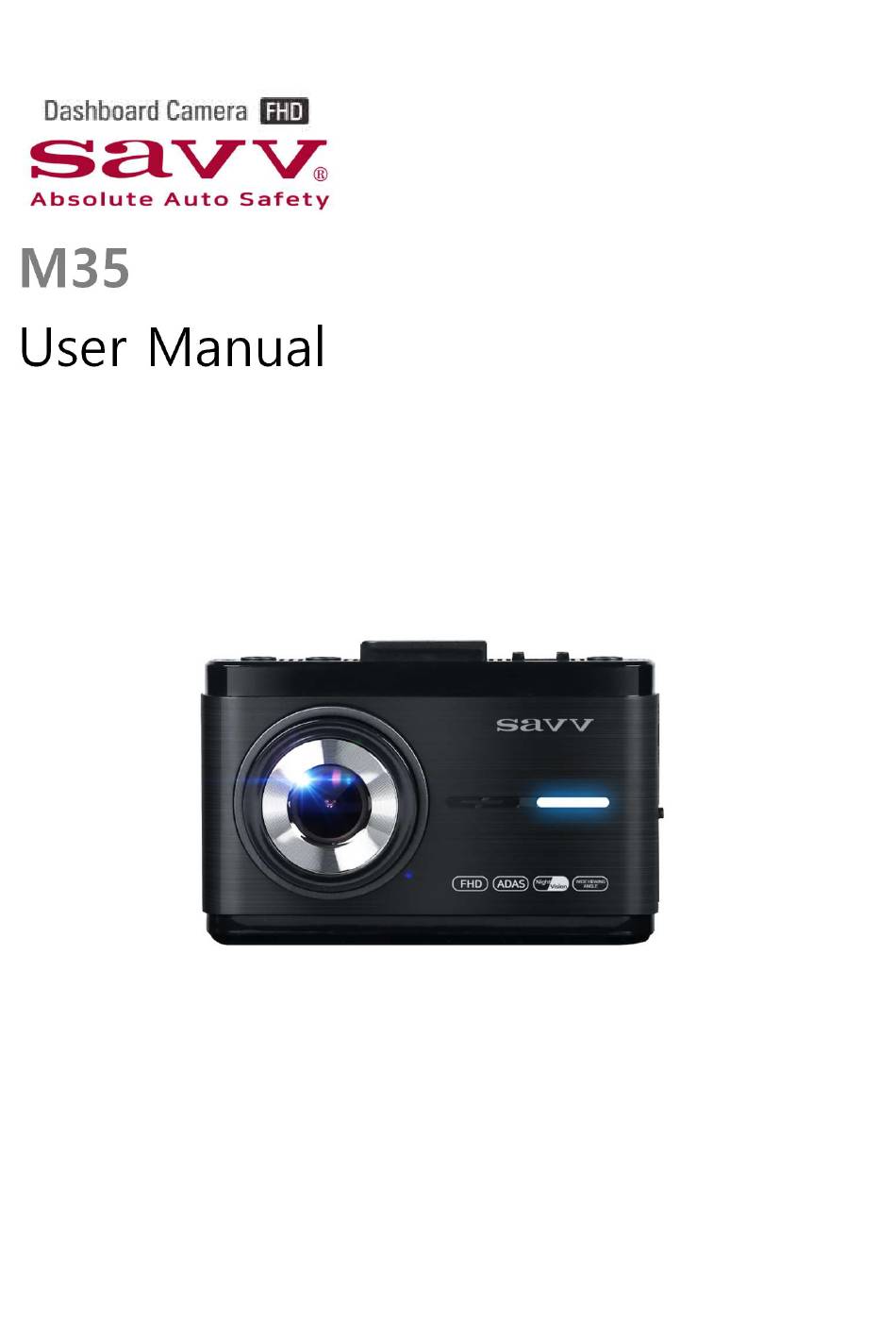

M35
User Manual
SAVV DASHCAM is a supplemental video recording device. Read the following
instructions carefully in this guide to properly use and maintain the
This device DOES NOT guarantee video recording for all accidents as the built-in
impact sensor may not be activated due to user settings and the level of impact
during the collision. Some of the functions may not be available depending on
the installation, driving conditions, and vehicle type.
product.

Advertisement

Table of Contents
loading

Related Manuals for SAVV M35

Summary of Contents for SAVV M35

  • Page 1 User Manual SAVV DASHCAM is a supplemental video recording device. Read the following instructions carefully in this guide to properly use and maintain the product. This device DOES NOT guarantee video recording for all accidents as the built-in impact sensor may not be activated due to user settings and the level of impact during the collision.
  • Page 2 Use only the standard issued hardwiring power cables or power source for this product. • We recommend to use of authorized SD cards provided by SAVV and we are not responsible for any damage caused by using unauthorized memory cards.
  • Page 3 Paring remote control Precaution with ADAS Functions • The GPS must be connected to the satellite in 1. How to pair remote control order to be operated properly. Insert battery into the slot. • • If the front camera has poor image conditions (listed below) the lane and vehicle information Turn on the power of the •...
  • Page 4 DASHCAM as an auxiliary means to check the driving image. The SD card requires continuous maintenance. Any damage incurred by the user is your user's responsibility. SAVV Automotive is NOT responsible for any problems arising from 1. Any indication of unauthorized modification of original power cable supplied.

  • Page 5: Power Cable

    3. Check before installation Please do not cut a power cable or remove fuses during installation 1. Power cable connection ① B+ Fuse : Connect this line to positive (+) post of the battery that provides continuous power supply. ② ACC Fuse : Connect this line to ACC ③...

  • Page 6: Specification

    We cannot guarantee the normal operation Continuous / Event / Manu and warranty service if you don’t use parts Recording al / Parking provided by SAVV. Please contact an Sensor 1920 x 1080 CMOS authorized dealer or distributor to purchase Front: 1/2.7”, 6G, Viewing optional parts if needed.
  • Page 7 Defect Analysis before Contacting Service Center I cannot see the parking light I cannot record in parking mode The light may look cloudy during the day. In parking mode, continuous recording is not possible but only when motion and G sensor Check configurations in Settings>...

  • Page 8: Key Features

    Key Features You can see video in real-time on the LCD monitor including date, time and information. Function keys will appear by touching the screen 1.Real-Time Screen Switch M35-F (2CH) M35-H2 (3CH) LCD DISPLAY FRONT/CAM1/CAM2---FRONT---CAM1---CAM2 ---CAM1/CAM2---FRONT/CAM1/CAM2 M35-S2,T2 (3CH) LCD DISPLAY...
  • Page 9 6. Menu > Screen Settings Details of LCD Setting 1. LCD brightness control Levels 1~3 available. (higher level is more brighter) 2. LCD OFF time Setting - Set automatic LCD OFF time. (turn OFF after 30 sec, clock mode after 30 sec, turn OFF after 3 min, always ON) 7.

  • Page 10: Sensor Setup

    8. Menu > ADAS (Advance Driving Assistance System) The ADAS functions can only be operational The product supports Lane Departure when a GPS is connected to the device and Warning System, Forward Collision will be activated in the following conditions Warning System, and Forward Vehicle FVSA: when front of your vehicle is departing Start Alarm functions of ADAS.
  • Page 11 VOICE RECORDING SETUP Parking Sensor Sensitivity Adjust the sensitivity of parking recording Voice recording can be set. If you select Off, by choosing from three levels: high, The Voice recording is not available. higher sensor is set, the more recording VOLUME SETUP will be performed.

  • Page 12: Sd Card Format

    -SD Memory Card prompted for FORMAT confirmation. 1. Download and extract the firmware from GENERAL SETTING customer support of www.savv.com Insert the memory card to your PC and format it. Copy the extracted file to the memory card. 4. Remove the memory card from your PC and insert into the DASHCAM then turn on the power.
  • Page 13 ②Select DASHCAM3 from the list ③Input password -- Default password 1. Install on your Smart Phone "00000000" 8-0s SAVV DASHCAM supports Android and IOS. ④Activate Wi-Fi Search for “DASHCAM3” for smart phone app. ⑤Run DASHCAM3 App n the Google Play Store and Apple App Store to download.
  • Page 14 USING DASHCAM3 APP 1. Main Menu 2. Live Video Live Video You can check the live video of the DASHCAM. When connecting additional cameras other than the front camera, you can BACK check the live video of all cameras Back to main menu using the (multi-channel) switch button.
  • Page 15 3. Recorded video>DASHCAM Video DASHCAM Video Downloading recorded video file from You can check the recorded video saved DASHCAM video in the DASHCAM. Click SELECT button Recorded video is divided into Select the file you want to save CONTINUOUS / EVENT / PARKING mode In case of multi-channel file, you can select the recording.
  • Page 16 5. Recorded video>Saved Video Saved Video You can check the video on your smart phone from the DASHCAM. Downloaded video is saved in order of CONTINUOUS / EVENT / PARKING mode recording. Click the file in the playlist to play the recorded video Click the Rename File button to change the file name of the saved video.

  • Page 17: Wireless Remote Control

    KEY FEATURES Built in Wi-Fi FULL HD + HD high definition Automatic Wi-Fi connection to image quality FULL-HD Provides clear and natural high smart phone for recording live 1080P quality images video and save Capacitive Touch LCD Panel Wireless remote control 3.5”Capacitive touch LCD with Easy, convenient and portable same touch as smart phone...

  • Page 18: Multi Language Support

    KEY FEATURES Wide view angle Wide viewing angle without External GPS Accurate location, time, recording worrying about blind spots. information. driver assistance Wide viewing angle allows easy system available. checking of accidents and surroundings 30 FPS recording 3 Axis G sensor 30fps recording on each camera, With 3-axis G sensor, you can 30FPS...
  • Page 19 Sold separately Remote Control Power Cable 3. Contents per model FULL-HD Rear Camera HD Rear Camera Indoor IR HD Camera Real Camera Cable M35-F M35-H2 M35-H2 M35-H2 Side HD Camera Side Camera Cable Side IR HD Camera Side Camera Cable...

  • Page 20: Specification

    INDIVIDUAL PRODUCT DESCRIPTION 1. M35-F (2CH) 2. M35-H2 (3CH) Attachable Cradle Attachable Cradle Security Rear Camera Lens Power Security Input IR Sensor Power Rear Camera Input Lens Indoor Camera Lens SPECIFICATION SPECIFICATION...
  • Page 21 INDIVIDUAL PRODUCT DESCRIPTION 3. M35-S2 (3CH) 4. M35-T2 (3CH) Left/Right Side Camera Lens Left/Right Side IR Camera Lens SPECIFICATION SPECIFICATION...
  • Page 22 CAUTION LED & Voice Guidance LED Status Front Rear Voice Guidance Flash sideway Continuous BLUE LED ON Recording begins (1 sec interval) Flash sideway BLUE LED ON Event BEEP Sound (0.5 sec interval) (0.5 sec interval) Flash sideway No Detection LED OFF (1 sec interval) Parking...

  • Page 23: Limited Warranty

    SAVV Automotive is not responsible for the loss of data. The copyright in all the images in the video belongs to the user and SAVV Automotive has no rights or obligations with respect to the video...
  • Page 24 SAVV Automotive INC U.S.A www.savv.com MADE IN KOREA...
