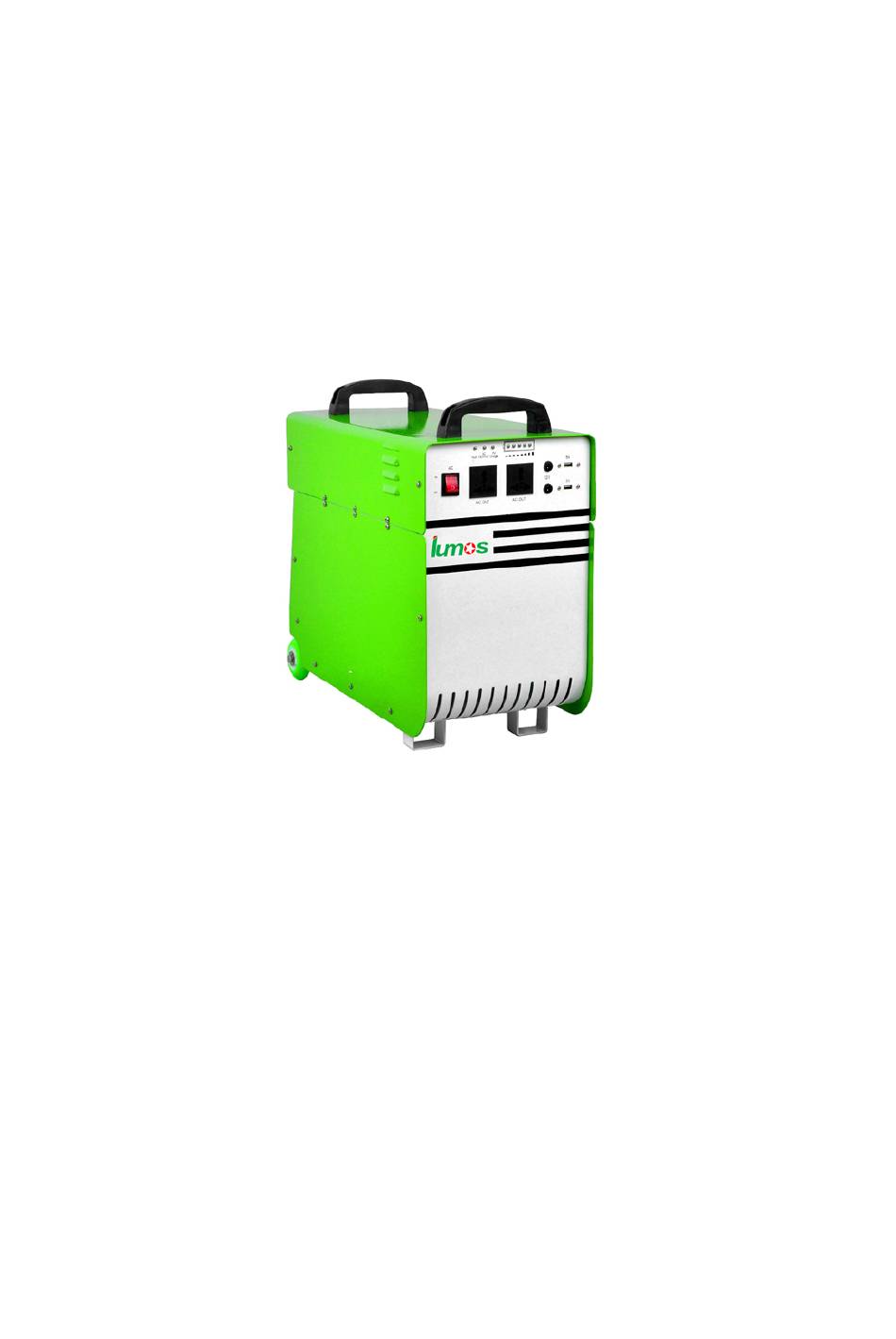

- Page 1 Portable Solar Power System —ISS1000Z— Operation Manual General Version Congratulations and thank you for purchasing our portable solar power system. Carefully read, understand and comply with all instructions before use.
- Page 2 Portable Solar Power System Safety Instructions Please read this manual thoroughly before use. Please not to use high power devices beyond the permissible range of the system. Ensure efficient exhaust ventilation in the working area. Keep it from exposure, damp environment and rain.
-
Page 3: Table Of Contents
Portable Solar Power System Contents Part I Brief introduction to portable solar power system 1.1 Basic operation principle of portable solar power system 1.2 Main characteristics of portable solar power system Part II Main technical parameter of portable solar power system Part III Operating instructions 3.1 Connection drawing of the system 3.2 Operating procedure of the system... -
Page 4: Part I Brief Introduction To Portable Solar Power System
Portable Solar Power System Part I Brief introduction to portable solar power system With the increase demand of global energy and impacts on human being environment caused by highly energy-consuming, energy saving and emission reduction has become the major trend of global energy industry development. Photovoltaic generation has made remarkable achievements since the first functional solar cell in 1954, which has being applied to every field. - Page 5 Portable Solar Power System Part II Main technical parameters of the system 2.1 Technical Parameters: Model: ISS1000Z System Specification: Rated Output Power: 1000W Solar charge controller: 24V 20A Solar inverter: 110V/220V/1000W Output waveform: Pure sine wave Battery capacity: 12V55Ah*2 AC Output (Europe plug):...
-
Page 6: Part Iii Operating Instructions
Portable Solar Power System Part III Operating instructions 3.1 Connecting drawing of the system AC Output Light PV Charge Battery Power Display Solar charging fault light 5V USB OUT AC OUT 12V DC OUT AC OUT SOCKET Front cooling fan system main switch Solar panels connector Back... -
Page 7: Operating Procedure Of The System
Portable Solar Power System 3.2 Operating procedure of the system 1、Preparation before start Check the output voltage and power with the technical parameter. Over value would result in damage to the product. Ensure to connect MC4 terminal (or equivalent terminal) of solar panel. Improper unit would not be able to be connected. Check the output voltage conforming to voltage on data plate, as well as ensuring no exceeding of the rated power. -
Page 8: Part Iv Maintenance
Portable Solar Power System switch). Attention: The total home appliances loading power shall not exceed the total power of systems. The warranty guarantee is not valid if the system or home appliances are damaged because of the over loading. original accessories (solar panels,fan,led bubbles,light cables). Pls use our The warranty guarantee is not valid if the system or home appliances are damaged because of using other brand accessories. -
Page 9: Daily Maintenance And Change Of Battery
Portable Solar Power System 4.2 Daily maintenance and change of battery Daily maintenance： Lead crystal battery is used for our system which asks for timely charging after discharge. Charge the product once per month in case of unused for a long time to maintain perfect performance. Please change the battery every 500 cycling discharge (it would be less than 500 due to improper use) or after using of more than 2 years. -
Page 10: Part Vfaq
Portable Solar Power System Part V Q：The product has been connected to solar panel, but why is the PV Charge indicator still off? A ： Ensure the solar panel has been correctly and tightly connected to the MC4 terminal. The indicator would be off when the working condition is not satisfied or in the dark. - Page 11 Portable Solar Power System Guarantee Keep the card for guarantee to keep in repair. User File User name Address Telephone Purchasing address Retail price Numbers Commodity name Model No. and specification Dealer User Signature Signature Guarantee Item 1. 1 years upon date of production, we will guarantee to keep the power box in repair.
- Page 12 Portable Solar Power System Portable Solar Power System —ISS1000Z—...
