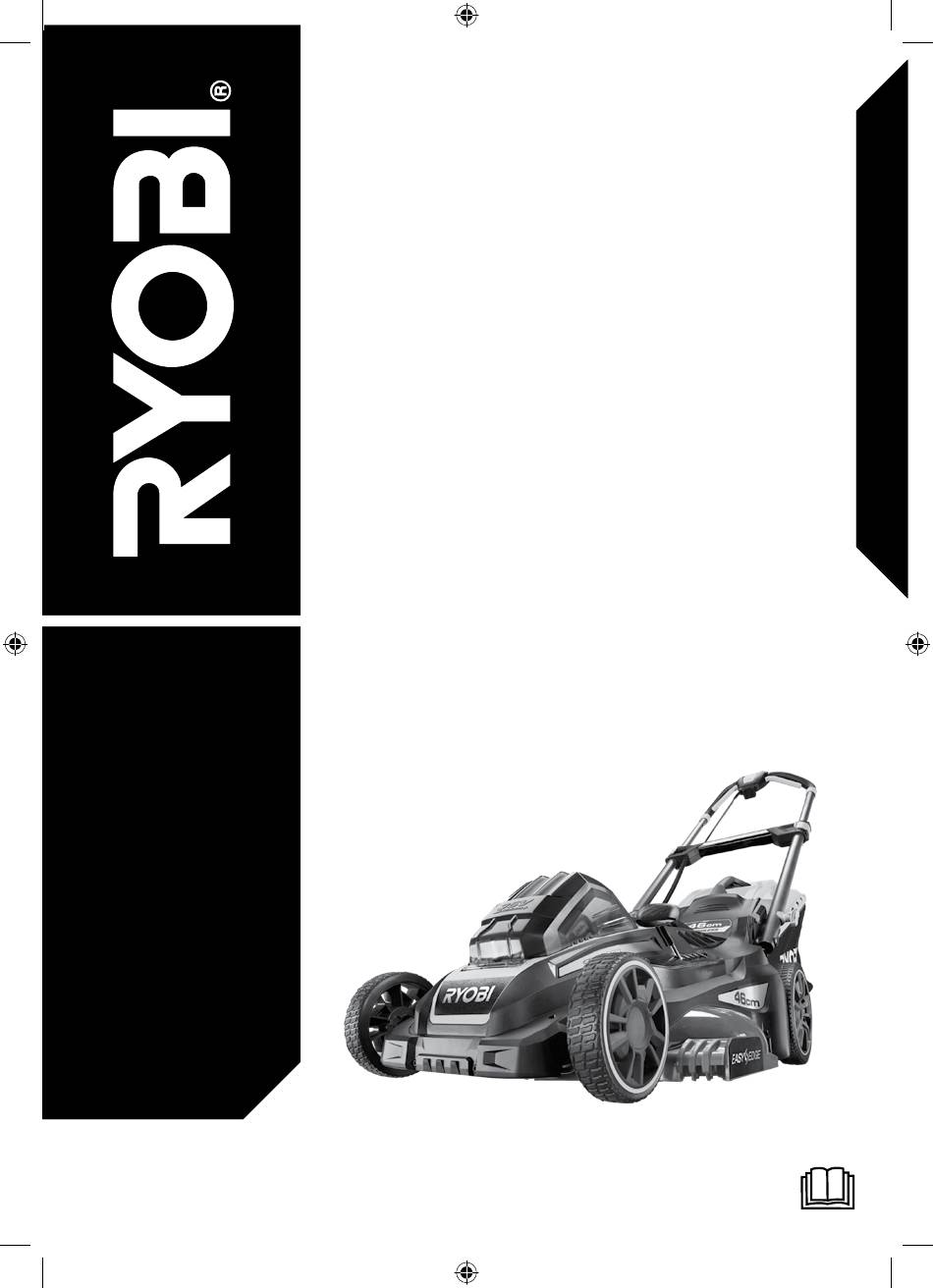

  • Page 1 ORIGINAL INSTRUCTIONS Cordless Lawn Mower RLM36X46S52 RBC36X26E RLM36B46S1 RBC36X26E...
  • Page 2 Important! It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modification.

  • Page 3: Intended Use

    Safety, performance, and dependability have ■ Stay alert, watch what you are doing, been given top priority in the design of your and use common sense when operating cordless lawn mower. the product. Do not operate the product while tired, ill, or under the influence of INTENDED USE drugs, alcohol, or medication.

  • Page 4: Lawn Mower Safety Warnings

    is not alert to the presence of children. ■ Do not open or mutilate the battery pack. Children are often attracted to the product Released electrolyte is corrosive and may and the mowing activity. Never assume cause damage to the eyes or skin. It may that children will remain where you last saw be toxic if swallowed.

  • Page 5: Product Features

    ● Hands and feet of all persons are not ● before checking, cleaning, or working on clear of the cutting enclosure. the product ● before removing the grass catcher or ■ Never operate the product if the on/off opening the grass discharge chute cover switch on the handlebar does not properly start and stop the product.

  • Page 6: Telescopic Handle

    not work, recharge the battery. door to cover the discharge opening. It is not necessary to fit the grass catcher in this NOTE: The battery pack LED indicator does case. not work if the battery protection feature has caused the battery pack to stop powering the ■...

  • Page 7: Maintenance

    recommendations for blade bolt torque, MAINTENANCE which can be found in the product specification table in this manual. WARNING only original manufacturer’s CLEARING BLOCKAGES replacement parts, accessories, ■ Turn off the product, and remove the attachments. Failure to do so can cause isolator key and the battery pack.

  • Page 8: What's In The Box

    measures that can be taken by the operator to Do not expose the product to possibly reduce the effects of vibration: rain or damp condition. ■ Keep your body warm in cold weather. Beware of sharp blades. When operating the product, wear gloves Blades continue to rotate to keep the hands and wrists warm.

  • Page 9: Symbols In This Manual

    SYMBOLS IN THIS MANUAL Parts or accessories sold separately Note Warning The following signal words and meanings are intended to explain the levels of risk associated with this product: DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.
  • Page 10 WHAT’S IN THE BOX RLM36X46S52 *Kit includes battery and charger. *For blade change 17 mm...
  • Page 11 WHAT’S IN THE BOX RLM36B46S1 *Battery and charger are sold separately. *For blade change 17 mm...

  • Page 12: Know Your Product

    KNOW YOUR PRODUCT 1. Start button 9. Mulching plug 2. Handle lock 10. Isolator key 3. Grass catcher 11. Battery door 4. Quick-release fastener 12. Height adjustment lever 5. Rear wheel 13. Grass catcher full indicator 6. Front wheel 14. Telescopic handle 7.
  • Page 13 GETTING STARTED GETTING STARTED GETTING STARTED GETTING STARTED Wear full eye protection, ear protection, non-slip heavy- Align the handle with the brackets using the quick-release Open the handle locks to unlock the handle. Fully extend the handle. NOTE: Make sure that the handle is fully extended Close the handle locks to secure the handle.
  • Page 15 OVERVIEW Using the Product Installing the Mulching Plug p.15 p.16 Cutting with Easy Edge Installing the Grass Catcher Adjusting the Cutting Height p.16 p.17 p.17...
  • Page 16 OVERVIEW Replacing the blade Cleaning the Product p.18 p.20 Emptying the Grass Catcher Storing the Product p.21 p.22...

  • Page 17: Operation

    OPERATION USING THE PRODUCT WARNING: Avoid holes, ruts, bumps, rocks, property stakes, or other hidden objects. WARNING: Do not operate the product on inclines greater than 15°. Mow across the face of slopes, never up and down. 1. Open the battery door, and insert the battery pack.

  • Page 18: Installing The Mulching Plug

    OPERATION INSTALLING THE MULCHING PLUG 1. Raise the rear door, and remove the grass catcher. 2. Install the mulching plug, ensuring that it is secured and locked into place. Lower the rear door. INSTALLING THE GRASS CATCHER 1. Raise the rear door, and remove the mulching plug.
  • Page 19 OPERATION CUTTING WITH EASY EDGE Easy Edge allows the product to easily cut the grass along walls or the edge of your lawn. NOTE: The grass comb pulls grass towards the blade when the product is running along a wall. ADJUSTING THE CUTTING HEIGHT To adjust the deck height, pull the height adjustment lever towards the wheel, then...

  • Page 20: Replacing The Blade

    OPERATION REPLACING THE BLADE 1. Open the battery door. Remove the isolator key and battery pack from the mower. Close the battery door. 2. Tilt the mower on its side so that the blade is vertical. 3. Clean away debris before changing the blade.
  • Page 21 OPERATION 5. Remove and properly dispose of the blade. 6. Install the new blade. 7. Hand-tighten the blade bolt by turning clockwise, then use a 17 mm spanner to further tighten the bolt by 1/2 - 1 turn (35~40 Nm torque). Blade bolt tightening torque (35~40 N.m)

  • Page 22: Maintenance

    MAINTENANCE CLEANING THE PRODUCT After each use, clean the product with a soft, dry cloth, or cleaning brush. WARNING: Do not use water to clean the product.

  • Page 23: Emptying The Grass Catcher

    MAINTENANCE EMPTYING THE GRASS CATCHER NOTE: When the indicator flap is up, the grass catcher can still store grass clippings. NOTE: When the indicator flap is down, the grass catcher is full and needs to be emptied. 1. Raise the rear door. Remove the grass catcher.

  • Page 24: Storing The Product

    STORAGE STORING THE PRODUCT 1. Open the battery door. Remove the isolator key and battery pack from the mower. Close the battery door. 2. Raise the rear door. Remove the grass catcher. 3. Open the handle locks. 4. Retract the handles.
  • Page 25 STORAGE 5. Close the handle locks. 6. Fold the handle. 7. Place the grass catcher on top of the product. 8. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep the product away from corrosive agents such as garden chemicals and de-icing salts.

  • Page 26: Product Specifications

    PRODUCT SPECIFICATIONS VIBRATION LEVEL Product name Cordless Lawn Mower WARNING Model RLM36X46S52/ The declared vibration value has been measured with a RLM36B46S1 standard test method and may be used to compare one tool with another. Rated voltage 36 V d.c.
  • Page 28 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149, Melbourne, Australia Techtronic Industries N.Z. Limited RYOBI is a trade mark of Ryobi Limited, Unit C, 70 Business Parade South, and is used under license. Highbrook, Auckland 2013, New Zealand ©...
