Summary of Contents for Synergy Global Technology RA5024-520-20A-L520

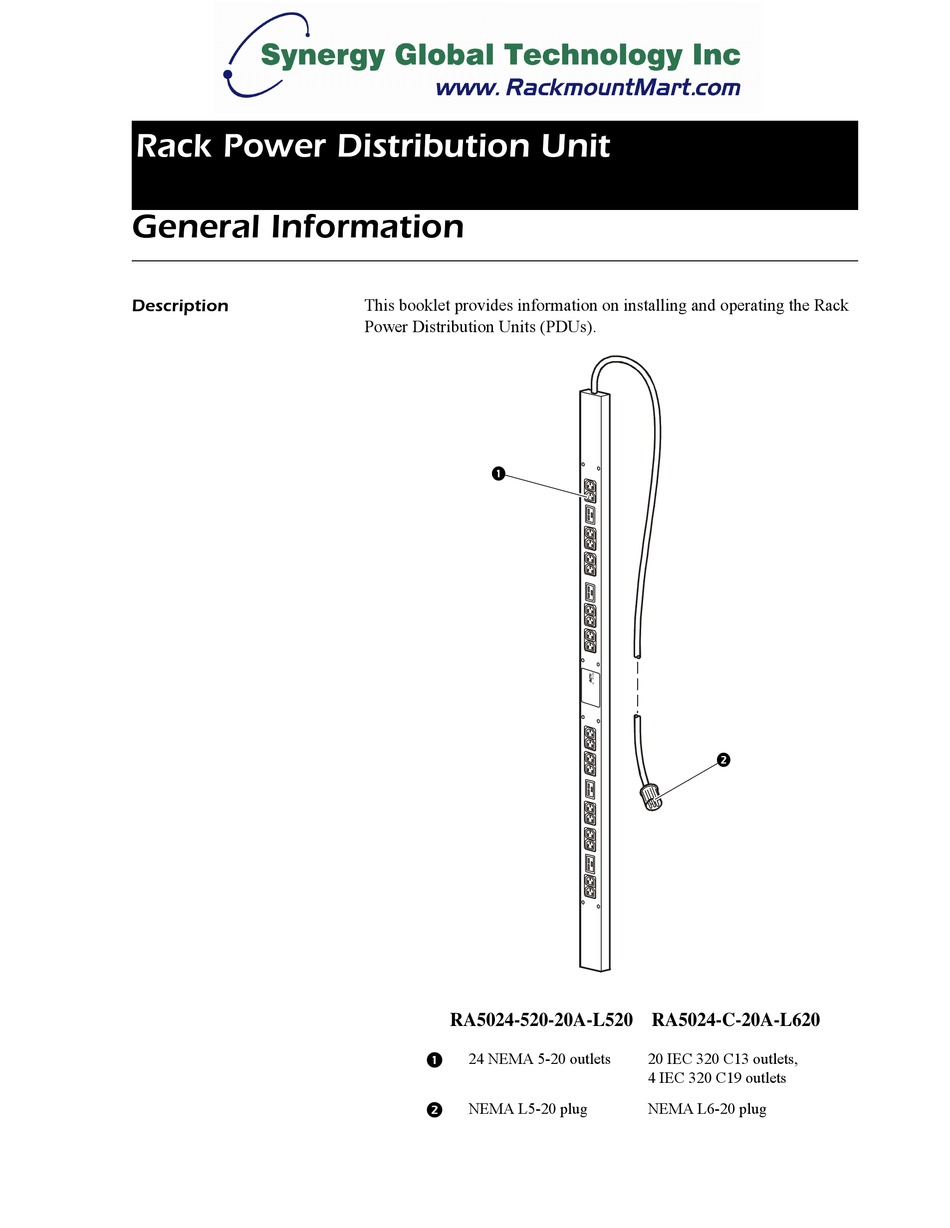

- Page 1 General Information This booklet provides information on installing and operating the Rack Description Power Distribution Units (PDUs). RA5024-520-20A-L520 RA5024-C-20A-L620 24 NEMA 5-20 outlets 20 IEC 320 C13 outlets, 4 IEC 320 C19 outlets NEMA L5-20 plug NEMA L6-20 plug...
- Page 2 General Information Inventory Quantity Item Cord retention tray (with 8 flat-head screws and 24 wire ties) Mounting brackets (with 4 flat-head screws) Warranty registration card Inspect the package and contents for shipping damage, and make sure Receiving inspection that all parts were sent. Report any damage immediately to the shipping agent, and report missing contents, damage, or other problems immediately to us.
- Page 3 How to Install the Rack PDU Attach the cord retention trays to the Rack PDU, using four flat-head Attach the cord screws (provided) per tray. retention trays Attach a cord to the tray by looping the cord and securing it to the tray, Attach cords to the tray using a wire tie (provided).
- Page 4 How to Install the Rack PDU You can install the Rack PDU in one of two ways: using toolless Mounting options mounting pegs (provided) or the mounting brackets (provided). • To install the Rack PDU using the toolless mounting method, install it in the rear of the NetShelter VX Enclosure, in the cable channel directly behind the rear vertical mounting rails.
- Page 5 How to Install the Rack PDU ® To mount the Rack Rack PDU vertically in a NetShelter or any Bracket-mounting standard EIA-310 rack or enclosure: 1. Attach the vertical-mounting brackets to the Rack PDU. Rack Power Distribution Unit...
- Page 6 How to Install the Rack PDU 2. Install the Rack PDU on a vertical mounting rail in your rack or enclosure. Rack Power Distribution Unit...
- Page 7 Specifications Electrical RA5024-520-20A-L520 RA5024-C-20A-L620 Nominal input voltage 120 V 208V Acceptable input voltage ± 10% Nominal input voltage Input frequency 47– 63 Hz Cord length 10 ft Input connectors NEMA L5-20 plug NEMA L6-20 plug 24 NEMA 5-20 outlets 20 IEC 320 C13;...
