Summary of Contents for Cylinda FTTK 4275E

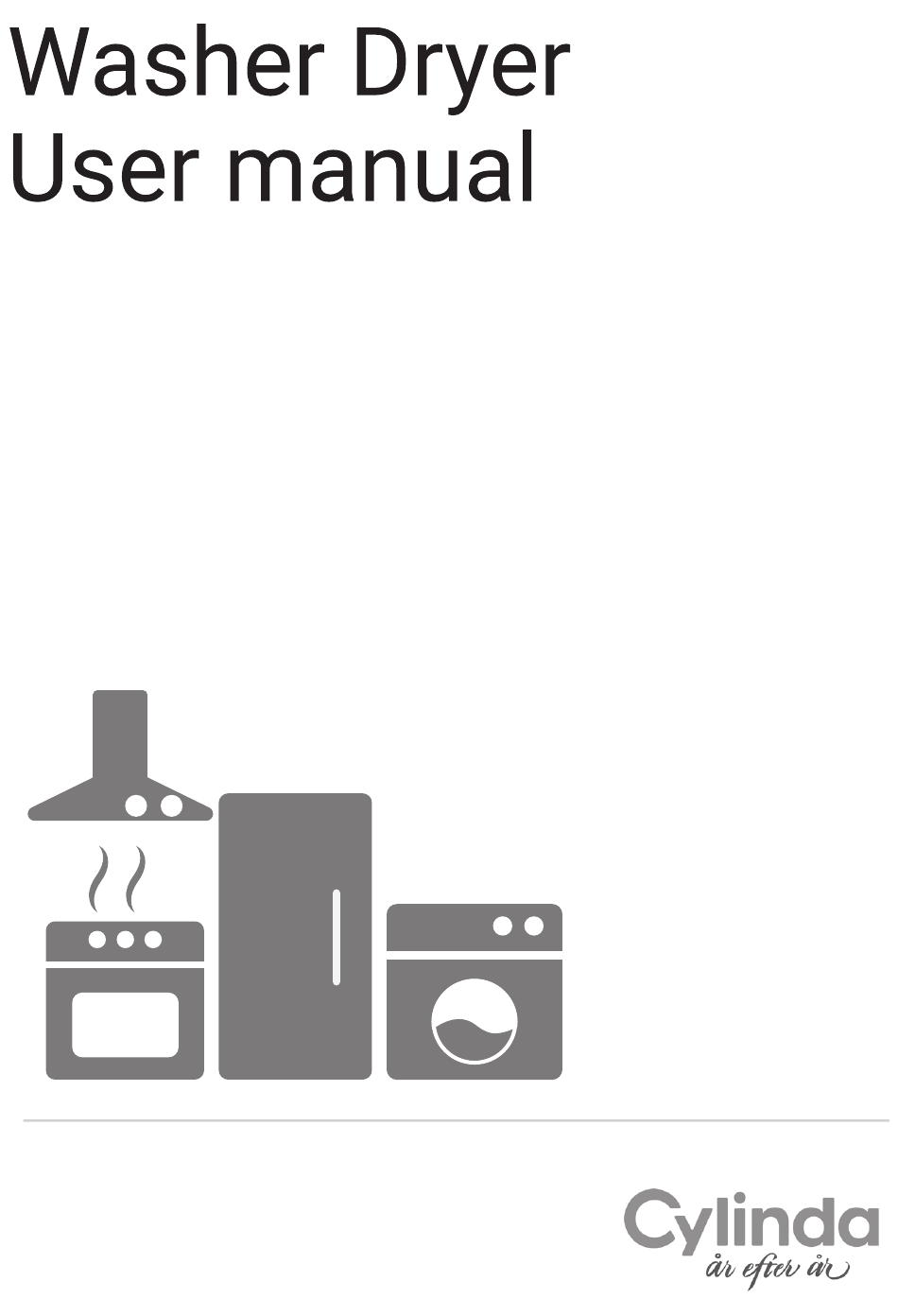

  • Page 1 FTTK 4275E...
  • Page 2 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Type Meaning...

  • Page 3: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS ....................1 1.1 General Safety Warnings ....................2 1.2 During Use ........................8 1.3 Packaging and Environment...................9 1.4 Savings Information ......................9 2. TECHNICAL SPECIFICATIONS ..................10 3. OVERVIEW OF YOUR MACHINE ...................11 3.1 General Appearance.....................11 4. INSTALLATION ........................11 4.1 Removing the Transit Bolts..................

  • Page 4: Safety Instructions

    1. SAFETY INSTRUCTIONS Operating voltage / frequency (220-240) V~/50Hz Total current (A) Water pressure (Mpa) Maximum 1 Mpa / Minimum 0. 1Mpa Total power (W) 2200 Maximum washing capacity (dry laundry) (kg) Maximum drying capacity (kg) • Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base.

  • Page 5: General Safety Warnings

    Cleaning and user maintenance should not be made by children without supervision. NOTE: For a softcopy of this user manual, please contact the following address: “washingmachine@standardtest.info”. In your e-mail, please provide the model name and serial number (20 digits) which you can find on the appliance door.
  • Page 6 of your Washer Dryer is 15-25 °C. • Where the temperature is below 0 °C, hoses may split or the electronic card may not operate correctly. • Please ensure that garments loaded into your Washer Dryer are free from foreign objects such as nails, needles, lighters and coins.
  • Page 7 • In the event of a fault, unplug your Washer Dryer and switch off the water supply. Do not attempt to repair your Washer Dryer yourself. Repairs should only be undertaken by an approved service agent. • Never open the detergent drawer while your Washer Dryer is running.
  • Page 8 RISK OF BURNS • Do not touch the door, drain hose or any discharged water while your Washer Dryer in running. The high temperatures involved pose a burn risk. • Open the door fully after the drying process. Do not touch the door glass. It will reach high temperatures and pose a burn risk.
  • Page 9 Fire Risk • Do not keep flammable or explosive liquids near your machine. • Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
  • Page 10 • Please ensure that garments loaded into your Washer Dryer are free from foreign objects such as nails, needles, lighters, matches and coins. Fall and Injury Risk • Do not climb on your Washer Dryer. • Make sure hoses and cables do not cause a trip hazard.

  • Page 11: During Use

    contact with skin or eyes. Keep cleaning materials out of reach of children. 1.2 During Use • Do not allow pets near the machine. • Please ensure that you have removed all of the packaging materials and protective tape from the outside of your Washer Dryer, inside the drum and inside the detergent drawer before using.

  • Page 12: Packaging And Environment

    1.3 Packaging and Environment DISPOSE OF PACKAGING AND YOUR OLD MACHINE RESPONSIBLY Removal of packaging materials Packaging materials protect your machine from any damage that may occur during transportation. Please recycle the packaging materials. Recycled material reduces raw material consumption and lowers waste production. 1.4 Savings Information Some important information to get the most efficient use out of your machine:...

  • Page 13: Technical Specifications

    2. TECHNICAL SPECIFICATIONS Maximum washing capacity (dry laundry) (kg) * Maximum drying capacity (kg) Spin speed (rpm) 1200 Number of programmes Operation voltage / Frequency (v/hz) 220-240 / 50 Maximum: 1 Water pressure (mpa) Minimum: 0.1 Dimensions (HxWxD) (mm) 845x597x582 * You should not put dry laundry in your machine for drying.

  • Page 14: Overview Of Your Machine

    3. OVERVIEW OF 7. Power Cord YOUR MACHINE 8. Drain Hose 9. Transport Screws 10. Adjustable Feet 11. Plastic Drain Hose Holder: (Do not remove the holder; the operation of the machine will be affected). 4. INSTALLATION 4.1 Removing the Transit Bolts 1.

  • Page 15: Adjusting The Feet / Adjusting Adjustable Stays

    4.2 Adjusting the Feet / • The mains cord of your washing Adjusting Adjustable Stays machine is equipped with an earthed plug. This plug should always be inserted to an earthed socket of 10 amps. • If you do not have a suitable socket and fuse conforming with this, please ensure the work is carried out by a qualified electrician.

  • Page 16: Water Discharge Connection

    the red water inlet valve (if applicable). • Never attempt to extend the water drain hose. • Hand tighten the connections. If in any doubt, consult a qualified plumber. • Do not put the water drain hose from your machine into a container, bucket or • Water flow with pressure of 0.

  • Page 17: Detergent Drawer

    5.1 Detergent Drawer 5.2 Sections Main wash detergent compartment: This compartment is for liquid or powder detergents or limescale remover. The fluid detergent level plate will be supplied inside your machine. (*) Fabric conditioner, starch, detergent compartment: This compartment is for softeners, conditioners or starch.

  • Page 18: Program Dial

    6. USING YOUR 5.3 Program Dial WASHING MACHINE 6.1 Preparing Your Laundry • To select the desired programme, turn the programme dial either clockwise or anti-clockwise until the marker on the programme dial points to the chosen programme. • Make sure that the programme dial is set exactly to the programme you want.

  • Page 19: Putting Laundry In The Machine

    curtains or place them in a washing net weights of typical laundry items: or bag. LAUNDRY TYPE WEIGHT (gr) 6. Reverse textiles such as pants, knitwear, t-shirts and sweat shirts. Towel 7. Wash socks, handkerchiefs and other Linen small items in a washing net. Bathrobe 1200 Quilt cover...

  • Page 20: Operating Your Machine

    of the detergent drawer. Do not exceed 6.7 Additional Functions the MAX level. 1. Temperature Selection • Thick softeners may cause clogging of Use the washing water temperature the drawer and should be diluted. adjustment button to alter the automatically programmed washing water temperature.
  • Page 21 3. Delay Timer 4. Drying With Duration selection : You can use this auxiliary function to delay If you continue pressing, duration options the start time of the washing cycle for 1 to (0:30, 0:60, 0:90, 120 minutes) will be 23 hours .

  • Page 22: Child Lock

    level option is selected, the time on the position and another programme is selected the previously selected programme display will be updated. The time on the dis- continues from where it was left. play will increase when switching from iron- To deactivate the child lock, press and hold ing dry towards Cupboard dry.

  • Page 23: Programme Table

    7. PROGRAMME TABLE Programme Cotton 60°C Cotton 40°C Eco 20° Selectable washing 90°, 80°, 70°, 40, 60°* “- -C”(Cold wash), 30°,40°* “- -C”(Cold wash), 20°* temperatures (°C) Maximum washing/drying 7.0 / 5.0 7.0 / 5.0 3.5 / 3.5 capacity (kg) Selectable spin “- - -”...
  • Page 24 Programme Rinse Allergy Safe Spin / Drain Selectable washing “- -C”(Cold wash), 30°, “- -C”(Cold wash)* “- -C”(Cold wash)* temperatures 40°,50°,60* (°C) Maximum washing/drying 7.0 / 5.0 3.5 / 3.5 7.0 / 5.0 capacity (kg) Selectable spin “- - -” (No spin), 400, 600, “- - -”...
  • Page 25 Selectable drying functions Programme duration (Min.) Programme Cotton Dry Quick Wash & Dry Cotton Wash & Dry Selectable washing “- -C”(Cold wash), 30°, 40°, “- -C”(Cold wash), 30°* temperatures 60°*, 90° (°C) Maximum 0.5 kg (3 shirts) (33 minutes) washing/drying capacity (kg) Selectable spin speed (rev /...

  • Page 26: Warning

    8. CLEANING AND 8.2 Water Inlet Filters Water inlet filters prevent dirt and foreign MAINTENANCE materials from entering your machine. We recommend that these filters are cleaned when your machine is unable to receive 8.1 Warning sufficient water, although your water supply is on and the tap is open.

  • Page 27: Pump Filter

    8.3 Pump Filter 6. Close the filter cover. WARNING: The water in the pump may be hot, wait until it has cooled down before carrying out any cleaning or maintenance. (*) Specifications may vary depending on the machine purchased. 8.4 Detergent Drawer The use of detergent may cause residual build up in the detergent drawer over time.

  • Page 28: Body / Drum

    9. Body / Drum 1. Body Use a mild, non-abrasive cleaning agent, or soap and water, to clean the external casing. Wipe dry with a soft cloth. • Rinse with a brush and lots of water. 2. Drum • Collect the residues inside the Do not leave metallic objects such as detergent drawer slot so that they needles, paper clips, coins etc.

  • Page 29: Troubleshooting

    10. TROUBLESHOOTING Repair of your machine should be carried out by an authorised service company. If your machine requires repair or if you cannot solve an issue with the information provided below, then you should: • Unplug your machine from the mains power supply. • Turn off the water supply.

  • Page 30: Automatic Fault Warnings And What To Do

    FAULT POSSIBLE CAUSE TROUBLESHOOTING Increase the amount of detergent following the Hard water. manufacturer’s instructions. Unsatisfactory washing result. Your laundry is too tightly packed Check that your laundry is spread out. together in the drum. As soon as the machine is The end of water drain hose is too Check that the drain hose is at a suitable height.
  • Page 31 ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
