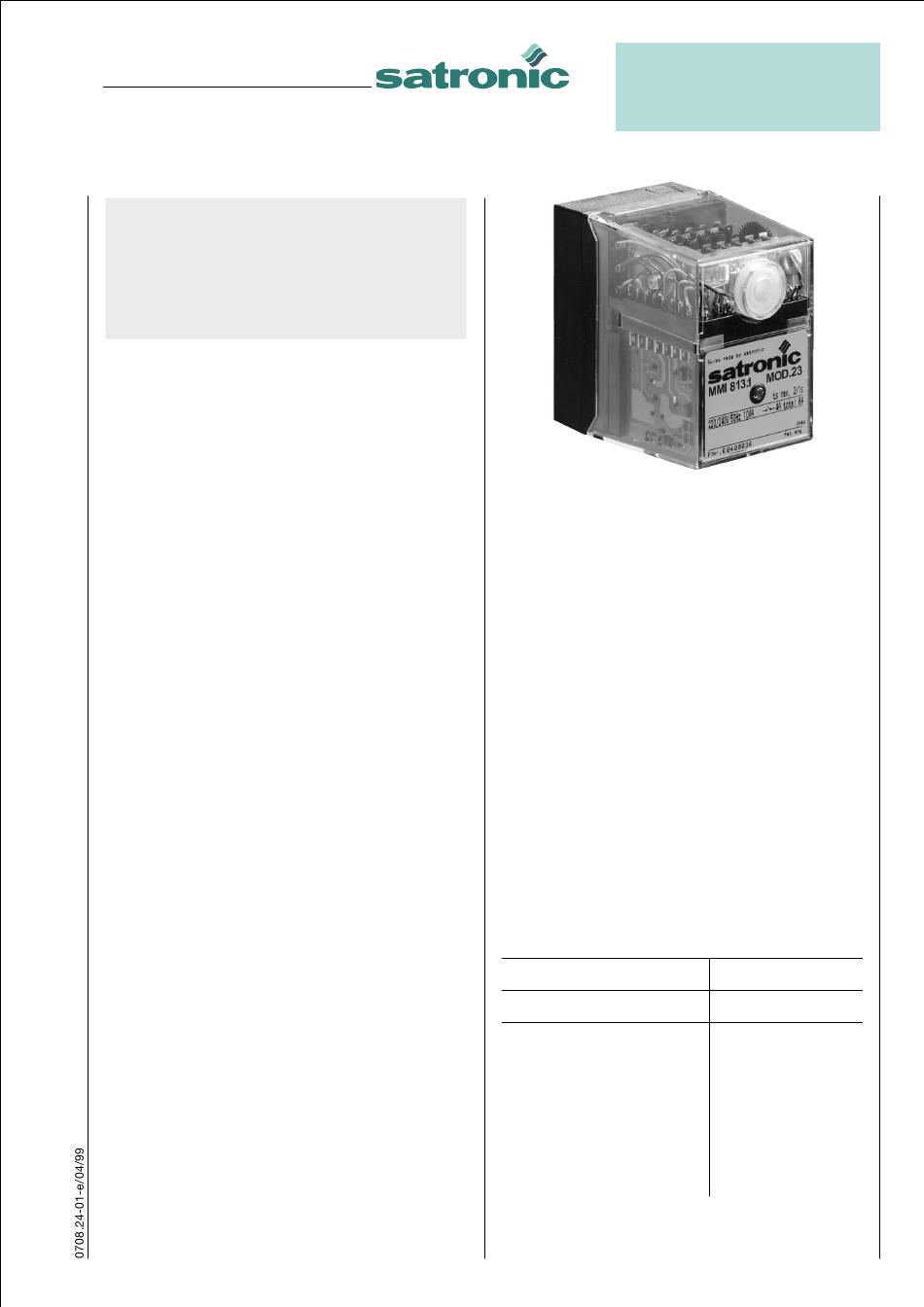

Satronic MMI 813.1 Manual

Gas burner automatic
Safety control
For 2-stage forced draught gas burners
Designated for an air damper control
Possible flame detectors:
- Ionization probe
- Infrared flicker detector

INTRODUCTION

The gas burner automatic safety control MMI 813.1 controls
and monitors blown gas- and combined burners of any
nominal thermal load (tested and certified according to
EN 298).
Together with an air damper motor, a 2-stage burner with
2 fuel valves, a 2-stage operation with 1 fuel valve or a
modulating system ave possible.

CONSTRUCTIONAL FEATURES

The automatic control is housed in a non-inflammable,
transparent, plug-in type plastic case and contains:
– Synchronous motor with speed reducer gears as the
drive for the switching cam
– Switching cam with informative programme display in
colour
– 12 times cam drive for controlling the programme
sequence
– Plug-in type circuit boards with the electronic components
The following important indicating - and operating elements
are located on the front panel of the automatic control:
– Illuminated pushbutton for indication of malfunctions
and reset
– Programme display in colour
– Screw for central mounting
MMI 813.1
A Honeywell Company

TECHNICAL DATA

Operating voltage
Differing frequency
Rating fuse
Power consumption
Max. current per output
term. 3
term. 4, B
term. 5, 6, C
Total load
Amplifier sensitivity
Minimum required
Ionization current
Flame detector cable
Air pressure monitor
Waiting time for
malfunction remedy
Running time
air damper for 90°
Flame detector
- Ionization probe
- Infrared flicker detector
Weight, incl. base
Mounting position
Insulation standard
Admissible ambient
temperature for controller
and flame detector
Classification acc. EN 298
Automatic Control
Model
Waiting time at start approx. tw
Maximum reaction time
of air pressure monitor
Pre-purge time
Air damper open signal
during pre-purge
Pre-ignition time
Ignition time, overall
Ignition safety time
Delay time terminal 6
For external resetting, the remote reset device FR 870
(art. No. 70700) can be utilized. (Refer to documentation
750).
1
220 / 240 V (-15... +10%)
50 Hz (50 - 60 Hz)
results in a proportional
deviation of the time.
max. 10 A rapid, 6 A slow
10 VA
2A, cos ϕ 0.2
2A, cos ϕ 0.4
1A, cos ϕ 0.4
5A, cos ϕ 0.4
1 µA
5 µA
max. 20 m cable length
1 working contact 4 A, 220 V
none
max. 15 sec.
IRD 1020
350 g
any
IP 44
-20° C... +60° C
BTLLXN
MMI 813.1
23
9
tlw 10
tv1 34
tlk 36.5
tvz 3
tz 6
ts 3
tv2 6
