Definitive Technology PROMOUNT 90 User Manual

PROMOUNT 90
The ProMount 90 is intended for use with Definitive Technology ProMonitor,
ProCenter, Mythos Gem and Gem XL loudspeakers or similar loudspeakers with
1 / -20 thread receptacles. Each bracket can support up to 10 lbs (4.5 kg). Do not
4
use a single bracket with any speaker weighing more than 10 lbs (4.5 kg). Use two
(2) ProMount 90 brackets with the ProCenter 1000 and ProCenter 2000.

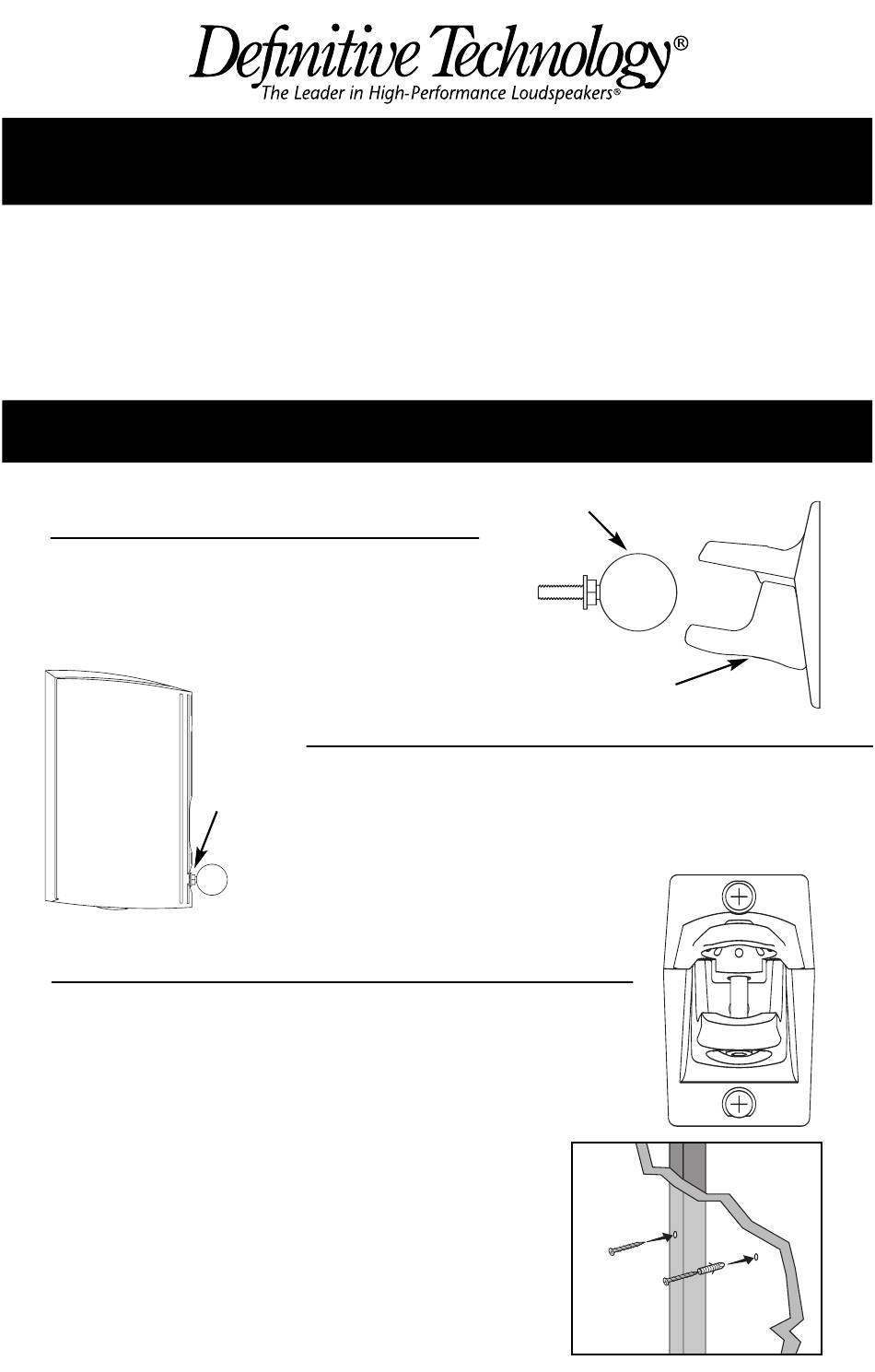

Installation

Step 1
Loosen clamping screw with supplied Allen (hex)
wrench until ball pivot slides out. Be careful not
to fully remove the clamping hex screw.
ball pivot
Step 3
1. Using the wall plate as a template, mark the two
screw-hole positions on the wall where you wish
to mount the bracket.
2. If you are certain that there is a stud behind
the wall surface, drive #10 wood screws
(not included) through the wall and into
the stud (a).
3. If there is no stud behind the wall at the
chosen location, install wall anchors (not
supplied) into the wall by following the
wall-anchor manufacturer's instructions (b).
Step 2
Fasten the ball pivot to the
on the back of the loudspeaker. Tighten the ball pivot
nut
nut using a
USER'S GUIDE
ball pivot
clamping screw
1 / -20 threaded receptacle
4
7 / " (11 mm) wrench.
16
a
b
