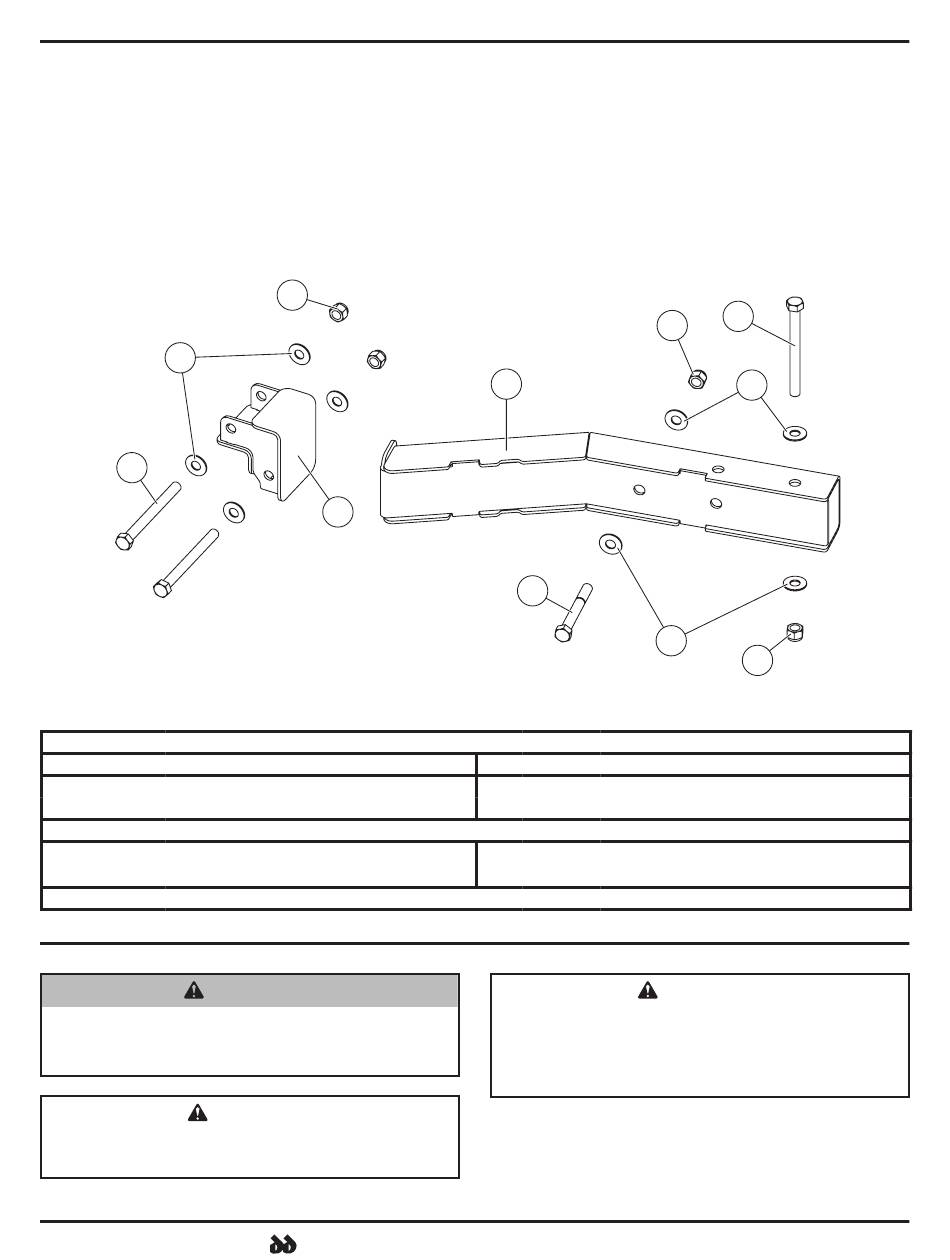

PARTS LIST
5
4
Item
Part
Qty Description
1
74523
2
Outrigger
2
74527
2
On-Blade Bracket
3
2
3/8-16 x 3 Hex Cap Screw G8
4
6
3/8-16 x 4 Hex Cap Screw G8
ns = not shown
WARNING
Do not exceed GVWR or GAWR, including
blade and ballast. The rating label is found on
the driver-side vehicle door cornerpost.
CAUTION
Read this document before installing the
blade stop kit.
Blade Stop Kit
6
2
74528 Blade Stop Kit
11809 Bolt Bag
A DIVISION OF DOUGLAS DYNAMICS, LLC
1
3
Item
Part
Qty Description
ns
11809
1
Bolt Bag
5
16
3/8 Flat Washer SS
6
8
3/8 x 16 Hex Locknut GB
G = Grade
Use standard methods and practices when
attaching snowplow and installing accessories,
including proper personal protective safety
equipment.
May 1, 2020
Lit. No. 74520, Rev. 00
4
6
5
5
6
CAUTION
74528
Advertisement
Summary of Contents for Douglas Dynamics Western 74528
- Page 1 The rating label is found on attaching snowplow and installing accessories, the driver-side vehicle door cornerpost. including proper personal protective safety equipment. CAUTION Read this document before installing the blade stop kit. A DIVISION OF DOUGLAS DYNAMICS, LLC...
- Page 2 74528 INSTALLATION INSTRUCTIONS 2. Slide an outrigger into one opening of the T-frame and align the mounting holes. The outrigger must angle outward, as shown. Park the vehicle on a smooth, level, hard surface, such as concrete. Lower the blade to the ground and turn the control OFF.
- Page 3 74528 On-Blade Bracket to Blade 1. On one blade wing, align an on-blade bracket with the mounting holes on blade rib, as shown. On-Blade 2. Insert two 3/8" x 4" cap screws with 3/8" washers Bracket through the bracket and rib mounting holes. Add another washer and a 3/8"...
- Page 4 74528 Copyright © 2020 Douglas Dynamics, LLC. All rights reserved. This material may not be reproduced or copied, in whole or in part, in any printed, mechanical, electronic, film, or other distribution and storage media, without the written consent of the company. Authorization to photocopy items for internal or personal use by the company's outlets or snowplow owner is granted.
