Summary of Contents for Iccons GT6-IXF

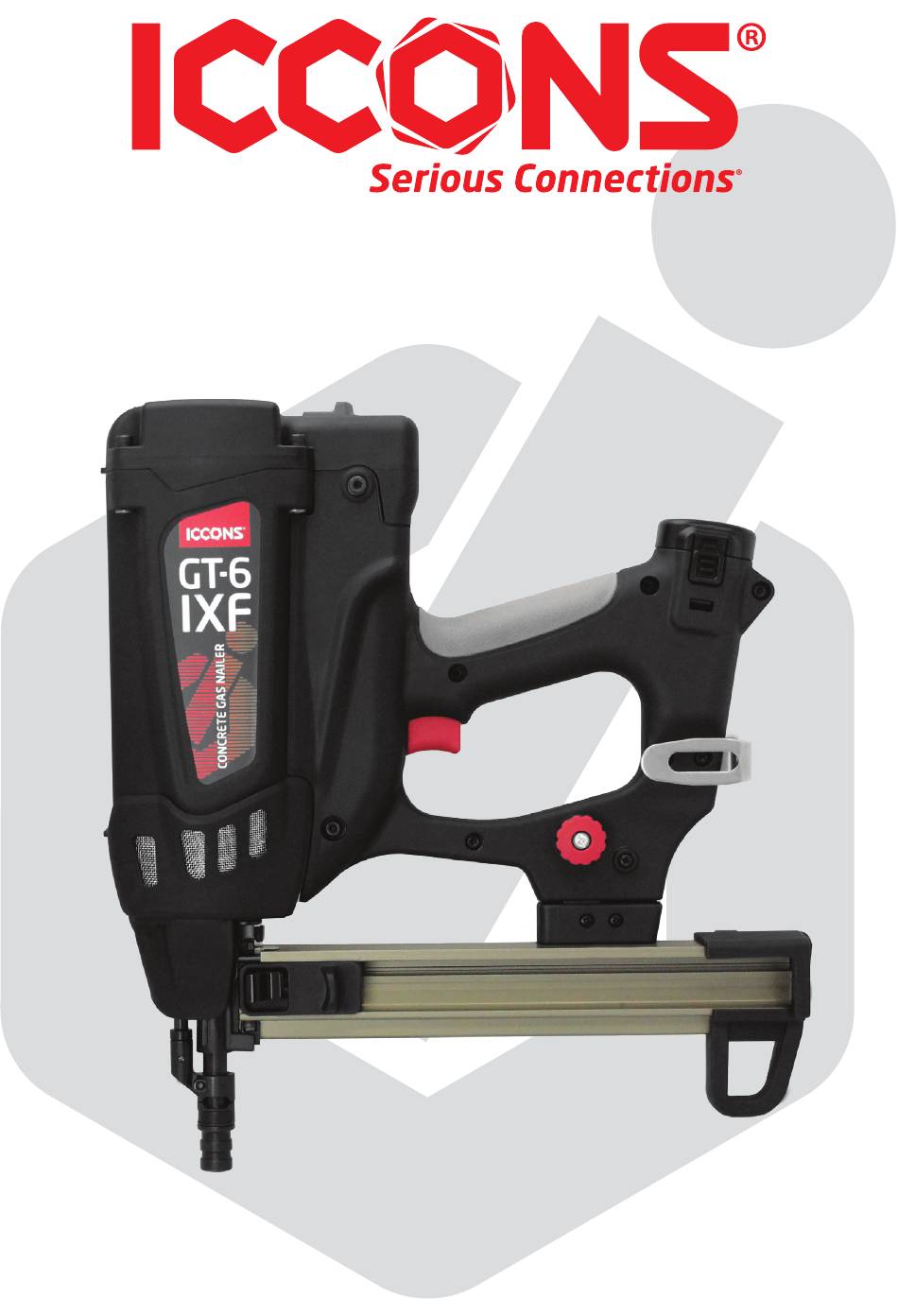

- Page 1 GT6-IXF GAS TOOL USER MANUAL 190813 rev.1...
-
Page 2: Table Of Contents
ICCONS® GAS TOOL GT6-IXF USER MANUAL Table of Contents Version GT6-IXF - 190813 Rev.1 Symbols Used In This Operating Manual Copyright: General Safety Instructions Introduction ICCONS® Pty Ltd Safety Of The Fastening Tool 383 Frankston Dandenong Road, Safety At Work... -
Page 3: Passing On And Duplication Of This Document
ICCONS® GAS TOOL GT6-IXF USER MANUAL The ICCONS® Pty Ltd Gas Nailer is referred Symbols Used in this to as “tool” in this general safety instruction. Operating Manual ICCONS® Pty Ltd is referred to as “manufacturer” in this general safety WARNING: READ ALL SAFETY instruction. -
Page 4: Safety At Work
ICCONS® GAS TOOL GT6-IXF USER MANUAL fixing is made. Safety of the Fastener Driving Tool Cont..- Do not drive fasteners on top of other - Operator should carry out regular fasteners. maintenance (cleaning and lubrication) in accordance with the operation manual to - Never drive fasteners into free space keep the tool in good working order. -
Page 5: Iccons® Pty Ltd Assumes No Liability For
ICCONS® GAS TOOL GT6-IXF USER MANUAL 3.2 Transport DANGER ! KEEP FUEL CELL AWAY FROM SMOKE AND FIRE The regulations by transport categories are: - Road/Rail: ADR/RID – UN code 2037 WARNING ! LIQUID GAS CAN CAUSE class 2.1 INJURY IN THE CONTACT WITH THE - Sea: IMDG –... -
Page 6: All Product Designations And Brand Names Are The
ICCONS® GAS TOOL GT6-IXF USER MANUAL damaged, disconnect the supply and stop Use Of The Battery & charging the battery immediately. If cable Charging System or plug damaged, do not use for charging battery. Contact authorized service agent for replacement. -
Page 7: Tool Operation
ICCONS® GAS TOOL GT6-IXF USER MANUAL Tool Operation 5.2 Installing & Removing The Battery 5.1 Charging Steps: 1. Plug the battery charger into the proper AC voltage source, green light will be flashing. 2. Insert the battery into charger, red light will Steps: alight indicating the battery is charging. -
Page 8: Preparing The Fuel Cell
ICCONS® GAS TOOL GT6-IXF USER MANUAL Steps: 5.4 Preparing The Fuel Cell 1. Open the flap. 2. Insert the fuel cell, make sure the rubber is placed underneath the fuel cell. 3. Direct the jet nozzle into the adaptor. 4. Close the flap. -
Page 9: Clearing Nail Jam
ICCONS® GAS TOOL GT6-IXF USER MANUAL Caution ! NOTE: • Please READ and UNDERSTAND the • Do not release the magazine with section “General Safety Instructions” for fasteners inside. The follower may pop personal and working environment safety. the nails out and cause injury. -
Page 10: Troubleshooting
ICCONS® GAS TOOL GT6-IXF USER MANUAL SYMPTOM 3 Troubleshooting Orange L.E.D on charger is blinking. WARNING: Possible Services To reduce the risk of serious reasons personal injury, ALWAYS unload the battery, the nails and fuel Charger Replace Charger. cell from the tool before all Damaged repairs. -
Page 11: Pre-Combustion / Combustion Stage
ICCONS® GAS TOOL GT6-IXF USER MANUAL 6.3 Pre-Combustion / Combustion Damaged valve Contact authorized Stage of Operation plate /reed of the service agent for repair. cylinder body. SYMPTOM 1 Contact Arm does not depress fully, tool does SYMPTOM 3 not operate. -
Page 12: Returning / Purging Stage Of Operation
ICCONS® GAS TOOL GT6-IXF USER MANUAL Possible Services Possible Services reasons reasons Fuel Cell is low. Replace fuel cell Built-up dirt Contact authorized according to User Manual. and debris service agent for repair. inside cylinder Fastener strip Use only fasteners may be binding. -
Page 13: Technical Specification
No extra lubrication required. 10 YY 49 MM XXXX Warning! Only specified Fuel Cell and Lubricant by ICCONS® can be used on the tools, please - Year of construction (last two digits) consult ICCONS® or local distributors. - Month of construction... -
Page 14: Parts List
ICCONS® GAS TOOL GT6-IXF USER MANUAL Parts List... - Page 15 ICCONS® GAS TOOL GT6-IXF USER MANUAL POS. CODE DESCRIPTION POS. CODE DESCRIPTION 90 412 1 SOCKET SCREW 17 043 3 MOTOR (M4) 17 006 0 17 044 0 MOTOR GUIDE (M25) 90 525 1 SOCKET SCREW 17 049 0 CONNECTOR HOLDER...
-
Page 16: Declaration Of Conformity
ICCONS® GAS TOOL GT6-IXF USER MANUAL... -
Page 17: Copyright
ICCONS® GAS TOOL GT6-IXF USER MANUAL 10 Copyright 11 Disposal Copyright: Recycle the tool and its packaging in ICCONS® Pty Ltd an environmentally friendly manner in 383 Frankston Dandenong Road, accordance with the recycling regulations Dandenong South applicable in your country. -
Page 18: Warranty
ENTIRE LIABILITY IS LIMITED TO THE PURCHASE PRICE OF THIS PRODUCT. If you wish to make a warranty claim, then the tool or part must be returned to ICCONS® Pty Ltd at the owner’s expense. ICCONS® will inspect the returned tool/parts, and at its own option may replace the tool/ parts and return it to the owner at its own cost if deemed to fall within the scope of the warranty conditions. - Page 19 ICCONS® GAS TOOL GT6-IXF USER MANUAL ICCONS® Pty Ltd 383 Frankston Dandenong Road, Dandenong South Victoria, 3175 Australia Tel: +61 (03) 9706 4344 Fax: +61 (03) 9768 3329 Email: info@iccons.com.au Web: www.iccons.com.au This manual must be observed when using the tool. All product designations and brand names are the property of their owners and are not explicitly marked as such.
