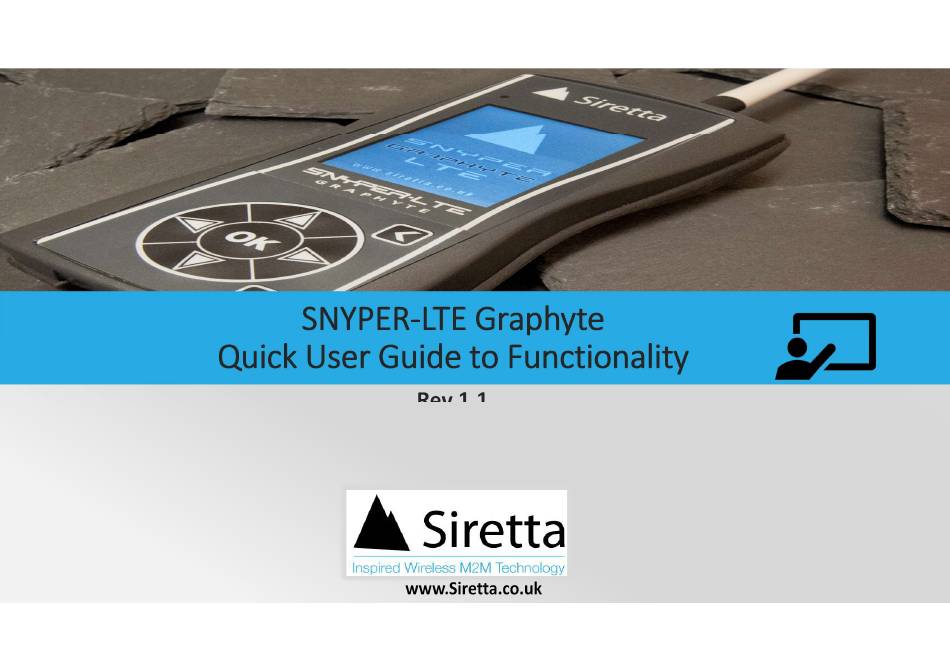

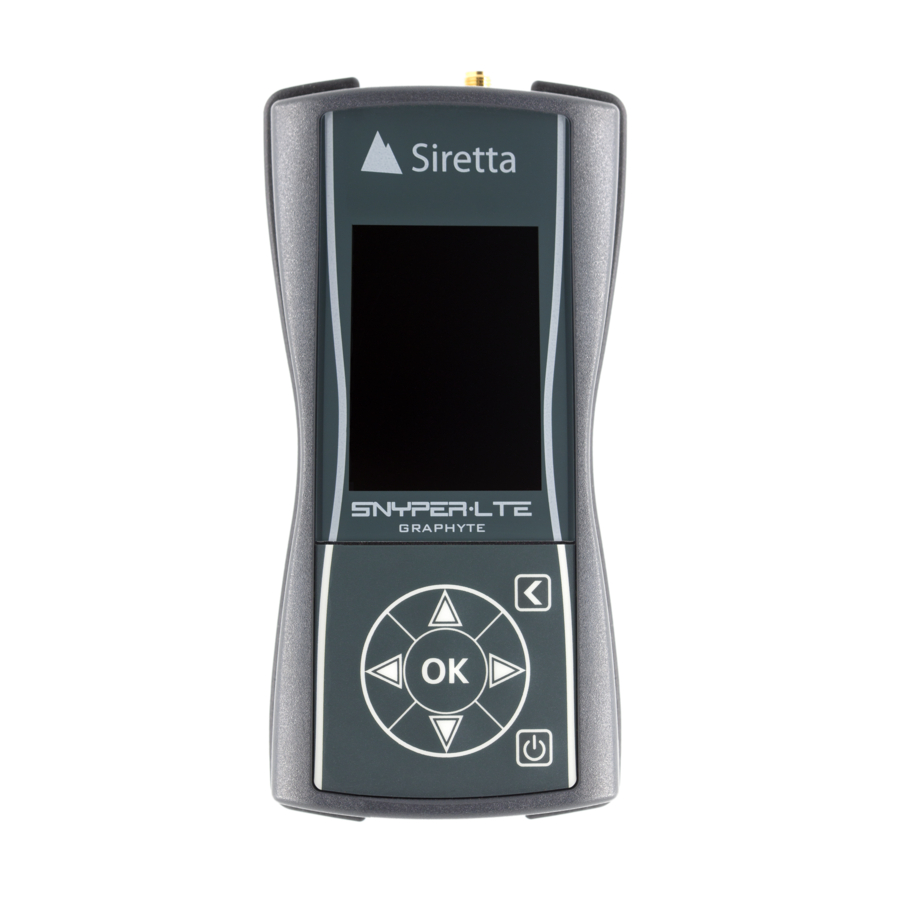

  • Page 1 SNYPER-LTE Graphyte Quick User Guide to Functionality Rev 1.1 www.Siretta.co.uk...
  • Page 2 SNYPER-LTE Graphyte: The SNYPER Story www.Siretta.co.uk Advanced Signal Strength Testers...
  • Page 3 SNYPER-LTE Graphyte: Main Menu Saved Results – Stored Surveys Survey – Conducting a survey Setup – Configuring your settings PC Connect – USB download of results to PC www.Siretta.co.uk Advanced Signal Strength Testers...
  • Page 4 SNYPER-LTE Graphyte: Setup Menu  Languages: • English/French/German/Italian/Spanish  Display: • Brightness & text colour  Auto Off: • Dimming control • Automatic power off after set time period  Documents: • Enabling/disabling survey files saved to the device  Sound: •...
  • Page 5 SNYPER-LTE Graphyte: Conducting a New Survey Conduct individual surveys • LTE(4G) • UMTS(3G) • GSM(2G) Conduct a combined survey • FULL(2G, 3G & 4G combined) www.Siretta.co.uk Advanced Signal Strength Testers...
  • Page 6 SNYPER-LTE Graphyte: Setting your Survey Requirements Set “Cycles” • The no. of surveys you wish to conduct • 10 pre-set levels • 1, 5, 10, 15, 25, 50, 75, 100, 200, 500 Set the “Time” • The time interval between each survey start •...
  • Page 7 SNYPER-LTE Graphyte: Post Survey Results SHOW RESULTS: An LTE Result Index Showing key metrics SHOW SUMMARY: Visible Base-Stations at defined signal level www.Siretta.co.uk Advanced Signal Strength Testers...
  • Page 8 SNYPER-LTE Graphyte: Saved Survey Results Sequenced Files Date & Time Stamped • Format: Month-Day-Hour-Minutes Suffixed by type of Survey • 2G, 3G, 4G • FL(Combined 2G, 3G & 4G) www.Siretta.co.uk Advanced Signal Strength Testers...
  • Page 9 SNYPER-LTE Graphyte: HTML Results Analysis SNYPER-LTE Graphyte HTML Graphics – 3G(UMTS) Survey Log: 2 days 2hours 100 Surveys One survey every 30mins. Most Consistent Highest 3G Level Signal is the top O2 signal (blue trace) Most prevalent provider at higher signal level is 3UK (red traces) www.Siretta.co.uk...
  • Page 10 SNYPER-LTE Graphyte: CSV Log Files LTE(4G) Survey (CSV Snapshot) Survey CSV Files provide detailed base- station information TimeStamp: Ind: xRFCN: dBm: %: RSSI: MCC: MNC: CellID: LAC/TAC: Band: Name: 03/06/2018 23:20 1 6300 -62 51 39 2757898 57395 Vodafone • Survey Summary Log – averaged data over...
  • Page 11 SNYPER-LTE Graphyte: liveSCAN 1. Select Result 3. liveSCAN activates 2. Press Scan 4. View Signal Level, Average Signal Level & Operator www.Siretta.co.uk Advanced Signal Strength Testers...
  • Page 12 SNYPER-LTE Graphyte: Carrycase & Accessories • PSU with adapters • USB Cables • USB Car Charger • Omni Antennas • Directional Antenna • Extn. Cable for Dir. Antenna • Tripod & Cradle www.Siretta.co.uk Advanced Signal Strength Testers...
  • Page 13 Want to know more? Please visit our website www.Siretta.co.uk Thank you www.Siretta.co.uk Advanced Signal Strength Testers...
