Aquavision DB100 Operating Instructions Manual

Hide thumbs Also See for DB100:
Table of Contents

Advertisement

Quick Links

Download this manual
DB Range Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DB100 and is the answer not in the manual?

Questions and answers

Related Manuals for Aquavision DB100

Summary of Contents for Aquavision DB100

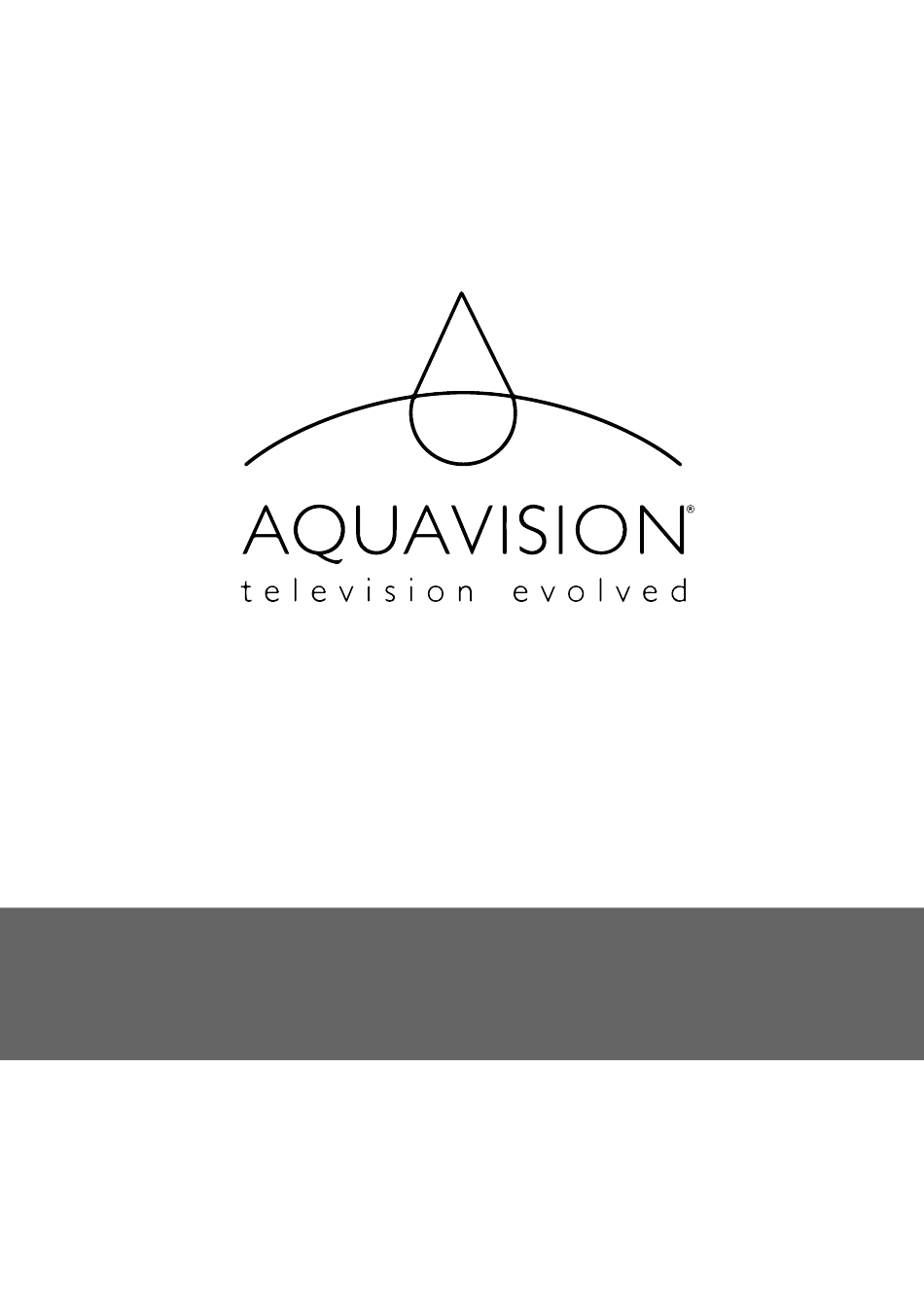

  • Page 1 DB Range Operating Instructions...

  • Page 3: Table Of Contents

    Contents: WARNING 1.7 Personal Video Recorder Supplied Accessories 1.7.1 PVR File System 1. Main Menu on TV 1.7.2 Time Shift 1.1 Channel 2. Launcher App 1.1.1 Auto Tuning 2.1 File Manager 1.1.2 Manual Tuning 2.2 Media Centre 1.1.3 Antenna Type 2.2.1 Video in Media Centre 1.1.4 Country 2.2.2 Music in Media Centre...

  • Page 4: Warning

    To prevent fire or shock hazard, do not expose the rear of the set to rain or moisture. Do not rub or strike the Aquavision with anything hard as this may scratch, mark, or damage the TV LCD permanently.
  • Page 5 8. Ventilation Your AQUAVISION will, under normal operating conditions, require convection ventilation. It has been designed so that any heat will dissipate through the glass at the front of the unit. This will get hot but need not cause concern. If the unit is to be installed in a place other than a domestic room, please consult your supplying dealer.
  • Page 6 25. Installation It is the installer’s responsibility to ensure that the AQUAVISION® unit is installed correctly as stated in these instruc- tions and in conjunction with the latest safety regulations. Your guarantee will be void if any problems are caused through installation faults.

  • Page 7: Supplied Accessories

    Supplied Products 1x Rear Support Leg 1x DB100 Television 2x Front Feet (optional) (optional) 2x Safety Cables 1x Aquavision Remote Control 1x Android Smart TV Remote (optional) 6x M5 Hex Bolts 2x Heavy Lifting Straps 4x Batteries 1x IEC Power Lead...

  • Page 9: Main Menu On Tv

    1. Main Menu on TV...

  • Page 10: Channel

    1. Main Menu on TV 1.1 Channel At the DTV/ATV input source, the Main Menu items from the top are Channel Setting->Pic- ture->Sound->Advanced. The first item listed is the Channel Settings page as default. Press the right arrow key to bring up the sub page options. In this page, there are four sub items: Auto Tuning, Manu- al Tuning, Programme Guide (this item is only showed in DTV channel) and Programme Edit.

  • Page 11: Manual Tuning

    1.1.2 Manual Tuning Manual Tuning contains ATV Manual Tuning and DTV Manual Tuning Item Adjust Item Default Description Channel 1-100 Current channel shows Colour System PAL,NTSC,SECAM,AUTO Programme colour system Sound system I,L,M,N,BG,DK Programme sound system Frequency 40-100mhz Channel frequency size Programme Search Start or stop channel search 1.1.3 Antenna Type...

  • Page 12: Channel Lock

    1.1.6 Signal Information - Only shows in DTV 1.1.5 Channel Lock - Only shows in DTV 1.1.7 Programme Guide (Only shows in DTV) Programme Guide is also known as EPG (Electronic Programme Guide), it provides all of the tele- vision programme information in a period of time. In this programme guide section, there are three columns: channel, programme and date.

  • Page 13: Picture

    1.2 Picture 1.2.1 Picture Mode Item Adjust Range Default Description - Standard - User Picture - Lightness Change the current Standard mode - Soft ‘Picture Mode’ - Vivid - Natural Item Description Contrast Adjust Contrast for user operation Brightness Adjust Brightness for user operation Sharpness Adjust Sharpness for user operation Saturation...

  • Page 14: Zoom Mode

    1.2.4 Zoom Mode Input source Panel resolution ATV/DTV 16:9, 4:3, Auto, Zoom1, Zoom2 HDMI 16:9, 4:3, Auto, Just Scan, Zoom, Zoom2 16:9, 4:3 1.3 Sound 1.3.1 Sound System Item Adjust Range Default Description Standard User Sound Change the current Music Standard Mode ‘Sound Mode’...

  • Page 15: Spdif Out

    1.3.4 SPDIF Out Make the sound out in PCM Make the sound out in RAW Close the function of SPDIF OUT 1.3.5 Alone The Alone option is for sound only. This setting gives you the option to switch to a blank screen but still have sound from the chosen channel.

  • Page 16: Store Mode

    1.4.4 Store Mode 1.4.5 Restore to Default This resets settings such as Menu time to default value (5s). 1.5 Input Source Menu In TV interface, if you want to change the channel, you can press the source key to launch TV source and change the selected application to select different inputs.

  • Page 17: Personal Video Recorder

    1.7 Personal Video Recorder 1.7.1 PVR File System PVR function is only available for DTV. It includes Record, Time-shift and Playback functions. Re- cording includes in-time record and preserve record. In-time recording can be accessed through the short-cut key immediately. Record and Playback can be done at the same time, that means you can record DTV and play USB equipment at the same time.

  • Page 18: Time Shift

    1.7.2 Time Shift Time-shift is similar to the Record menu, it includes two modes: one is Full Mode and the other is Sim- ple Mode. They can switch by Exit key. At Time-shift mode, Time-shift keeps still. Function Pause Start time-shift play Stop Stop Time-shift mode Return to Time-shift Play condition and previous playing for 30 seconds.

  • Page 19: Launcher App

    2. Launcher App...

  • Page 20: File Manager

    2. Launcher App The basic four applications in this system are App Manager, Media Center, File Manager, and Settings. They provide the most common functions for managing the TV system in launcher, including file oper- ator, music, and application installer or uninstaller. 2.1 File Manager The file manager is used to show and operate all files in the local storage and USB.

  • Page 21: Music In Media Centre

    2.2.2 Music in Media Centre 2.2.3 Pictures in Media Centre 2.3 Settings Item Description Network Network setting Language and Input Set OSD language and input methods Time and Date Set time zone and current time System Some system information on TV WiFi Display Set WiFi display on System Upgrade...

  • Page 22: Network Settings

    2.3.1 Network Settings 1) Network Status 2) Wired Connection 3) Wireless Connection 4) PPPoe Connection 5) Wireless Hotspot 2.3.2 Language and Input Press Column “Language Setting” to change OSD language Press Column “Modify the default input method” to change input method...

  • Page 23: Time And Date

    2.3.3 Time and Date Column Description Get time and date ON: Get time and date over network over network OFF: Get time and date over TV ON: Use 24-hour format Use 24-hour format OFF: Use 12-hour format 1:Month-Day-Year 2:Day-Month-Year Select date format 3:Year-Month-Day Time Zone Set the Time Zone...

  • Page 25: Specification And Codes

    3. Specification & Codes...

  • Page 26: Specification Overview

    3.1 Specification Overview Pinnacle is a digital and analogue SMART TV board, which is able to receive the PAL/SECAM analogue television and digital television (DVB-T/C/T2) signals. It also supports H.264/H265 video decoding. Pinnacle is suitable for use throughout Europe (including the UK), Australia, etc. It can also be used to create a WIFI hotspot.
  • Page 27 Features cont: Keyboard Power/Menu/Source/ Up/ Down/ Left/ Right OSD Language English/French/German/Spanish/Italian Frequency response 100Hz-15KHz @±3dB (1KHz -12dB reference signal) Audio Amplifier 2*8W @ 8ohm THD+N<10%@1KHz Max Output Power *15W@8ohm THD+N<10%@100Hz @ 24V, Audio input:0.5Vrms） Standby < 0.2W(Main Board Only) Pre-set Mode for USB: Media File Extension Codec - Video...
  • Page 28 Pre-set Mode for USB cont: .rm*/.rmvb* RV30/RV40 COOK/MP2 1080P@60fps / 40Mbps MOVIE .dat/.vob/.mpg/.mpeg MPEG-1, MPEG-2 Max Resolution:352×288 .mp3 Sample Rate: 16K~48KHz Bit Rate: 8K~320Kbps MUSIC .m4a/.aac Sample Rate: 8K~48KHz .jpeg Progressive JPEG Max Resolution:7000x7000 .jpeg Baseline JPEG Max Resolution: 15360x8640 PHOTO .bmp Max Resolution: 15360x8640...

  • Page 29: Codes

    3.2 IP, IR & RS232 Codes 3.1 The AQUAVISION Codes are shown below to assist in home networking installation: 03FCH00 0X07 NMBR 0007 NMBR0007 0000 006C 0000 0022 015B 00AD 0016 0041 0016 0041 0016 0016 0016 0016 0016 0016 0016 0016...
  • Page 30 03FCH08 0X12 IDVB ???? INPUT, IDVB FOL- 0000 006C 0000 0022 015B 00AD 0016 0041 LOWED BY 0016 0041 0016 0016 0016 0016 0016 0016 0016 DIGITAL, NEW 4 DIGIT 0016 0016 0016 0016 0016 0016 0016 0016 0016 FOL- CHANEL 0016 0041 0016 0041 0016 0041 0016 0041 0016 LOWED...
  • Page 31 03FCH0F 0X36 GREN GREEN GREN00 0000 006C 0000 0022 015B 00AD 0016 0041 0016 0041 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0041 0016 0041 0016 0041 0016 0041...
  • Page 32 03FCH17 0X35 INDX INDEX INDEX 0000 006C 0000 0022 015B 00AD 0016 0041 0016 0041 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0016 0016 0041 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0041...

  • Page 33: Rs232 Control

    03FCH1E 0X00 NUMB 0000 NMBR0000 0000 006C 0000 0022 015B 00AD 0016 0041 0016 0041 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0016 0016 0041 0016 0041 0016 0041 0016 0041 0016 0016 0016 0016 0016 0016 0016 0041 0016 0016 0016 0016 0016 0016...

  • Page 34: Ip Control

    3.4 IP Control Your Aquavision comes as standard with IP Control. Initial IP is set to 192.168.1.11. Please go to 192.168.1.11/setup to change these settings. 3.5 Pixel Errors LCD displays are made up of a set number of pixels and each pixel is made from 3 sub-pixels; one Red, one Blue and one Green.

  • Page 35: Warranty

    3.7 Warranty Your AQUAVISION® television has a 2 year return to base warranty. The warranty means that if technical assistance is needed as a consequence of an error in a component, or if AQUAVISION®’s products do not meet a reasonable standard, then the television can be repaired or replaced at the manufacturer’s discretion Please find the contact details at the end of this section or contact your...
  • Page 36 Telephone: +44(0)161 711 1900 The specifications shown were accurate at time of going to press. AQUAVISION’S® policy of continuous development means some changes may take place. Please check with the office for confirmation. All screen pictures simulated. All logos and trade marks acknowledged. E. & O.E.
