Description

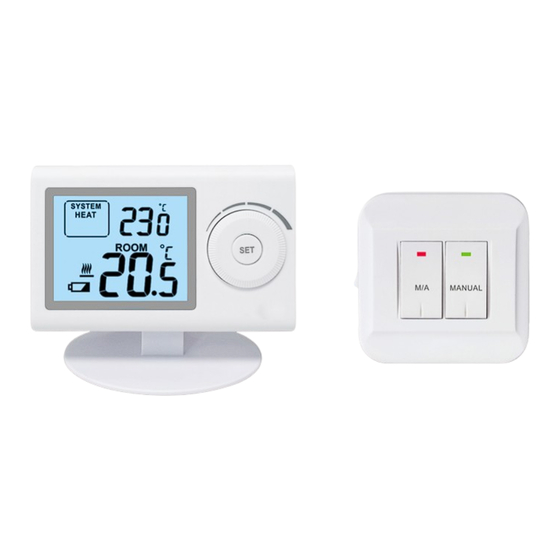

The wireless digital thermostat is ideal to control the temperature of any room(bedroom, kitchen, etc.) and is
very easy to use. Allows for the operation of heating/OFF/cooling equipment, when the temperature of the
environment to be monitored is lower/higher than a user-preset reference temperature. Very easy installation
according to the step by step manual instruction. Mounting and connection can be made either by a technician
or any other person.
IMPORTANT: carefully read the manual of use before the installation and follow the precautions when
using the product.

Precautions on battery use

l
Use only batteries of indicated size and voltage.
l
Make sure you plug the batteries observing the correct polarity as indicated in the battery compartment.
Battery connection with incorrect polarity may damage the thermostat.
l
Do not mix different types of batteries such as an alkaline and a zinc carbon, or old batteries with new
batteries.
l
If you expect not to use the thermostat for a long period, disconnect it from the equipment and remove the
batteries to prevent damage resulting from possible battery leakage.

Precautions on installation and use of the thermostat

l
The wireless digital thermostat is exclusively for indoor use (closed rooms, garages, porches etc.). Do not
install outdoor or in locations directly exposed to rain.
l
Do not install in places with high humidity.
l
The thermostat can operate one device only. The connection of several equipment in cascade or in series
(for example, a heater and a fan) does not guarantee the correct functioning of the device.
l
Cut off mains power before connecting any device.
l
Use the utmost caution when making wiring for connection with equipment and electricity mains: a wrong
connection or unreliable shielding of electrical cables may cause damage to the device and jeopardize
your safety.
Note: the manufacturer waives any responsibility for damage caused by improper installation or use of the
device other than described in this manual.

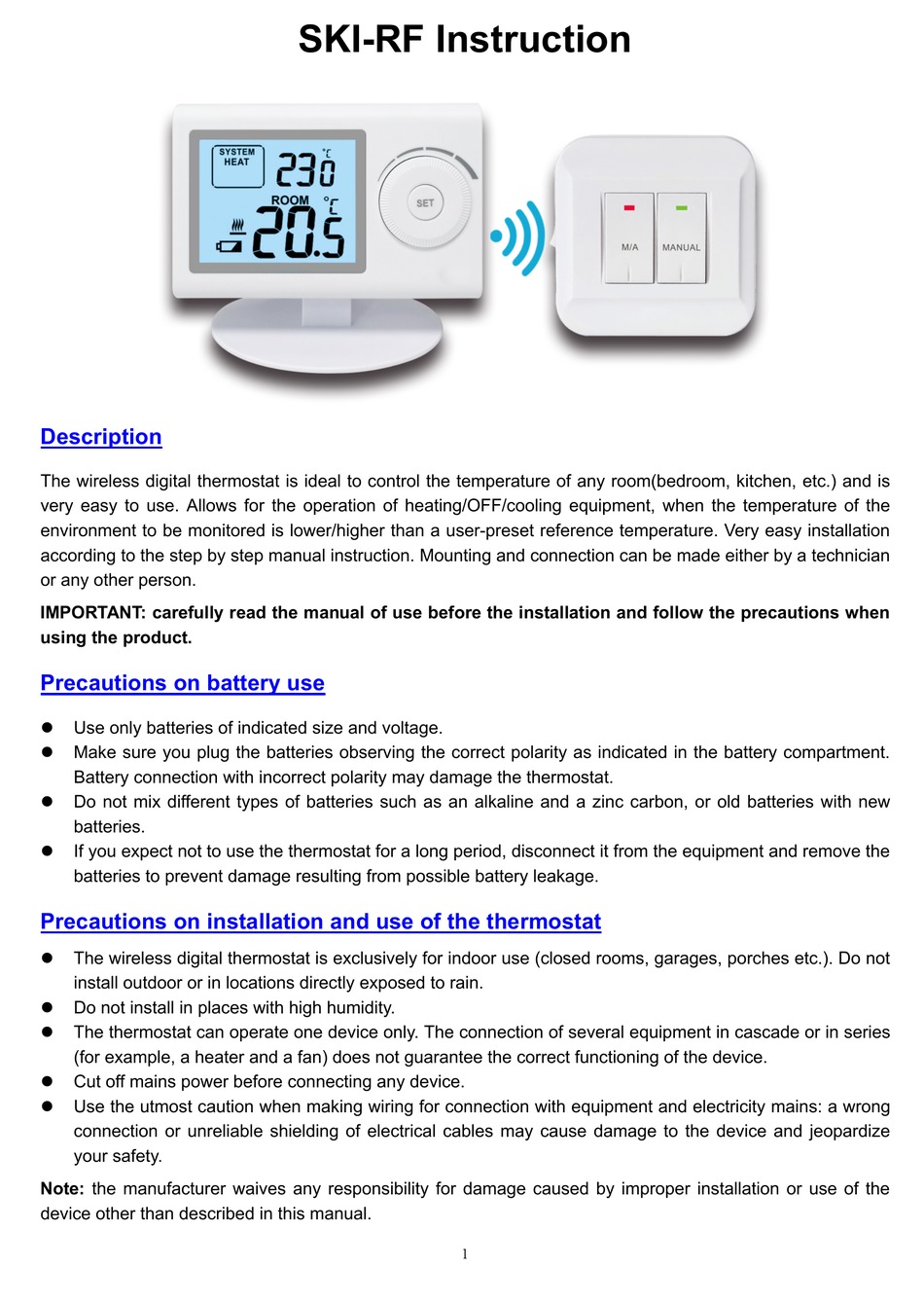

SKI-RF Instruction
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKI-RF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Plikc SKI-RF

  • Page 1 SKI-RF Instruction Description The wireless digital thermostat is ideal to control the temperature of any room(bedroom, kitchen, etc.) and is very easy to use. Allows for the operation of heating/OFF/cooling equipment, when the temperature of the environment to be monitored is lower/higher than a user-preset reference temperature. Very easy installation according to the step by step manual instruction.
  • Page 2 Specification Transmitter (thermostat): 1.Programmability: Non-programmable 2.Display Temperature Range:0°C~40°C (in 0.1°C increments) 3.Adjustable Temperature Range:5°C~35°C (in 0.1°C increments) 4.Temperature measurement accuracy: ±1°C (at 20°C) 5.Power Supply: DC 2x AAA 1.5V Alkaline Batteries 6.Load Rating: 6(2)A, 230V 7.Low Battery Indicator: Display “ ”...
  • Page 3 How to set the temperature 1. Turn the dial in clockwise to increase the temperature, and then press the SET button to confirm or wait for 5 seconds to automatically confirm. 2. Turn the dial in anti-clockwise to reduce the temperature, and then press the SET button to confirm or wait for 5 seconds to automatically confirm.
  • Page 4 The voltage at the terminals No.1 and No.2 depends only on the controller system, the wire size is determined by the type of device to be controlled. The thread length is not relevant, the receiver can be installed near the boiler or far from it, but not installed under the housing of the boiler.
  • Page 5 ON/OFF button on the receiver O: OFF When there is no need to use the thermostat, the users can just turn OFF (by the left side of the receiver) to power off the receiver and it does not need to remove the front case. I: ON The receiver is normal operating;...
