TxCell™ Scanning Slit Lamp Adapter (SSLA) – Installation for IRIDEX 990 Slit Lamp
(Haag-Streit style)
Demonstration video can be found at
A
Tonometer
mount
Tighten
screw
http://iridex.com/Contact/Setup.aspx
B
Slit rotation
scale
IRIDEX | Mountain View, CA 94043| 650.940.4700 |

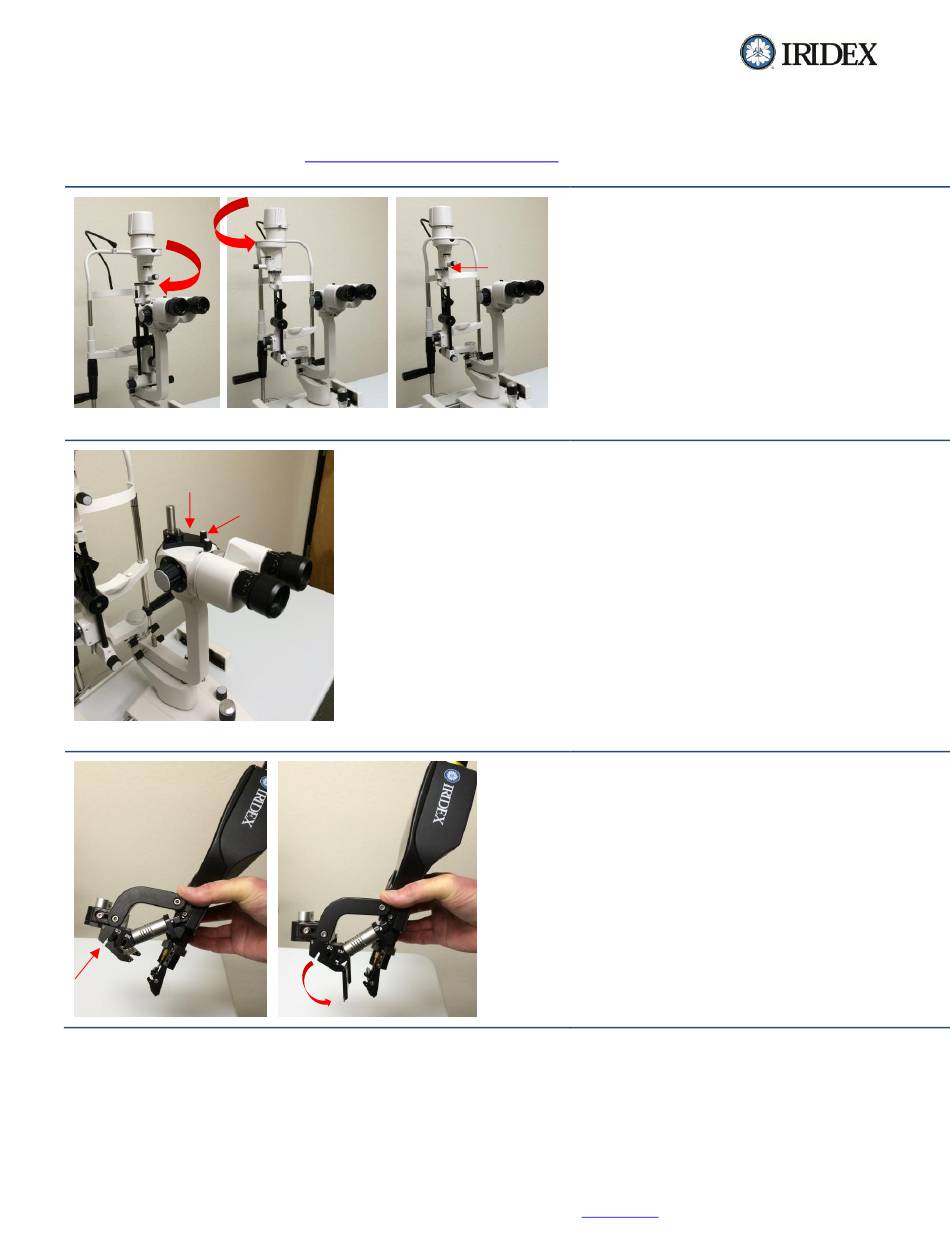

Install SSLA before connecting SSLA cables. Always
C
handle cables with care.
1. Move the slit lamp as far away as possible from
the headrest and lock it into position.
2. Gently rotate the illumination tower 90° to the
left (A); then rotate the lamp housing to the
right to align with 20° (B) as shown on the slit
rotation scale in figure (C). This will allow
enough clearance for installation of the SSLA.
3. Install tonometer mount on the magnification
changer housing, and tighten screw to secure.
4. Release the eye-safety filter plate from its
storage detent position.
www.iridex.com
(Continued on the back)
LT0617 12/2014
