NexusLink WB-1750-KIT Quick Install Manual

QUICK INSTALL GUIDE
AC1750 Wireless Bridge
SKU: WB-1750-KIT
Table of Contents

1..Getting to Know Your Device

2.......................LED Explanation

3..............................Applications

4............Setting Up Your Device
5........................Troubleshooting
6.................. Additional Support

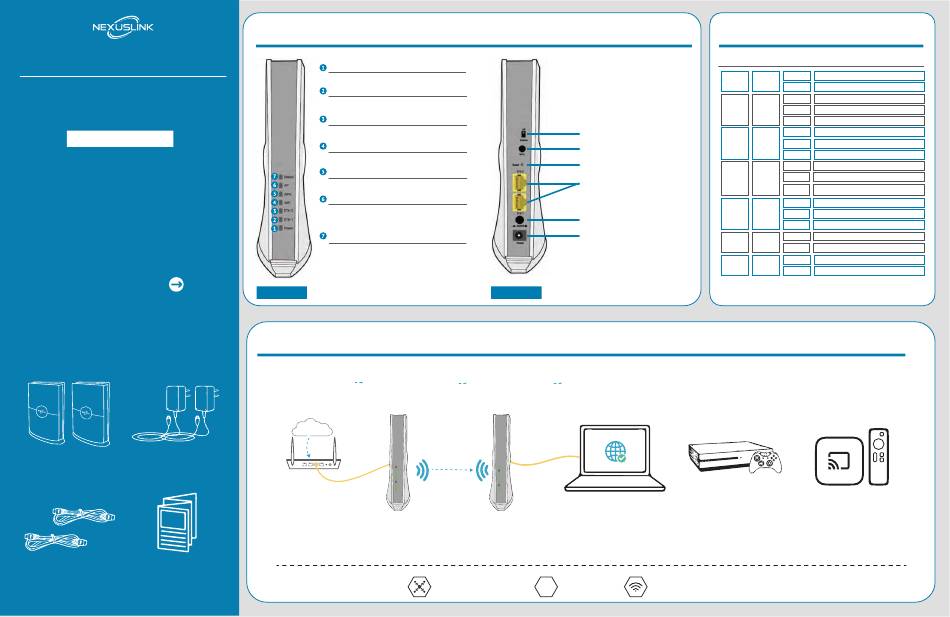

START HERE
PACKAGE CONTENTS
x2 AC1750 x2 AC Power
Wireless Bridges Adapters
x2 RJ-45 x1 Quick
Ethernet Cables Install Guide
1
GETTING TO KNOW YOUR DEVICE
DISPLAYS POWER ON/OFF STATUS
POWER LED is lit when the Wireless Bridge is powered on.
DISPLAYS ETH 1 CONNECTION STATUS
ETH 1 LED is lit when connected to LAN port 1
DISPLAYS ETH 2 CONNECTION STATUS
ETH 2 LED is lit when connected to LAN port 2
DISPLAYS WIFI CONNECTION STATUS
WiFi LED is lit when WiFi is enabled.
DISPLAYS WPS CONNECTION STATUS
WPS LED is lit when WPS (WiFi Protected Setup) is successful.
AP MODE WHEN LIT
AP (Access Point) Mode LED is lit on Wireless Bridge "1".
This is the Wireless Bridge that should be connected to your
Internet device (Router, Modem, etc.).
STATION MODE WHEN LIT
Station Mode LED should be lit on Wireless Bridge "2". This is
the Wireless Bridge that should be connected to your end device
(PC, Gaming Device, Streaming Device, etc.).
F R O N T
3
APPLICATIONS
Network Device Wireless Bridge 1
INTERNET
Station
AP
WPS
WiFi
ETH 2
ETH 1
Power
NexusLink's Wireless Bridge delivers concentrated Wireless from your router to your gaming and streaming devices. Unlike traditional wireless, the
WB-1750-KIT uses private point-to-point LAN that penetrates through walls and other building materials. Since the WB-1750-KIT delivers high-power
and high speed connection, it is best used for high-bandwidth applications such as gaming or streaming.
LOWER LATENCY
MU-MIMO TECHNOLOGY
AP/STATION SWITCH AP/STATION SWITCH
WPS BUTTON WPS BUTTON
RESET BUTTON RESET BUTTON
GIGABIT ETHERNET PORTS
ON/OFF BUTTON
POWER JACK
B A C K
Wireless Bridge 2 Internet-Enabled Device
Station
AP
WPS
WiFi
ETH 2
ETH 1
Power
HIGH-PERFORMANCE
HIGH-SPEED
AC
AC1750
5GHz DEDICATED BAND
2
LED EXPLANATION
LED COLOR MODE DESCRIPTION
ON Power is on
POWER GREEN
OFF Power is off
ON Ethernet connected
ETH1 GREEN OFF Ethernet is not connected
BLINK Ethernet is transmitting/receiving
ON Ethernet connected
ETH1 GREEN OFF Ethernet is not connected
BLINK Ethernet is transmitting/receiving
ON WiFi enabled
WIFI GREEN OFF WiFi disabled
When no client connected
[AP]
BLINK
[Station] When not connected to the AP
ON WPS connection successful
WPS GREEN OFF No WPS (5G) association process ongoing
BLINK WPS (5G) connection in progress
ON WB-1750 is working in AP mode
AP GREEN
OFF WB-1750 is working in Station Mode
ON WB-1750 is working in Station Mode
Station GREEN
OFF WB-1750 is working in AP Mode
OR OR
