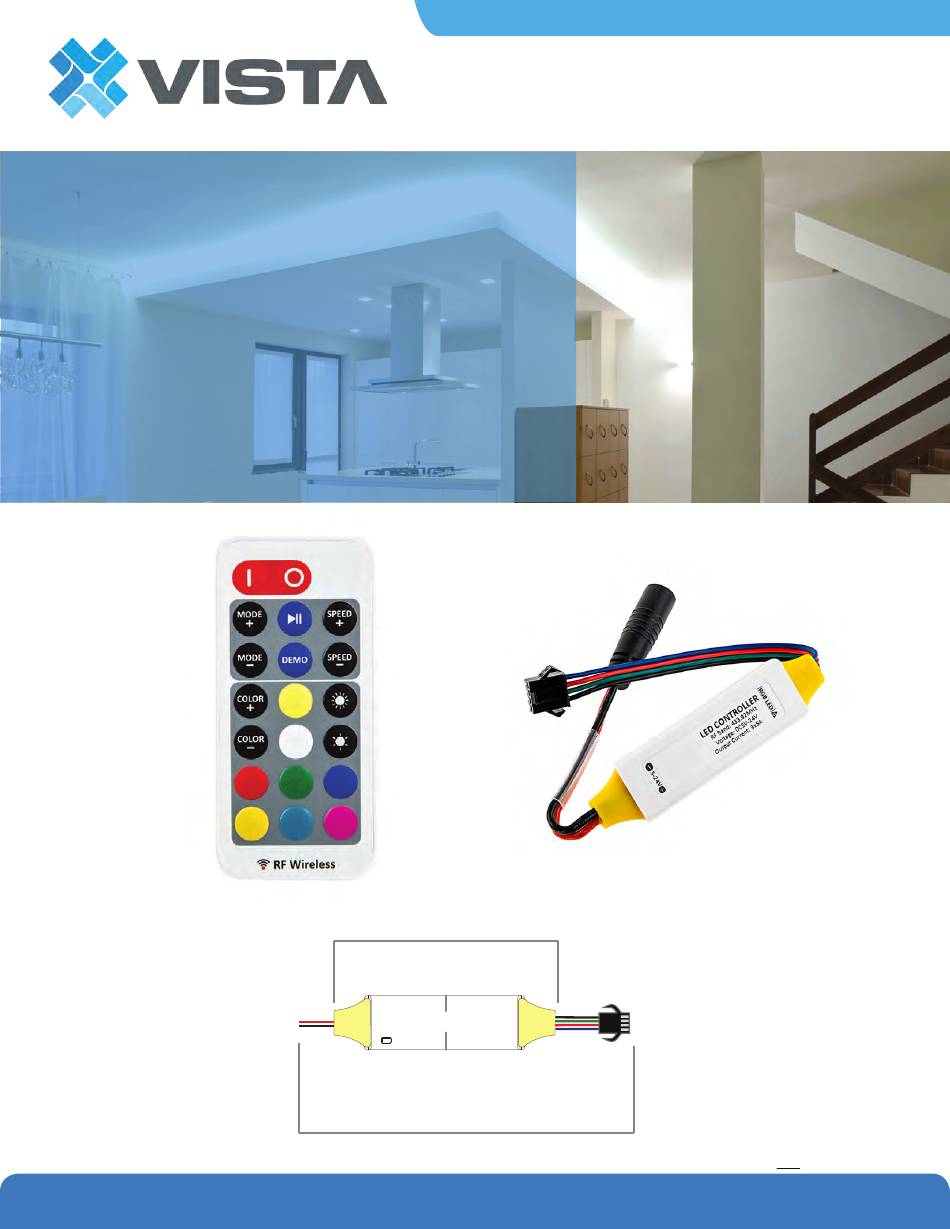

RGB CONTROLLER
• RGB LED controller
•
Wireless RF remote with dynamic color-changing modes
• 3 channels / 5 amps per channel
•
Suitable for mobile applications
• IP 68
•
Input and output voltage: 5-24Vdc
•
Operating temperature: -30 to 80 °C
•
Radio frequency: 433.92 MHz
FCC, RoHS compliant
•
1
To power
supply
(1 ZONE)
1
2
6
3.4"
.83"
11.64"
P: (574) 264-0711 | F: (574) 264-4174 | vistamfg.com
9
3
4
5
7
8
To LED
strip
Vista Mfg., Inc.
53345 Columbia Dr
Elkhart, IN 46514
Advertisement
Table of Contents
Summary of Contents for Vista 480629
- Page 1 Vista Mfg., Inc. 53345 Columbia Dr Elkhart, IN 46514 RGB CONTROLLER (1 ZONE) • RGB LED controller • Wireless RF remote with dynamic color-changing modes • 3 channels / 5 amps per channel • Suitable for mobile applications • IP 68 •...
- Page 2 Installation and Function Instructions RGB LED Controller with Wireless RF Remote Model 480629 Dynamic Mode 43 Modes Static Color 30 Colors Parts Included PWM Grade 256 Levels Brightness Grade 5 Levels Speed Grade 10 Levels 1 - LED Controller 1 - CR2025 3V Battery...
