Summary of Contents for SGB Lahmeyer-Compactstation NDV 400

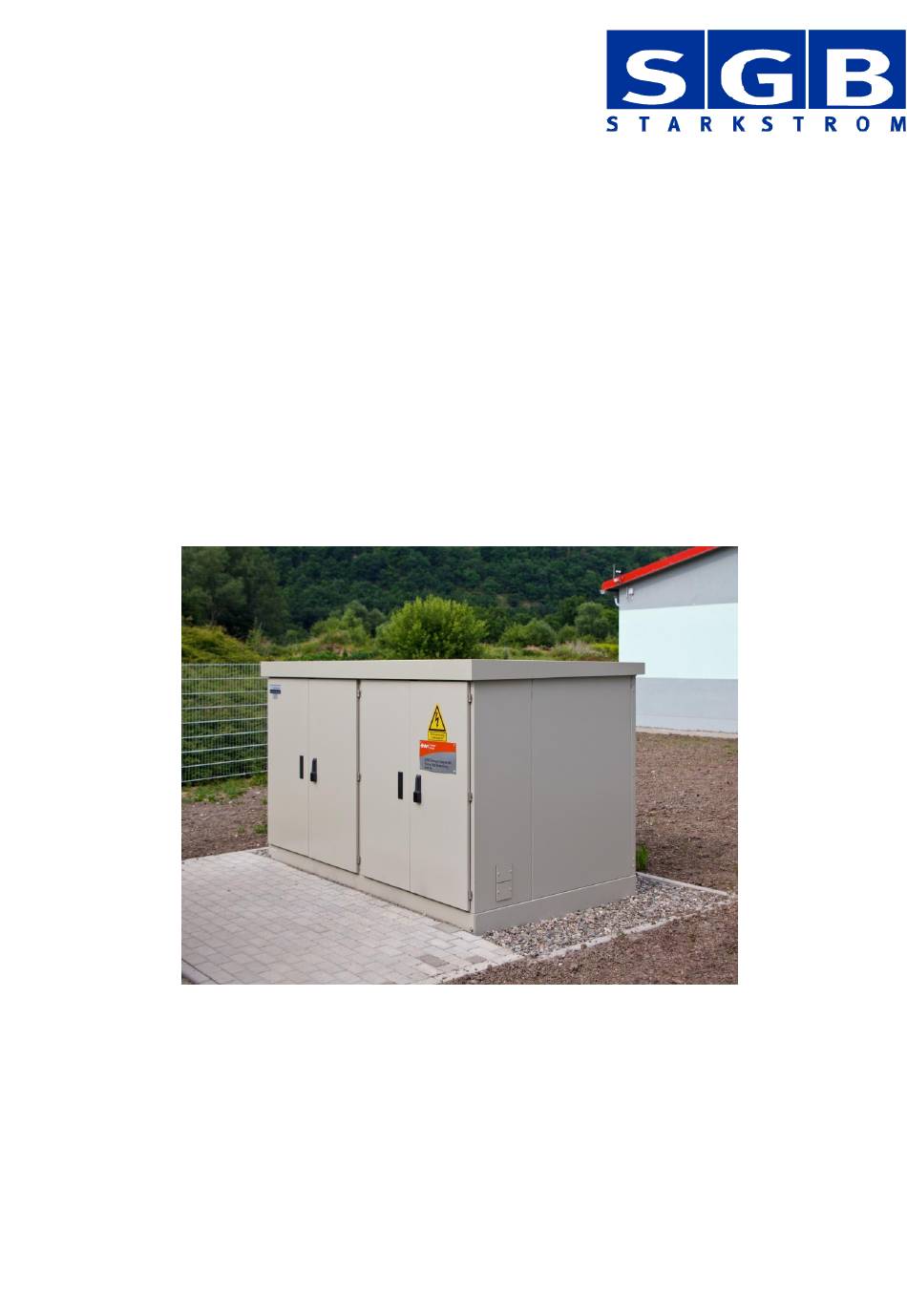

- Page 1 Technical documentation and instruction manual ® Lahmeyer - Compactstation Type NDV 400 / 401 Drawing-Nr.: 0152J 77.1 SGB Neumark Ohmstr. 1 08496 Neumark State: 09/2010 Technical changes reserved!
-
Page 2: Table Of Contents
Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 Content Use and technical determinations Construction VDE-stipulations, IEC-standards Station housing Construction Material and surface treatment Connection elements Doors, locking Kind of protection Lifting Grounding Lighting LV-switchgear On-load switchgear Requirements of transformers Transformer Transformer room... -
Page 3: Use And Technical Determinations
Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 Use and technical determinations The substation type NDV400/401 is used as network and customer substation and it is examined by internal light arc IAC AB 20 kA, 1 s. The substation meets the following technical rules: DIN 31000/DIN VDE 1000 General guiding principles responsible to security of technical products DIN VDE 0101... -
Page 4: Station Housing
Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 Station housing Temperature class = 15 K ® The substation, type NDV400/401 is, like all Lahmeyer-Compactstations , a plant ready and unit verified installation. It contains a medium voltage, a transformer and a low voltage room. After connecting the MV and LV cables the substation is ready for operation. -
Page 5: Kind Of Protection
L X W X H = 1250 X 900 X 1650 mm, in hermetic verion with isolated ports: - high performance HV fuse field for 2 cables fabrication SGB 12/24 kV - 8DJ20 2 K + 1TSS fabrication Siemens... -
Page 6: Transformer Room
Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 Transformer room - transformers in hermetic version with isolated terminals =< 630 kVA - transformers with porcelain distributions, max. dimensions L x W x H = 1250 x 900 x 1650 mm Special transformer until 800 kVA 24 kV They are layed in the foundation sump and fixed there, unscrewed. -
Page 7: Low Voltage Distribution
Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 Low voltage distribution 5.1.1 Input bar Automatic circuit breaker 1600 A On-load fuse switch disconnector 1600 A LV HRC-fuse on-load switch bar according to DIN 43 623 size 3 with: reinforced Cu bars and contacts as well as high temperature resistant isolation material at the switch bar... -
Page 8: Grounding Gear
Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 Construction with LV counter A LV counter can be realised when waiving of four output bars, with exemplified current transformers and a counter locker size 1. The NDV 401 is deliverable with a counter closeet room backwards. The LV room is completely available Grounding dear The central grounding rail is located at the LV room. -
Page 9: Technical Documents
Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 Technical documents Steel sump concrete sump - Measurement drawing NDV400 292291.5 0152D92 - Measurement drawing NDV400 292292.2 - Measurement drawing NDV401 292293.0 - Measurement drawing NDV401 292295.4 - Excavation 283788.4 0152D94 - Lifting plan... - Page 10 Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 Confirmation according to §5 par.4 of the accident prevention regulation „Elektrische Anlagen und Betriebsmittel“ (BGV A3) (electrical installations and means of production) FROM : Sächsisch – Bayerische Starkstrom-Gerätebau GmbH Ohmstraße 1 08496 NEUMARK It is confirmed that the electrical installation / the electrical mean of production...
- Page 11 Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 State: 09/2010 Technical changes reserved!
- Page 12 Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 State: 09/2010 Technical changes reserved!
- Page 13 Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 State: 09/2010 Technical changes reserved!
- Page 14 Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 State: 09/2010 Technical changes reserved!
- Page 15 Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 State: 09/2010 Technical changes reserved!
- Page 16 Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 State: 09/2010 Technical changes reserved!
- Page 17 Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 State: 09/2010 Technical changes reserved!
- Page 18 Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 State: 09/2010 Technical changes reserved!
- Page 19 Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 State: 09/2010 Technical changes reserved!
- Page 20 Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 State: 09/2010 Technical changes reserved!
- Page 21 Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 State: 09/2010 Technical changes reserved!
- Page 22 Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 State: 09/2010 Technical changes reserved!
- Page 23 Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 State: 09/2010 Technical changes reserved!
- Page 24 Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 State: 09/2010 Technical changes reserved!
- Page 25 Technical documentation and instruction manual ® Lahmeyer-Compact-Station Type NDV400/401 ____________________________________________________________________________________________ Zeichnungs.-Nr.. 0152J77.0 State: 09/2010 Technical changes reserved!
