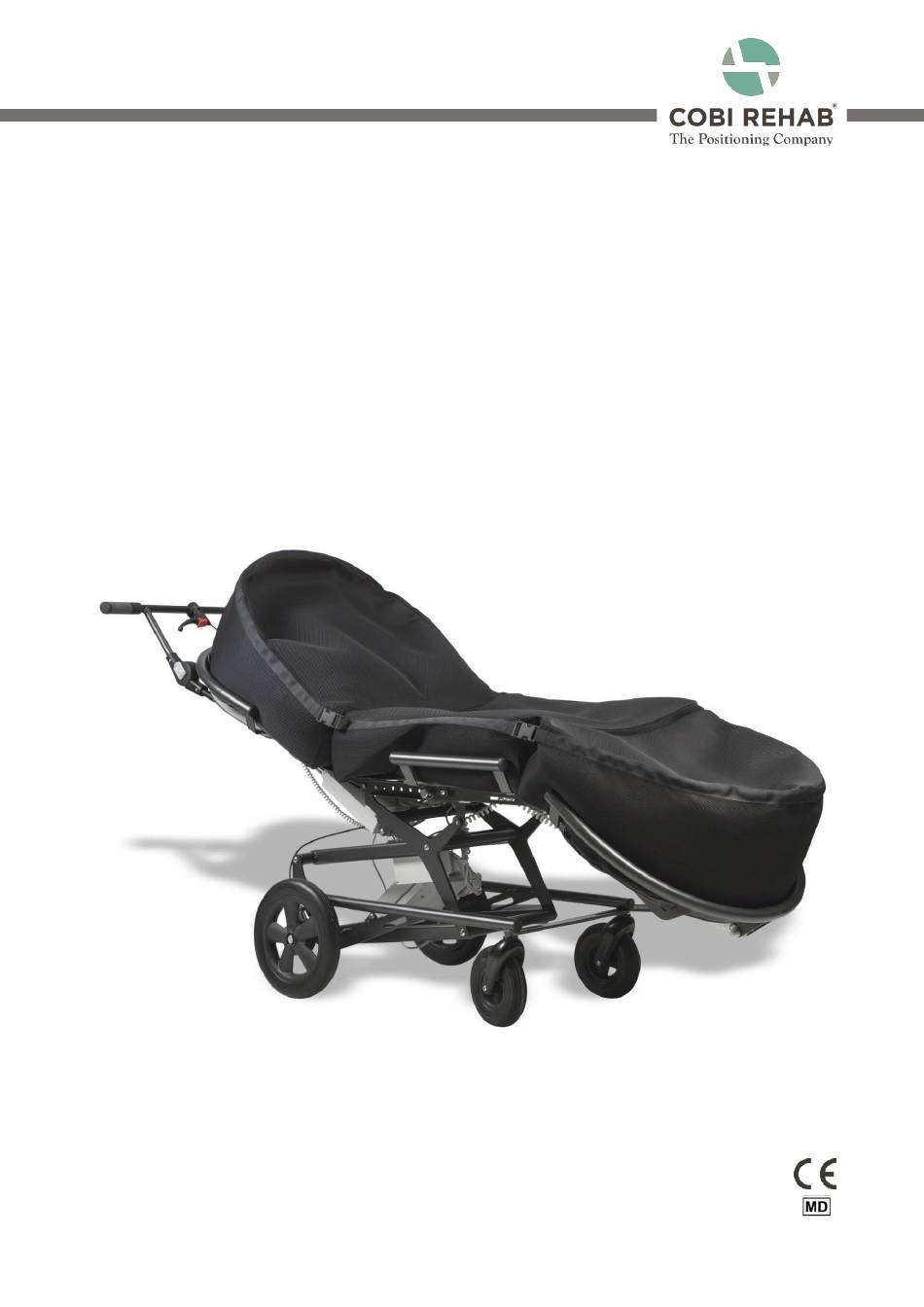

MobiBed
Mobile aid for the positioning of persons with reduced
mobility.
The MobiBed provides varied positioning options in rest and
respite situations.
The mobile aid is intended for indoor use.
For adults and children of maximum 90 kg.
Cobi Rehab and Cobi Rehab suppliers comply with the UN conventions
on child labour and forced labour as well as ILO 029, C132 and C182.
Advertisement
Table of Contents
Related Manuals for Cobi Rehab MobiBed
Summary of Contents for Cobi Rehab MobiBed
- Page 1 The mobile aid is intended for indoor use. For adults and children of maximum 90 kg. Cobi Rehab and Cobi Rehab suppliers comply with the UN conventions on child labour and forced labour as well as ILO 029, C132 and C182.
-
Page 2: Table Of Contents
2. Indications ..................................4 3. Specifications ................................6 4. Application ..................................7 5. Prior to using the mattress ............................. 10 6. Using the MobiBed ..............................12 7. Maintenance ................................17 8. Disposal ..................................17 9. Warranty ..................................17 10. Troubleshooting ............................... 18 11. -
Page 3: Safety
Always leave the MobiBed on the brake when not in use. Never park the MobiBed on a slope while it is occupied by a user. The brake does not work efficiently on smooth and steep surfaces. -
Page 4: Indications
Serial number Date of manufacture Manufacturer Medical device Body weight Consult instructions for use Label on the MobiBed is located on the left side (seen from the front) by the crossbar at the rear wheel. | 08-2020 User manual the MobiBed... - Page 5 The maximum user weight is 90 kg. 2.2 Contra indications Do not use the MobiBed for persons who are able Always consult a therapist before allocating a to move unaided. MobiBed to a user.
-
Page 6: Specifications
3. Specifications Max. length with handlebar and foot support fully extended 2150 mm Max. width of the MobiBed measured across cushion frame bar 720 mm Height of cushion frame measured from floor to top of bar Lowest position / Highest position... -
Page 7: Application
360° which makes the MobiBed easy to 4.3 One aid – many options The MobiBed has several adjustment options. It is flexible and easy to adjust to individual users. The MobiBed: • is adjustable in terms of the length of the seat and back and may be adjusted to fit both children and adults. - Page 8 Therefore, the support and comfort, the insert cushions must be purchase of a MobiBed includes an extra bag of at the same height in the frame. This means that filling for the elimination of height differences.
- Page 9 The brake is a drive brake. It is not sufficiently wheels but non-braking front wheels. This means strong to be able to brake and park the MobiBed that the front end of the MobiBed can pivot and on a sloping surface.
-
Page 10: Prior To Using The Mattress
Charge the temperature for 24 hours prior to use. battery for 10 hours by connecting it to the mains Prior to use, clean the MobiBed using a dry, soft power supply. Please refer to the guidance on cloth. - Page 11 • Operating time is five hours with full charge of a fully efficient battery. • Fixed routines for charging are recommended, e.g. set the MobiBed to charge at night. It is not possible to overcharge the battery. • Roll up the mains cable, when the MobiBed is in use.
-
Page 12: Using The Mobibed
6. Using the MobiBed 6.1 Hand control The elevating functions of the MobiBed are activated using the hand control. The functions of the buttons: Top: Adjustment of back Middle: Tilt of foot support Bottom: Adjustment of above-floor height When the hand control is not in use, hang it on the hook on the handlebar. - Page 13 6.4 The handlebar The height of the MobiBed handlebar may be adjusted in two ways. By using the hand control and by a step-by-step tilting of the handlebar itself. A grip (called a knee joint) is located on each side of the vertical control bar.
- Page 14 6.7 Installation of belts The MobiBed is not equipped with guard rails. Thus, always secure the user with one or two belts, depending on the movements of the user. Place the belt across the hip or have them cross each other, if two belts are used.
- Page 15 The user may be placed in either a supine or a lateral position. Always use a lift when transferring the user to and from the MobiBed. The MobiBed is not equipped with a guard rail. Shape the insert cushion before placing the user in Therefore, always use a belt when a user occupies the MobiBed.
- Page 16 LASAL cushions provide the best placed to create a nest. individual positioning options. MobiBed positioning cushions are filled with EPS pearls in a water-repellent and antibacterial polyester cover. The cushions are available with removable and washable covers. Wedge Cushion...
-
Page 17: Maintenance
7. Maintenance 7.1 Cleaning the MobiBed Clean the MobiBed using a soft cloth and water, Clean wheels and wheel suspensions if they have possibly adding a small amount of dish soap or become soiled. the like. Disinfection Raise the MobiBed to maximum height so that Disinfect the surfaces of the MobiBed using the tiltable cushion frame is at more than 45°... -
Page 18: Troubleshooting
Are all the plugs correctly Connect them correctly. connected in the control box? If the problem persists, contact Cobi Rehab. The brakes are not Is the cable intact? Adjust the brakes. See working. instructions on page 13. -
Page 19: Spare Parts List
11. Spare parts list Pos. Nr. Ordering No MobiBed Total 163020 Actuator LINAK LA40, used for lift, back tilt and leg tilt Qty. 3 163000 Control box LINAK CA40 incl. mains power cable Extra Qty. 1 163001 net cable Lithium battery Qty. -
Page 20: Warning Code Reference
Battery operating activated using the manual control. The system is functioning correctly. No LED lights Battery operation not activated using the manual control. Or the unit is not connected to the mains power supply | 08-2020 User manual the MobiBed... -
Page 21: Accessories
Gouda Wedge Cushion, including cover 30 cm 31,5 cm 4 cm Neck Cushion, including cover 36 cm 6,5 cm 10 cm Belt, size S 125 cm 10 cm Belt, size L 137 cm 10 cm | 08-2020 User manual the MobiBed... - Page 22 MANUFACTURER Cobi Rehab Fuglebækvej 1D DK-2770 Kastrup Denmark +45 7025 2522 cobirehab.com | 08-2020 User manual the MobiBed...
