Actual product size
H134 x W161 x L211cm
IMPORTANT - RETAIN FOR FUTURE REFERENCE
Produced in China for Next Retail Ltd.
382506-2014-V1

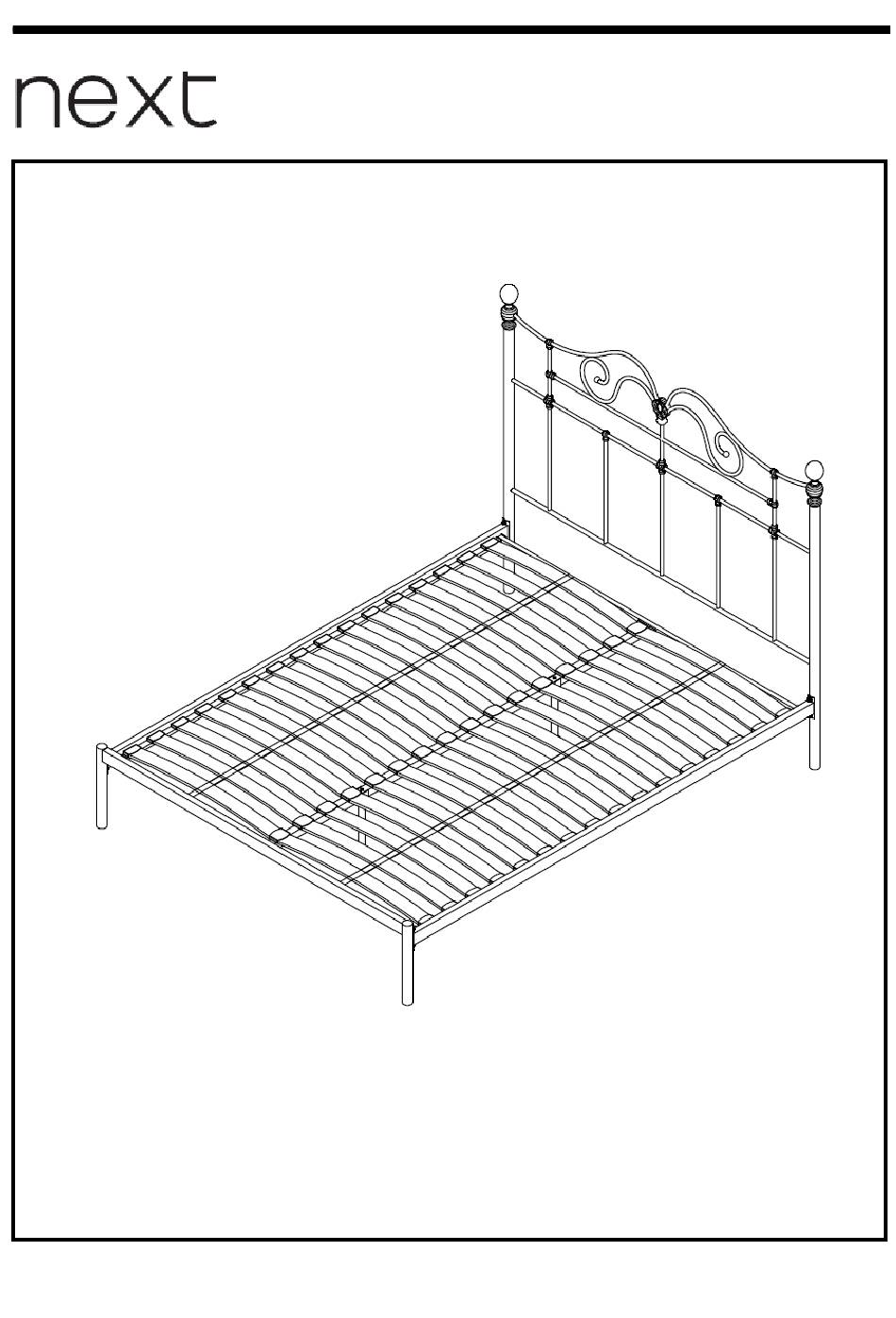

CANTERBURY BED – KING
382506
Assembly instructions
NEED HELP?
With: Assembly instructions
Missing or damaged parts
Call: 0333 777 8999
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Next CANTERBURY 382506
Summary of Contents for Next CANTERBURY 382506
- Page 1 CANTERBURY BED – KING 382506 Assembly instructions Actual product size H134 x W161 x L211cm NEED HELP? With: Assembly instructions Missing or damaged parts Call: 0333 777 8999 IMPORTANT - RETAIN FOR FUTURE REFERENCE Produced in China for Next Retail Ltd. 382506-2014-V1...
-
Page 2: Before You Start
Periodically check the condition of your bed slats and plastic locating caps to ensure they are in good condition and have not become loose. To view our full furniture range please visit www.next.co.uk Produced in China for Next Retail Ltd. 382506-2014-V1... -
Page 3: Getting To Know Your Product
6 x 75 cm 9 x 203 cm 3 x 237 cm 9 x 191 cm 6 x 10 cm 4 x 151 cm 6 x 8 cm 4 x 27 cm Produced in China for Next Retail Ltd. 382506-2014-V1... - Page 4 6 x 16 mm 6 x 42 mm 6 x 110 mm 8 x 30 mm 17 x 1.5 mm 12.5 x 2 mm Fixtures and fittings supplied (not to scale) Dimensions Visual Produced in China for Next Retail Ltd. 382506-2014-V1...
- Page 5 (3) with 8 x bolts (D), 8 x spring washers (F), 8 x plain washers(E) using allen key(H) to tighten. 12.5 x 2 mm F x 8 17 x 1.5mm E x 8 8 x 30 mm D x 8 Produced in China for Next Retail Ltd. 382506-2014-V1...
- Page 6 A x 4 Attach 2 x support rails (5) to 2 x side rails (3) with 4 x bolts (A), using allen key (G) to tighten. 6 x 16 mm A x 4 Produced in China for Next Retail Ltd. 382506-2014-V1...
- Page 7 Insert 30 x plastic end caps (7) onto both ends of each slat of the wooden slat assembly (9). Ensure the curve of the slats are facing upwards with the pins in the caps facing downwards. Produced in China for Next Retail Ltd. 382506-2014-V1...
- Page 8 Remove the mattress and lift the bed into its new position to avoid damaging the bed. Ensure the feet are at 90۫ to the floor before replacing the mattress. Produced in China for Next Retail Ltd. 382506-2014-V1...
- Page 9 CANTERBURY BED – DOUBLE 382506 Assembly instructions Produced in China for Next Retail Ltd. 382506-2014-V1...
