WARNING: For Outdoor Use Only. Installation and service must be performed by a
qualified installer, service agency or the gas supplier.
WARNING: If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury, or loss of life.
WARNING: Do not store or use gasoline, or other flammable vapors and liquids, in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
DANGER: FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, leave the area immediately.
After leaving the area, call your gas supplier or fire department.
Failure to follow these instructions could result in fire or explosion, which could cause
property damage, personal injury, or death.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Copyright 2020, T.I.
$10.00

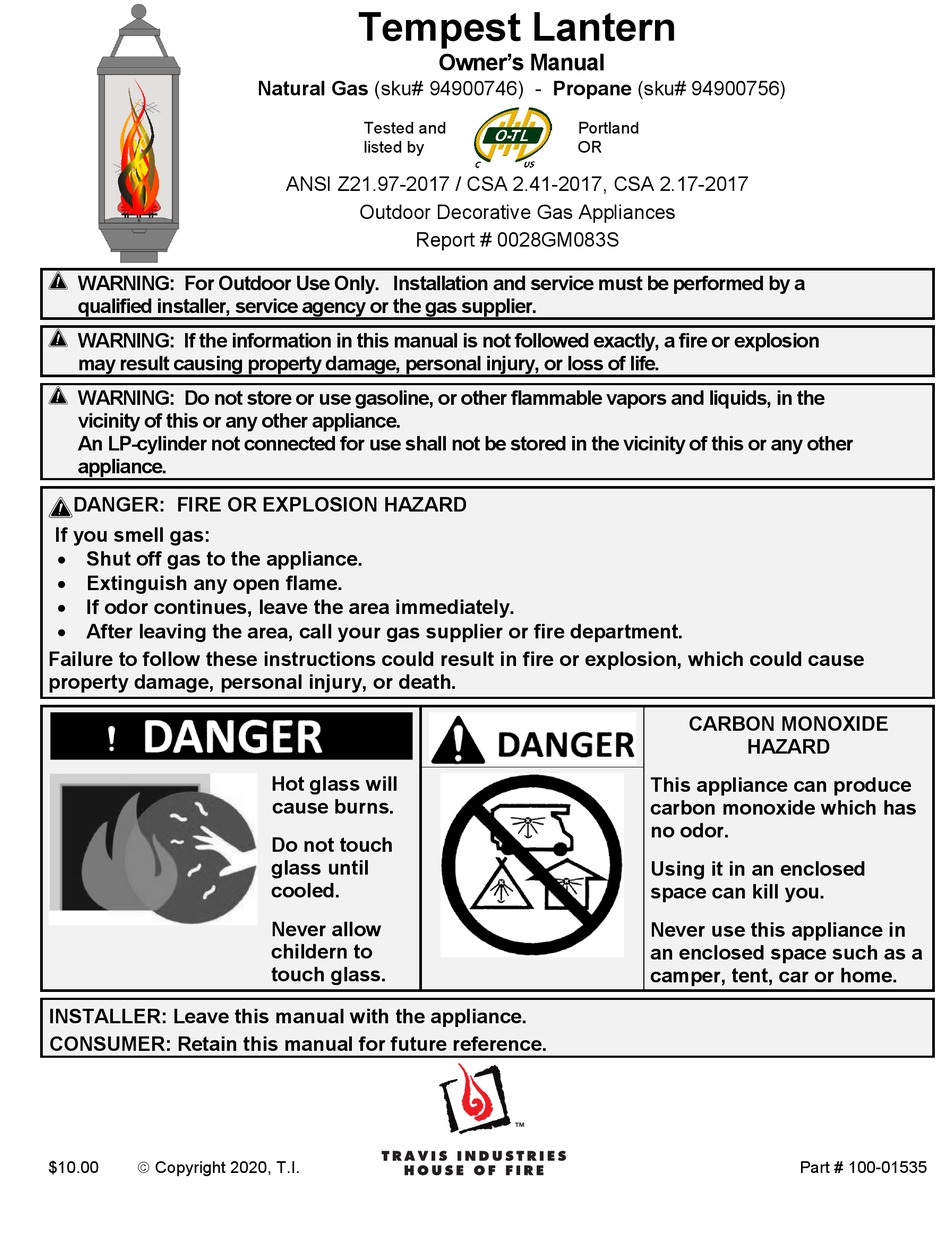

Tempest Lantern
Natural Gas (sku# 94900746) - Propane (sku# 94900756)
Tested and
listed by
ANSI Z21.97-2017 / CSA 2.41-2017, CSA 2.17-2017
Outdoor Decorative Gas Appliances
Report # 0028GM083S
Hot glass will
cause burns.
Do not touch
glass until
cooled.
Never allow
childern to
touch glass.
Owner's Manual
Portland
OR
CARBON MONOXIDE
HAZARD
This appliance can produce
carbon monoxide which has
no odor.
Using it in an enclosed
space can kill you.
Never use this appliance in
an enclosed space such as a
camper, tent, car or home.
Part # 100-01535
Advertisement
Table of Contents
Related Manuals for Travis Industries 94900746
Summary of Contents for Travis Industries 94900746
- Page 1 Tempest Lantern Owner’s Manual Natural Gas (sku# 94900746) - Propane (sku# 94900756) Tested and Portland listed by ANSI Z21.97-2017 / CSA 2.41-2017, CSA 2.17-2017 Outdoor Decorative Gas Appliances Report # 0028GM083S WARNING: For Outdoor Use Only. Installation and service must be performed by a qualified installer, service agency or the gas supplier.
-
Page 2: Overview
Mail your warranty card or visit traviswarranty.com to register your Tempest Lantern. If any service issues may arise, contact your dealer for details. © Travis Industries, Inc. 5/21/20 - 1535 Tempest Lantern Piezo... -
Page 3: Table Of Contents
Before You Begin ................13 Operating Instructions ............... 13 Maintaining Your Lantern ..............15 Winterizing the Lantern..............15 Replacement Parts ................16 Troubleshooting Table ............... 17 © Travis Industries, Inc. 5/21/20 - 1535 Tempest Lantern Piezo... - Page 4 Always follow the instructions in this manual. • Travis Industries, Inc. grants no warranty, implied or stated, for the installation or maintenance of your Lantern, and assumes no responsibility of any consequential damage(s).
-
Page 5: Gas Specifications
9-5/8" (245mm) (245mm) Base Cover 2-1/2" (64mm) 4" 1-1/4" (102mm) (34mm) Mounting Bracket NOTE: Side clearances are measured from the glass – Top clearances are measured from the glass frame. © Travis Industries, Inc. 5/21/20 - 1535 Tempest Lantern Piezo... -
Page 6: Installation Warnings
6. Bleed the gas line and start the Lantern. Leak test the gas line. Verify the Lantern works correctly and there are no gas leaks. Attach the control covers. 7. Give the manual to the home owner and explain the operation of the Lantern. © Travis Industries, Inc. 6/5/20 - 1535 Tempest Lantern Piezo... -
Page 7: Placement Requirements
Keep combustibles away from the shaded heat zone of the Lantern (see illustration below). 26" (660mm) 8" (203mm) 8" (203mm) Measured from Glass Surface 2-1/2" (64mm) © Travis Industries, Inc. 5/21/20 - 1535 Tempest Lantern Piezo... -
Page 8: Gas Line Requirements
The Piezo ignitor knob is shipped in the hardware pack that comes with the Lantern. The know installs by simply pushing it straight onto the ignitor shaft found in the control area of the lantern. © Travis Industries, Inc. 5/21/20 - 1535 Tempest Lantern Piezo... -
Page 9: Post Mount And Control Cover Installation
20 screws. (e) Attach the control cover to the Lantern with the two thumb screws. ! The safety label slides into place between the control cover and the Lantern body. © Travis Industries, Inc. 5/21/20 - 1535 Tempest Lantern Piezo... -
Page 10: Lantern Assembly
(e.g. paper towel). (c) Place the rain cap on the top of the Lantern glass assembly. The cap will friction fit to assembly. © Travis Industries, Inc. 5/21/20 - 1535 Tempest Lantern Piezo... -
Page 11: Post Or Pier Mounted Lantern (Optional)
Post Mount (included with torch) (included with torch) 3 Inch Diameter Post 3 Inch Diameter Post Gravel (or equivalent) Post Base (separate kit) Deck Surface Line (or equivalent) Line Concrete Footing © Travis Industries, Inc. 5/21/20 - 1535 Tempest Lantern Piezo... -
Page 12: Wall Mounted Lantern (Optional)
The tempest Lantern may be mounted to an external wall an optional wall mount kit. Make sure that all clearances are can be maintained in your application. See the wall mount kit for assembly and installation instructions. © Travis Industries, Inc. 5/21/20 - 1535 Tempest Lantern Piezo... -
Page 13: Before You Begin
Inspect the Lantern, burner, and supply lines for any damage prior to operation. The burner must be replaced prior to the appliance being put into operation if it is evident that the burner is damaged. Use only Travis Industries replacement burners. It may be difficult to see the burner operating in direct sunlight. - Page 14 Turning the Lantern Off 1. Push valve control in and turn clockwise to the OFF position. Note – if excessive wind or rain extinguishes the flame the safety control automatically turns gas off. © Travis Industries, Inc. 5/21/20 - 1535 Tempest Lantern Piezo...
-
Page 15: Maintaining Your Lantern
Lantern. This will insure the Lantern is not accidentally turned on or started with debris or snow inside the Lantern. WARNING: Do not cover the Lantern. A cover could combust if it is in place when the Lantern is turned on, creating a severe safety hazard. © Travis Industries, Inc. 5/21/20 - 1535 Tempest Lantern Piezo... -
Page 16: Replacement Parts
Orifice, Burner - #50 250-00753 Glass 250-01251 Pilot Electrode S.I.T. Pilot 93006523 Piezo Knob, Black 250-01255 Thermo-Couple - S.I.T. Pilot 250-04425 Replacement parts can be obtained from your Tempest Lantern retailer (see www.tempesttorch.com). © Travis Industries, Inc. 5/21/20 - 1535 Tempest Lantern Piezo... -
Page 17: Troubleshooting Table
Lantern makes Clicking THIS IS NORMAL Glass is moving inside the glass frame and the stainless steel parts are expanding and Sounds contracting with heat © Travis Industries, Inc. 5/21/20 - 1535 Tempest Lantern Piezo... - Page 18 2. Travis Industries has the option of either repairing or replacing the defective component. 3. If your dealer is unable to repair your appliance's defect during the warranty period, they will process a warranty claim through TRAVIS INDUSTRIES, INC. The dealer will require you to supply a copy of your receipt showing the date of the appliance's purchase and the serial number on your appliance.
- Page 19 Index © Travis Industries, Inc. 5/21/20 - 1535 Tempest Lantern Piezo...
- Page 20 Listing Details .................................... 2 LP and NG Configuration ................................... 8 Maintaining Your Lantern ................................ 15 Operating Instructions .................................. 13 Order of Installation .................................. 6 Overview ...................................... 2 Packing List ....................................... 6 Piezo Ignitor Knob ..................................... 8 Placement Requirements ................................. 7 Post Mount and Control Cover Installation ............................ 9 Post or Pier Mounted Lantern ................................ 11 Registration .................................... 2 Replacement Parts .................................. 16 Troubleshooting Table .................................. 17 Turning the Lantern Off .................................. 14 Wall Mounted Lantern .................................. 12 Winterizing the Lantern .................................. 15 © Travis Industries, Inc. 5/21/20 - 1535 Tempest Lantern Piezo...
